GT25 • DIN Length ANSI Shank • Form C Semi-Bottoming Entry Taper • Through Coolant • Fractional • Roll Form Taps • Steel and Stainless Steel

Victory™ • GT25 • Form C Semi-Bottoming Entry Taper • DIN Length ANSI Shank

Material Number5945037

ISO Catalog IDGT255009ANSI Catalog IDGT255009

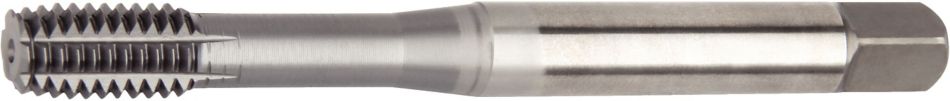

GT25 Forming Tap IN Tapping - 5945037 - WIDIA
GT25 Forming Tap IN Tapping - 5945037 - WIDIA
GT25 Forming Tap IN Tapping - 5945037 - WIDIA
Open expanded view
GT25 Forming Tap IN Tapping - 5945037 - WIDIA
GT25 Forming Tap IN Tapping - 5945037 - WIDIA
Generic representation
List Price
$94.70/each
Discount
Your Price
/each
In StockThis item is no longer availableLonger Delivery
Material Pricing Group
Contact our sales team to discover all of your pricing options
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
This item is no longer available
  • P Steel
  • M Stainless Steel
  • Tapping: Through HoleTapping: Through Hole
  • Tapping: Blind HoleTapping: Blind Hole
  • Through Coolant: Axial: TappingThrough Coolant: Axial: Tapping
  • 3850938509
  • HSS-E-PMHSS-E-PM
  • Manufacturer’s Specs: UNFManufacturer’s Specs: UNF
  • Manufacturer’s Specs: UNCManufacturer’s Specs: UNC
  • DIN Number ANSIDIN Number ANSI
{{cadTool}} format is not available

Sending to {{cadTool}} in progress...

Downloaded file will be available after import in the {{cadTool}} tool library.

Drawings for 5945037
Metric
Inch
Material Number5945037
ISO Catalog IDGT255009
ANSI Catalog IDGT255009
GradeWU32MG
[D1-TDZ] Thread Diameter Size3/8 - 16
[L] Overall Length 100 mm
[L] Overall Length 3.94 in
[L3] Thread Length 16 mm
[L3] Thread Length 0.63 in
[L2] Useable Length 39 mm
[L2] Useable Length 1.54 in
[D] Adapter / Shank / Bore Diameter9.677 mm
[D] Adapter / Shank / Bore Diameter0.381 in
Number of Lube Grooves6
Tap Pitch Diameter LimitH5
See all Product Variants

Workpiece Materials

  • Steel
  • Stainless Steel

Uses and application

  • Tapping: Through HoleTapping: Through Hole
  • Tapping: Blind HoleTapping: Blind Hole
  • Through Coolant: Axial: TappingThrough Coolant: Axial: Tapping
  • 3850938509
  • HSS-E-PMHSS-E-PM
  • Manufacturer’s Specs: UNFManufacturer’s Specs: UNF
  • Manufacturer’s Specs: UNCManufacturer’s Specs: UNC
  • DIN Number ANSIDIN Number ANSI

Grades

WU32MG

WU32MG

Coated HSS-E-PM, PVD heat- and wear-resistant high-vanadium cobalt powder metal. HSS substrate coated with wear-resistant TiCN base layer. Use in steel, cast iron, cast aluminum with silicon and super alloys.

Features and benefits

  • WU32MG TiCN for steel and stainless steel.
