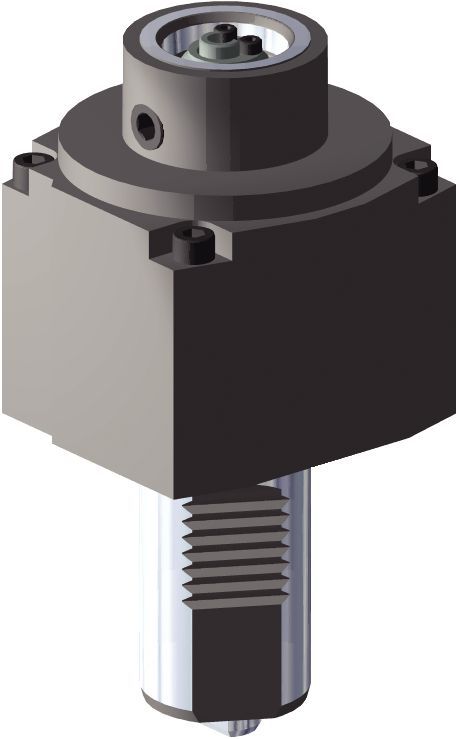

Turret Adapted Clamping Units

Mazak™ • Driven Tool Axial • KM™ • MMC 016

Features and benefits

Machine Series:

Quick Turn Nexus 200, 250 M, MY (12 Station Turret)

Quick Turn Nexus 200, 250 MS, MSY (12 Station Turret)

Super Quadrex 200, 250 M (12 Station Turret)

Super Quick Turn 200, 250, M, MY (12 Station Turret)

Super Quick Turn 200, 250, MS, MSY (12 Station Turret)

Product specifications

Product #	6401901
ISO Catalog Number	TACU016KM40DA60908102
ANSI Catalog Number	TACU016KM40DA60908102
[CSWS]System SizeWorkpieceSide	KM40
Machine Mount Code	016
[B2]Overall Width Metric	85
[D]Adapter/Shank/Bore Dia mm	40,0
[H2] Overall Height Metric	85
[L] Overall Length Metric	173
[L1]Gage Length 1 Metric	95
Torque Machine Spindle Nm	50
Coolant Pressure Bar	25
Coolant Pressure PSI	360
[CS1]Coolant Supply Exit Size	G 1/8
Max RPM	6000
Weight Kilograms	4.32
Torque Catalog Newton Meters	12-16
Torque Catalog Foot Pounds	9-12

Need help? Contact our customer service team.

Driven Tool Axial • KM™

Filter By:

Product #	ISO Catalog Number	ANSI Catalog Number	Grade	[CSWS]System SizeWorkpieceSide	Machine Mount Code	[B2]Overall Width Metric	[D]Adapter/Shank/Bore Dia mm	[H2] Overall Height Metric	[L] Overall Length Metric	[L1]Gage Length 1 Metric	Torque Machine Spindle Nm	Coolant Pressure Bar	Coolant Pressure PSI	[CS1]Coolant Supply Exit Size	Max RPM	Weight Kilograms	Torque Catalog Newton Meters	Torque Catalog Foot Pounds
6401890	TACU016KM40DA60908100	TACU016KM40DA60908100		KM40	016	85	40,0	85	173	95	50	100	1500	G 1/8	6000	4.43	12-16	9-12
6401901	TACU016KM40DA60908102	TACU016KM40DA60908102		KM40	016	85	40,0	85	173	95	50	25	360	G 1/8	6000	4.32	12-16	9-12

Product Usage

Uses and application

Uses and application

Through Coolant: Axial: Drilling
Shank - KM-TS ISO 26622
Shank - KM-TS ISO 26622

Spare Parts for Driven Tool Axial • KM™ • TACU016KM40DA60908100, TACU016KM40DA60908102

TORQUE WRENCH

CLAMPING UNIT SPARE PARTS PKG

CLAMPING UNIT SPARE PARTS PKG
