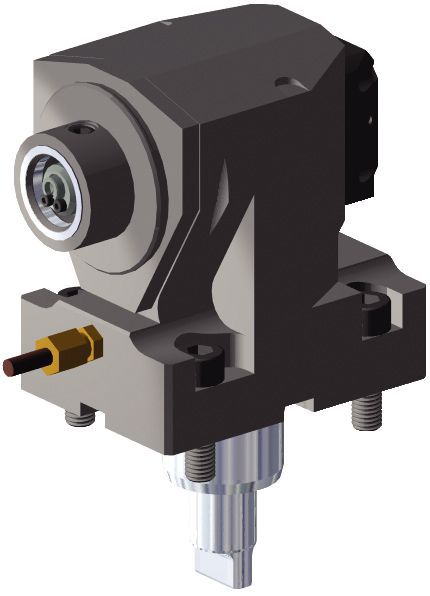

    Driven Tool Radial • KM™ • TACU001KM32DR60648443, TACU001KM32DR60648444, TACU001KM40DR60648439, TACU001KM40DR60648440

    DMG Mori • Driven Tool Radial • KM™ • MMC 001

    Material Number6201264

    ISO Catalog IDTACU001KM32DR60648444ANSI Catalog IDTACU001KM32DR60648444

    6201264 - Kennametal
    6201264 - Kennametal
    6201264 - Kennametal
    Open expanded view
    6201264 - Kennametal
    6201264 - Kennametal
    Generic representation
    List Price
    $6,937.90/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Through Coolant: Axial: DrillingThrough Coolant: Axial: Drilling
    • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
    • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
    This export format is not yet supported for this category.

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

    Drawings for 6201264
    Metric
    Inch
    Material Number6201264
    ISO Catalog IDTACU001KM32DR60648444
    ANSI Catalog IDTACU001KM32DR60648444
    [CSWS] System Size Workpiece SideKM32
    Machine Mount Code001
    [B2] Overall Width 132 mm
    [B2] Overall Width 5.1969 in
    [D] Adapter / Shank / Bore Diameter40 mm
    [D] Adapter / Shank / Bore Diameter1.5748 in
    [F] F Dimension 72.5 mm
    [F] F Dimension 2.8543 in
    [H2] Overall Height 78 mm
    [H2] Overall Height 3.0709 in
    [L] Overall Length 190 mm
    [L] Overall Length 7.48 in
    [L1] Gage Length85 mm
    [L1] Gage Length3.3465 in
    [LPR] Protruding Length 121 mm
    [LPR] Protruding Length 4.7638 in
    Torque Machine Spindle Nm32
    Coolant Pressure Bar70
    Coolant Pressure PSI1000
    Coolant DeliveryI/E
    [CS1] Coolant Supply Exit SizeG 1/8
    Max RPM12000
    Weight Kilograms6.79
    Torque Catalog Newton Meters8-11
    Torque Catalog Foot Pounds6-8
    See all Product Variants

    Uses and application

    • Through Coolant: Axial: DrillingThrough Coolant: Axial: Drilling
    • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
    • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622

    Features and benefits

    Machine Series:
    • DuraTurn 2050, 2550 MC
    • NL/NLX 1500-2500 (20 Station Turret)
    • NT 3100, 3150, 3200
    • NT/NTX 1000, 2000
    • NZ/NZX 1500-2000 (16 Station Turret)
