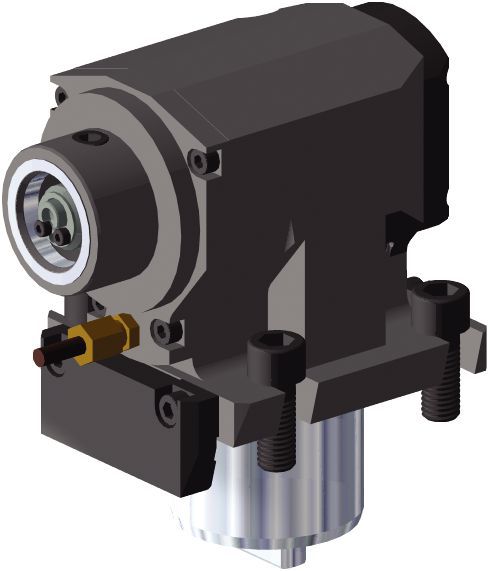

Turret Adapted Clamping Units

Okuma™ • Driven Tool Radial • KM™ • MMC 009

Features and benefits
Machine Series:
  • Genos L300 MW/MYW

  • LB/LU 2000-3000 EX M/MY/MW/MYW

  • MULTUS U3000, 4000 2S
Product specifications
Product # 6411160
ISO Catalog Number TACU009KM40DR60907352
ANSI Catalog Number TACU009KM40DR60907352
[CSWS]System SizeWorkpieceSide KM40
Machine Mount Code 009
[B2]Overall Width Metric 139,5
[D]Adapter/Shank/Bore Dia mm 60,0
[F] F Dimension Metric 86,50
[H2] Overall Height Metric 98
[L] Overall Length Metric 169
[L1]Gage Length 1 Metric 70
[LPR]Protruding Length Metric 107
Torque Machine Spindle Nm 50
Coolant Pressure Bar 100
Coolant Pressure PSI 1500
Coolant Delivery External
[CS1]Coolant Supply Exit Size G 1/8
Max RPM 6000
Weight Kilograms 7.64
Torque Catalog Newton Meters 12-16
Torque Catalog Foot Pounds 9-12
Need help? Contact our customer service team.
Contact us

Driven Tool Radial • KM™

Filter By:
Product # ISO Catalog Number ANSI Catalog Number Grade [CSWS]System SizeWorkpieceSide Machine Mount Code [B2]Overall Width Metric [D]Adapter/Shank/Bore Dia mm [F] F Dimension Metric [H2] Overall Height Metric [L] Overall Length Metric [L1]Gage Length 1 Metric [LPR]Protruding Length Metric Torque Machine Spindle Nm Coolant Pressure Bar Coolant Pressure PSI Coolant Delivery [CS1]Coolant Supply Exit Size Max RPM Weight Kilograms Torque Catalog Newton Meters Torque Catalog Foot Pounds
6411221 TACU009KM40DR60907354 TACU009KM40DR60907354 KM40 009 144 60,0 86,50 98 169 70 107 50 70 1000 Internal & External G 1/8 6000 7.63 12-16 9-12
6411160 TACU009KM40DR60907352 TACU009KM40DR60907352 KM40 009 139,5 60,0 86,50 98 169 70 107 50 100 1500 External G 1/8 6000 7.64 12-16 9-12

Product Usage

Uses and application

  • Through Coolant: Axial: Drilling
  • Shank - KM-TS ISO 26622
  • Shank - KM-TS ISO 26622

Spare Parts for Driven Tool Radial • KM™ • TACU009KM40DR60907352, TACU009KM40DR60907354

TORQUE WRENCH
TORQUE WRENCH
CLAMPING UNIT SPARE PARTS PKG
CLAMPING UNIT SPARE PARTS PKG
SHCS M12 1.75P X 30
SHCS M12 1.75P X 30
