      LSE 90°

      Internal Cutting Units • Laydown Threading

      Metric
      Inch
      SAP Material Number 6341531
      ISO Catalog Number PSC63S32GLSER16
      ANSI Catalog Number PSC63S32GLSER16

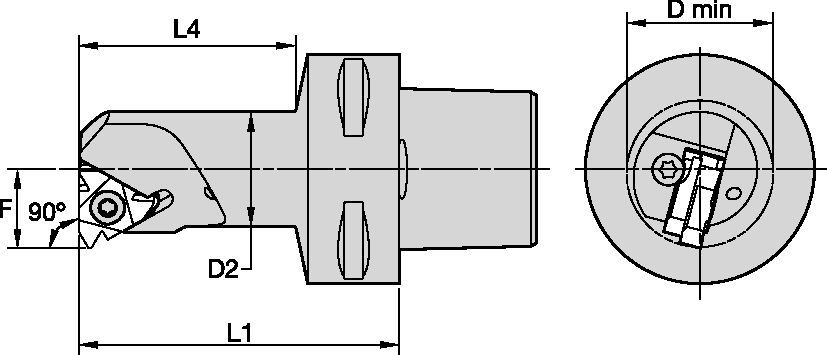

      [D2] Body Diameter 1 Workpiece Side 32.0000 mm
      [D2] Body Diameter 1 Workpiece Side 1.259 in
      [L1] Tool Length 90.0000 mm
      [L1] Tool Length 3.543 in
      [L4] Maximum Boring Depth 64.0000 mm
      [L4] Maximum Boring Depth 2.519 in
      [F] F Dimension 22.0000 mm
      [F] F Dimension .8661 in
      [DM] Minimum Bore Diameter 40.0000 mm
      [DM] Minimum Bore Diameter 1.574 in
      Gage Insert LT16NR
      Weight Kilograms 1.36
      See all Product Variants

      Uses and application

      • Shank - PSCShank - PSC
      • Manufacturer’s Specs: ISO 26623Manufacturer’s Specs: ISO 26623
      • Coolant: Through Coolant 80 bar MaximumCoolant: Through Coolant 80 bar Maximum
      • Coolant: Through Coolant 1200 psi MaximumCoolant: Through Coolant 1200 psi Maximum

      Workpiece Materials

      P Steel
      M Stainless Steel
      K Cast Iron
      N Non-Ferrous
      S High-Temp Alloys
      H Hardened Materials

      Spare Parts for LSE 90°

      Spare Part
        Laydown Threading Shim Laydown Threading Shim
        Laydown Threading Shim
        Spare Part
          PSC LT CLAMP PARTS KIT PSC LT CLAMP PARTS KIT
          PSC LT CLAMP PARTS KIT
