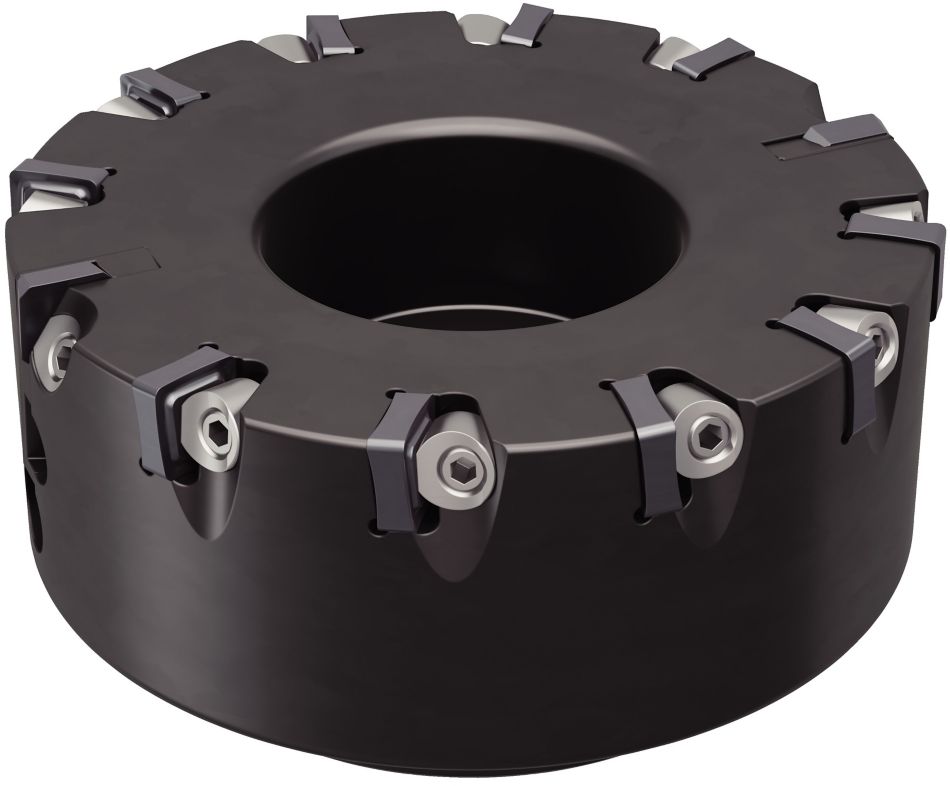

M8090-F • 89° • Shell Mills • Metric

Shell Mills • Cast Iron Finishing

Metric
Inch
SAP Material Number 6668000
ISO Catalog Number M8090FD080Z08W2S27SN12
ANSI Catalog Number M8090FD080Z08W2S27SN12
[D1] Effective Cutting Diameter 80 mm
[D1] Effective Cutting Diameter 3.149 in
[D1MAX] Maximum Cutting Diameter 80.381 mm
[D1MAX] Maximum Cutting Diameter 3.164 in
[D] Adapter / Shank / Bore Diameter 27 mm
[D] Adapter / Shank / Bore Diameter 1.063 in
[D6] Hub Diameter 75 mm
[D6] Hub Diameter 2.952 in
[L] Overall Length 50 mm
[L] Overall Length 1.968 in
[L1] Gage Length 50 mm
[L1] Gage Length 1.968 in
[LBX] Body Length Maximum 50 mm
[LBX] Body Length Maximum 1.968 in
[AP1MAX] 1st Maximum Cutting Depth 11.5 mm
[AP1MAX] 1st Maximum Cutting Depth .4528 in
Number of Inserts 8
Coolant Supply N
Weight Kilograms 1.49
See all Product Variants

Workpiece Materials

K Cast Iron
N Non-Ferrous

Machine Side

loading...

Workpiece Side

loading...

Spare Parts for M8090-F • 89° • Shell Mills • Metric

Spare Part
    Spare Part ANTI-SEIZE LUBRICANT Spare Part ANTI-SEIZE LUBRICANT
    Spare Part ANTI-SEIZE LUBRICANT
    Spare Part
      SHCS M12 1.75p x 30 SHCS M12 1.75p x 30
      SHCS M12 1.75p x 30
      Spare Part
        WEDGE M700/M400 K-9469 WEDGE M700/M400 K-9469
        WEDGE M700/M400 K-9469
        Spare Part
          CLAMPING WEDGE D=10 M6-LH (K-9776) CLAMPING WEDGE D=10 M6-LH (K-9776)
          CLAMPING WEDGE D=10 M6-LH (K-9776)
          Spare Part
            Spare Part 12148044900 T-FORM SW3X100 Spare Part 12148044900 T-FORM SW3X100
            Spare Part 12148044900 T-FORM SW3X100
            Spare Part
              CLAMP SCR M6 / M6 x 20 CLAMP SCR M6 / M6 x 20
              CLAMP SCR M6 / M6 x 20
