KM40TS™ Cutting Units

S-Clamping

Product specifications
Product # 3960005
ISO Catalog Number KM40TSSDJCR11
ANSI Catalog Number KM40TSSDJCR11
[L1] Tool Length Metric 40
[L1] Tool Length Inch 1.574
[F] F Dimension Metric 27
[F] F Dimension Inch 1.063
Catalog Gage Insert 1 DC..11
Weight Kilograms .24
Weight Pounds .54
Need help? Contact our customer service team.
Contact us

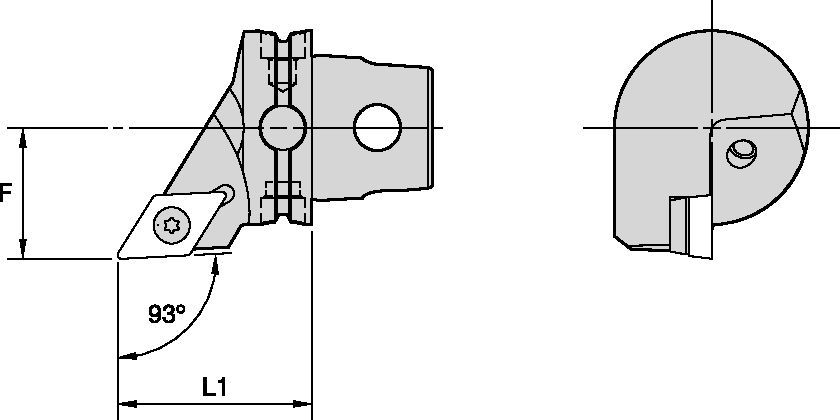

SDJC 93°

Filter By:
Product # ISO Catalog Number ANSI Catalog Number Grade [L1] Tool Length Metric [L1] Tool Length Inch [F] F Dimension Metric [F] F Dimension Inch Catalog Gage Insert 1 Weight Kilograms Weight Pounds
3960004 KM40TSSDJCL11 KM40TSSDJCL11 40 1.574 27 1.063 DC..11 .24 .54
3960005 KM40TSSDJCR11 KM40TSSDJCR11 40 1.574 27 1.063 DC..11 .24 .54
3960006 KM40TSSDJCL15 KM40TSSDJCL15 40 1.574 27 1.063 DC..15 .24 .52
3960007 KM40TSSDJCR15 KM40TSSDJCR15 40 1.574 27 1.063 DC..15 .24 .53

Product Usage

Uses and application

  • Shank - KM-TS ISO 26622
  • Shank - KM-TS ISO 26622
  • Coolant - Through Coolant 100 bar (1500 psi) Maximum
  • Coolant - Through Coolant 100 bar (1500 psi) Maximum

Spare Parts for SDJC 93°

CARBIDE SHIM SKDP343 K9
CARBIDE SHIM SKDP343 K9
SHIM SCREW M5X0.5/M3.5X0.6  SR
SHIM SCREW M5X0.5/M3.5X0.6 SR
INSERT SCR M3.5-0.6 X 12 T15
INSERT SCR M3.5-0.6 X 12 T15
