    Series 4A0R • Lists 4A0R 4A1R 4A4R

    Series 4A0R

    Material Number2843045

    ISO Catalog IDTC4A0R07002ANSI Catalog IDTC4A0R07002

    Series 4A0R • Lists 4A0R 4A1R 4A4R
    Series 4A0R • Lists 4A0R 4A1R 4A4R
    Series 4A0R • Lists 4A0R 4A1R 4A4R
    Open expanded view
    Series 4A0R • Lists 4A0R 4A1R 4A4R
    Series 4A0R • Lists 4A0R 4A1R 4A4R

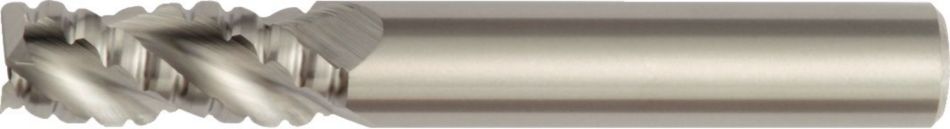

    Generic representation
    List Price
    $85.21/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • N Non-Ferrous
    • Ramping: BlankRamping: Blank
    • Slotting: Square EndSlotting: Square End
    • Corner Style: Corner ChamferCorner Style: Corner Chamfer
    • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
    • Helix Angle: 30°Helix Angle: 30°
    • 3857138571
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

    Drawings for 2843045
    Metric
    Inch
    Material Number2843045
    ISO Catalog IDTC4A0R07002
    ANSI Catalog IDTC4A0R07002
    GradeTICN-CT
    Adapter Style Machine SideStraight-Cylindrical
    [BCH] Corner Chamfer Width 0.6 mm
    [BCH] Corner Chamfer Width 0.024 in
    [Z] Number of Flutes3
    [D1] Effective Cutting Diameter6.35 mm
    [D1] Effective Cutting Diameter0.25 in
    [D] Adapter / Shank / Bore Diameter6.35 mm
    [D] Adapter / Shank / Bore Diameter0.25 in
    [AP1MAX] 1st Maximum Cutting Depth19.05 mm
    [AP1MAX] 1st Maximum Cutting Depth0.75 in
    [L] Overall Length 63.5 mm
    [L] Overall Length 2.5 in
    See all Product Variants

    Workpiece Materials

    • Non-Ferrous

    Uses and application

    • Ramping: BlankRamping: Blank
    • Slotting: Square EndSlotting: Square End
    • Corner Style: Corner ChamferCorner Style: Corner Chamfer
    • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
    • Helix Angle: 30°Helix Angle: 30°
    • 3857138571

    Features and benefits

    • Centre cutting
    • Chipbreaker pitch
    • Standard items listed and additional styles and coatings made-to-order

    Create Solution to calculate Feeds and Speeds
