    Series 4K03 • Lists 4K03 4K13 4K23 4K43 4K43 4K63 • Arcut™

    Series 4K03 • ArCut™

    Material Number2530406

    ISO Catalog ID4K2319077ANSI Catalog ID4K2319077

    Series 4K03 • Lists 4K03 4K13 4K23 4K43 4K43 4K63 • Arcut™
    Series 4K03 • Lists 4K03 4K13 4K23 4K43 4K43 4K63 • Arcut™
    Series 4K03 • Lists 4K03 4K13 4K23 4K43 4K43 4K63 • Arcut™
    Open expanded view
    Series 4K03 • Lists 4K03 4K13 4K23 4K43 4K43 4K63 • Arcut™
    Series 4K03 • Lists 4K03 4K13 4K23 4K43 4K43 4K63 • Arcut™
    Generic representation
    List Price
    $293.39/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • N Non-Ferrous
    • Ramping: BlankRamping: Blank
    • Slotting: Square EndSlotting: Square End
    • Corner Style: Corner RadiusCorner Style: Corner Radius
    • Corner Style: Square EndCorner Style: Square End
    • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
    • 3850438504
    • 3857138571
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

    Drawings for 2530406
    Metric
    Inch
    Material Number2530406
    ISO Catalog ID4K2319077
    ANSI Catalog ID4K2319077
    GradeUNCOATED
    Adapter Style Machine SideStraight-Cylindrical

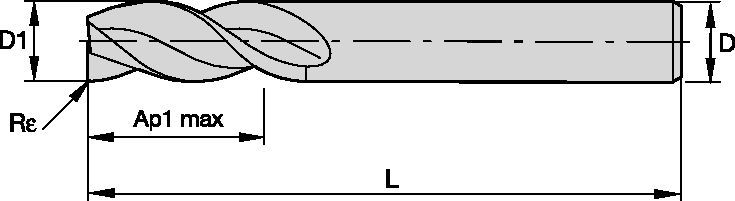

    [Z] Number of Flutes3
    [D1] Effective Cutting Diameter19.05 mm
    [D1] Effective Cutting Diameter0.75 in
    [D] Adapter / Shank / Bore Diameter19.05 mm
    [D] Adapter / Shank / Bore Diameter0.75 in
    [AP1MAX] 1st Maximum Cutting Depth101.6 mm
    [AP1MAX] 1st Maximum Cutting Depth4 in
    [L] Overall Length 158.75 mm
    [L] Overall Length 6.25 in
    See all Product Variants

    Workpiece Materials

    • Non-Ferrous

    Uses and application

    • Ramping: BlankRamping: Blank
    • Slotting: Square EndSlotting: Square End
    • Corner Style: Corner RadiusCorner Style: Corner Radius
    • Corner Style: Square EndCorner Style: Square End
    • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
    • 3850438504
    • 3857138571

    Features and benefits

    • Center cutting.
    • Maximum ramp angle = 10°.
    • Double rake flute form for chatter-free machining.

    Create Solution to calculate Feeds and Speeds
