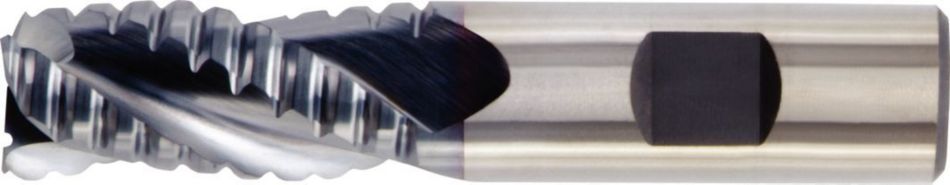

| SAP Material Number | 2860842 |
| ISO Catalog Number | 6A1R16006 |
| ANSI Catalog Number | 6A1R16006 |
| Coating | Uncoated |
| Adapter Style Machine Side | Weldon |
| [BCH] Corner Chamfer Width | 0.3500 |
| [BCH] Corner Chamfer Width | .0140 |
| [D1] Effective Cutting Diameter | 15.8750 |
| [D1] Effective Cutting Diameter | .6250 |
| [D] Adapter / Shank / Bore Diameter | 15.875 |
| [D] Adapter / Shank / Bore Diameter | .625 |
| [AP1MAX] 1st Maximum Cutting Depth | 63.5000 |
| [AP1MAX] 1st Maximum Cutting Depth | 2.500 |
| [L] Overall Length | 117.4750 |
| [L] Overall Length | 4.625 |
Side Milling/Shoulder Milling: Square End
38503
Corner Style: Corner Chamfer
38491
Slotting: Square End
Ramping: Blank
Tool Dimensions: Flute Configuration: 3 |  |  | |||||||||||||
| Side Milling (A) and Slotting (B) | Uncoated | TiCN | Recommended feed per tooth (IPT = inch/th) for side milling (A). For slotting (B), reduce IPT by 20%. | ||||||||||||
| A | B | Cutting Speed vc SFM | Cutting Speed vc SFM | D1 Diameter | |||||||||||
| frac. | 1/2 | 3/4 | 1 | 1 1/4 | |||||||||||
| Material Group | ap | ae | ap | min | max | min | max | dec. | .5000 | .7500 | 1.0000 | 1.2500 | |||
| N | 1 | 1.25 x D | 0.5 x D | 1 x D | 1050 | – | 1750 | 1500 | – | 2500 | IPT | .0055 | .0075 | .0085 | .0100 |
| 2 | 1.25 x D | 0.5 x D | 1 x D | 840 | – | 1400 | 1200 | – | 2000 | IPT | .0050 | .0068 | .0077 | .0090 | |
