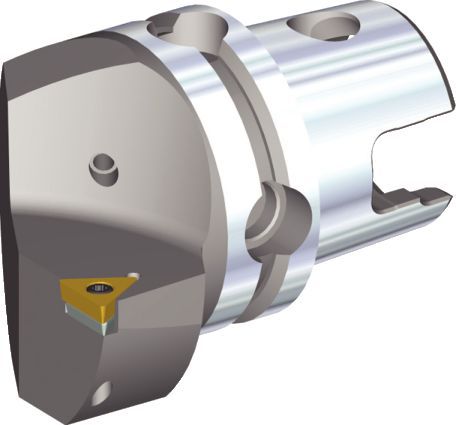

KM40TS™ Cutting Units

S-Clamping

Product specifications

Product #	3960036
ISO Catalog Number	KM40TSSTFCR16
ANSI Catalog Number	KM40TSSTFCR16
[L1] Tool Length Metric	40
[L1] Tool Length Inch	1.575
[F] F Dimension Metric	27
[F] F Dimension Inch	1.063
[DMIN]Min BoreDia_Ax GrvDia mm	50
[DMIN]Min BoreDia_Ax GrvDia In	1.969
Catalog Gage Insert 1	TC..16
Weight Kilograms	.33
Weight Pounds	.72

Need help? Contact our customer service team.

STFC 90°

Filter By:

Product #	ISO Catalog Number	ANSI Catalog Number	Grade	[L1] Tool Length Metric	[L1] Tool Length Inch	[F] F Dimension Metric	[F] F Dimension Inch	[DMIN]Min BoreDia_Ax GrvDia mm	[DMIN]Min BoreDia_Ax GrvDia In	Catalog Gage Insert 1	Weight Kilograms	Weight Pounds
3960036	KM40TSSTFCR16	KM40TSSTFCR16		40	1.575	27	1.063	50	1.969	TC..16	.33	.72
3960035	KM40TSSTFCL16	KM40TSSTFCL16		40	1.575	27	1.063	50	1.969	TC..16	.33	.73

Product Usage

Uses and application

Uses and application

Shank - KM-TS ISO 26622
Shank - KM-TS ISO 26622
Coolant - Through Coolant 100 bar (1500 psi) Maximum
Coolant - Through Coolant 100 bar (1500 psi) Maximum

Spare Parts for STFC 90°

CARBIDE SHIM

SHIM SCREW M5X0.5/M3.5X0.6 SR

SHIM SCREW M5X0.5/M3.5X0.6 SR

INSERT SCR M3.5-0.6 X 12 T15

INSERT SCR M3.5-0.6 X 12 T15
