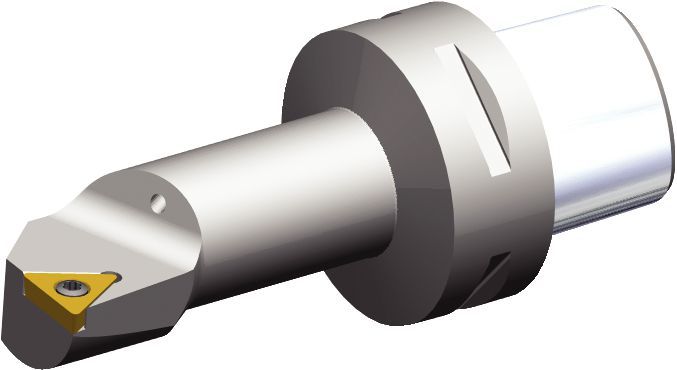

PSC50

Internal Cutting Units • S-Clamping

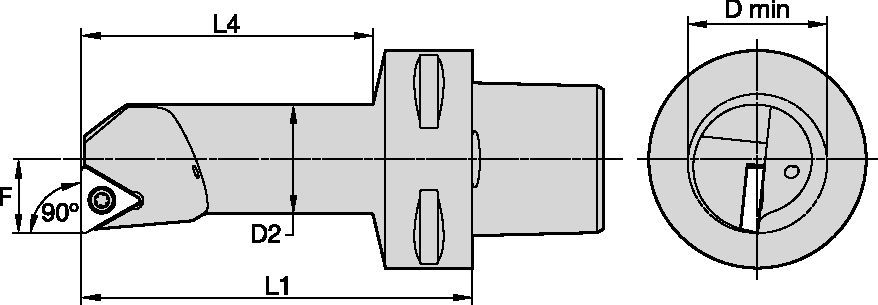

Product specifications

Product #	6330338
ISO Catalog Number	PSC50S16ESTFCR11
ANSI Catalog Number	PSC50S16ESTFCR11
[D2]Body Dia 1 Workpce Side mm	16
[D2]Body Dia 1 Workpce Side In	.6299
[L1] Tool Length Metric	70
[L1] Tool Length Inch	2.755
[L4]Maximum Boring Depth mm	46
[L4]Maximum Boring Depth Inch	1.811
[F] F Dimension Metric	11
[F] F Dimension Inch	.4331
[DMIN]Min BoreDia_Ax GrvDia mm	20
[DMIN]Min BoreDia_Ax GrvDia In	.7874
Catalog Gage Insert 1	TC..11
Weight Kilograms	.61

Need help? Contact our customer service team.

STFC 90°

Filter By:

Product #	ISO Catalog Number	ANSI Catalog Number	Grade	[D2]Body Dia 1 Workpce Side mm	[D2]Body Dia 1 Workpce Side In	[L1] Tool Length Metric	[L1] Tool Length Inch	[L4]Maximum Boring Depth mm	[L4]Maximum Boring Depth Inch	[F] F Dimension Metric	[F] F Dimension Inch	[DMIN]Min BoreDia_Ax GrvDia mm	[DMIN]Min BoreDia_Ax GrvDia In	Catalog Gage Insert 1	Weight Kilograms
6330338	PSC50S16ESTFCR11	PSC50S16ESTFCR11		16	.6299	70	2.755	46	1.811	11	.4331	20	.7874	TC..11	.61
6330339	PSC50S25GSTFCR16	PSC50S25GSTFCR16		25	.9843	90	3.543	67	2.637	17	.6693	32	1.259	TC..16	.78
6330340	PSC50S32JSTFCR16	PSC50S32JSTFCR16		32	1.259	110	4.330	88	3.464	22	.8661	40	1.574	TC..16	1.05

Product Usage

Uses and application

Uses and application

Shank - PSC
Manufacturer’s Specs: ISO 26623
Coolant: Through Coolant 80 bar Maximum
Coolant: Through Coolant 1200 psi Maximum

Spare Parts for STFC 90°

PSC S CLAMP 7S PARTS KIT

PSC S CLAMP 7S PARTS KIT
