    TG • Single-Angle Collet Chucks

    TG Single-Angle Collet Chucks

    Material Number1566225

    ISO Catalog IDKM63XMZTG05050YANSI Catalog IDKM63XMZTG05050Y

    TG • Single-Angle Collet Chucks
    TG • Single-Angle Collet Chucks
    TG • Single-Angle Collet Chucks
    Open expanded view
    TG • Single-Angle Collet Chucks
    TG • Single-Angle Collet Chucks
    Generic representation
    List Price
    $543.76/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Balanced-by-Design Balanced-by-Design
    • Shank - Cylindrical PlainShank - Cylindrical Plain
    • Shank - Cylindrical WeldonShank - Cylindrical Weldon
    • Shank - Cylindrical Whistle Notch™Shank - Cylindrical Whistle Notch™
    • Shank - KM-XMZShank - KM-XMZ
    • Shank - Cylindrical with SquareShank - Cylindrical with Square
    • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
    • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

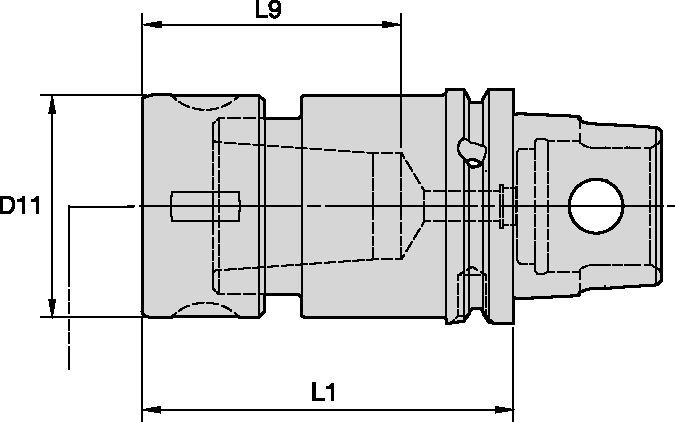

    Drawings for 1566225
    Metric
    Inch
    Material Number1566225
    ISO Catalog IDKM63XMZTG05050Y
    ANSI Catalog IDKM63XMZTG05050Y
    [CST] Catalog Collet SeriesTG50
    [D11] Lock Nut Diameter38 mm
    [D11] Lock Nut Diameter1.4961 in
    [L1] Gage Length50 mm
    [L1] Gage Length1.9685 in
    [L9] Clamping Length 42 mm
    [L9] Clamping Hole Length 1.6535 in
    Weight Kilograms0.74
    Weight Pounds1.63
    See all Product Variants

    Uses and application

    • Balanced-by-Design Balanced-by-Design
    • Shank - Cylindrical PlainShank - Cylindrical Plain
    • Shank - Cylindrical WeldonShank - Cylindrical Weldon
    • Shank - Cylindrical Whistle Notch™Shank - Cylindrical Whistle Notch™
    • Shank - KM-XMZShank - KM-XMZ
    • Shank - Cylindrical with SquareShank - Cylindrical with Square
    • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
    • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum

    Features and benefits

    • Tremendous grip (3:1 advantage).
