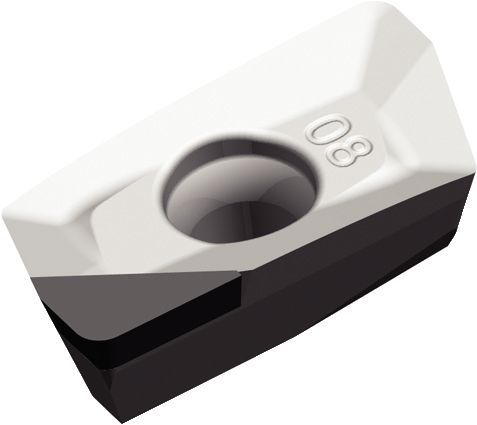

Inserts • XDCW-PCD
Inserts • XDCW-PCD
Inserts • XDCW-PCD
Inserts • XDCW-PCD

0°/90° Shoulder Mills • VSM11™

Inserts • XDCW-PCD

Metric
Inch
SAP Material Number 5415420
ISO Catalog Number XDCW110404PDFRPCD
ANSI Catalog Number XDCW1101RPCD
Grade WDN10U
Cutting Edges per Insert 1
[LI] Insert Length 13.4100
[LI] Insert Length .5280
[BS] Corner Facet Length 2.2200
[BS] Corner Facet Length .0880
[S] Insert Thickness 4.0000
[S] Insert Thickness .1570
[W] Insert Width 6.9000
[W] Insert Width .2720
[Rε] Corner Radius 0.4000
[Rε] Corner Radius .0160
Average Chip Thickness [HM] 0.0200
Average Chip Thickness [HM] .0008
See all Product Variants

Workpiece Material

N

Features and benefits

  • -PCD is the first choice for roughing and finishing of abrasive non-ferrous materials and aluminium alloys.

Grades

  • WDN10U
    N
