Turning
Profiling
Facing
Chamfering
GroovingDownloaded file will be available after import in the {{cadTool}} tool library.
| Material Number | 6766061 |

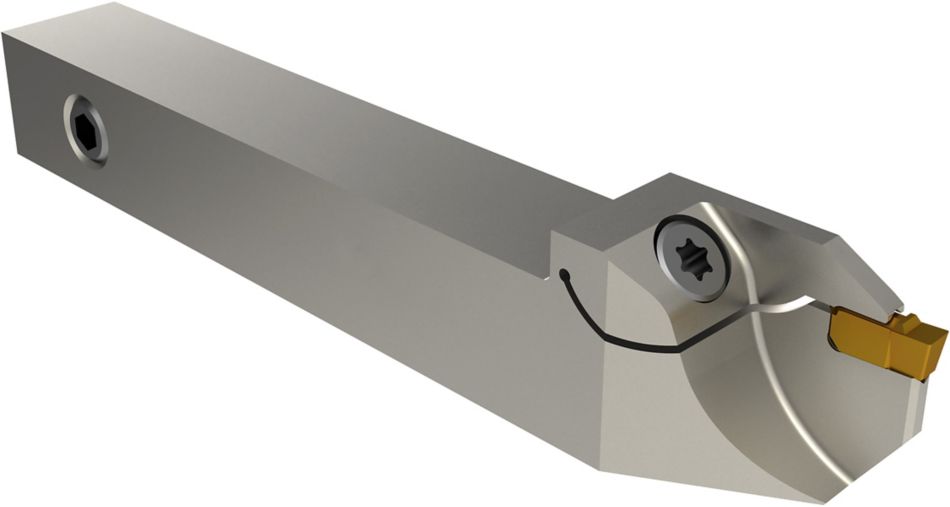

| ISO Catalog ID | WGCSCFR1616K0316C |
| ANSI Catalog ID | WGCSCFR1616K0316C |
| Insert Size | 3 |
| [CD] Cutting Depth | 16 mm |
| [CD] Cutting Depth | 0.63 in |
| [DMAX] Maximum Bore Diameter | 32 mm |
| [DMAX] Maximum Bore Diameter | 1.26 in |
| [H1] Cutting Height | 16 mm |
| [H1] Cutting Height | 0.63 in |
| [H] Shank Height | 16 mm |
| [H] Shank Height | 0.63 in |
| [B] Shank Width | 16 mm |
| [B] Shank Width | 0.63 in |
| [H2] Head Height | 17.6 mm |
| [H2] Head Height | 0.693 in |
| [L1] Tool Length | 125 mm |
| [L1] Tool Length | 4.921 in |
| [FS] Secondary F Dimension | 14.5 mm |
| [FS] Secondary F Dimension | 0.5709 in |
| [LH] Head Length | 27.5 mm |
| [LH] Head Length | 1.083 in |
| Clamp Screw ID Drive Size | T20 |
