    WNEM • Whistle Notch Adapters

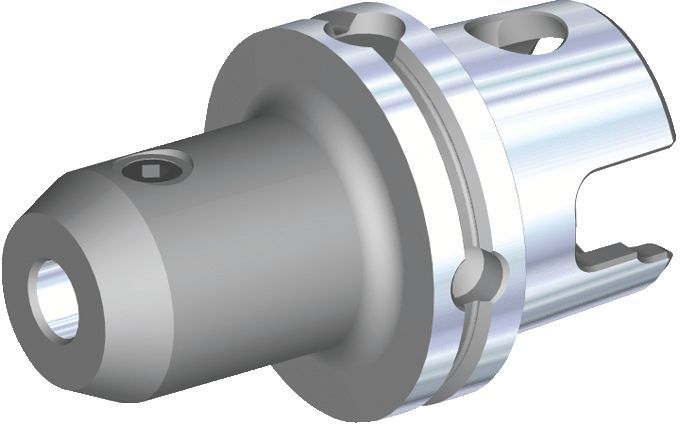

    Whistle Notch™/End Mill Combination Adapters

    Material Number3901285

    ISO Catalog IDKM80ATCWNEM25100MANSI Catalog IDKM80ATCWNEM25100M

    EM-KM-ATC-WN Tooling Systems - 3901285 - WIDIA
    EM-KM-ATC-WN Tooling Systems - 3901285 - WIDIA
    EM-KM-ATC-WN Tooling Systems - 3901285 - WIDIA
    Open expanded view
    EM-KM-ATC-WN Tooling Systems - 3901285 - WIDIA
    EM-KM-ATC-WN Tooling Systems - 3901285 - WIDIA
    Generic representation
    List Price
    $838.13/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Axial Adjustment - EndAxial Adjustment - End
    • Shank - Cylindrical WeldonShank - Cylindrical Weldon
    • Shank - Cylindrical Weldon 2 FlatShank - Cylindrical Weldon 2 Flat
    • Shank - Cylindrical Whistle Notch 2°Shank - Cylindrical Whistle Notch 2°
    • Shank - KM-ATCShank - KM-ATC
    • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
    • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

    Drawings for 3901285
    Metric
    Inch
    Material Number3901285
    ISO Catalog IDKM80ATCWNEM25100M
    ANSI Catalog IDKM80ATCWNEM25100M
    [D1] Adapter / Shank / Bore Diameter25 mm
    [D1] Adapter / Shank / Bore Diameter0.9843 in
    [D2] Body Diameter 1 Workpiece Side 64.5 mm
    [D2] Body Diameter 1 Workpiece Side 2.539 in
    [L1] Gage Length100 mm
    [L1] Gage Length3.937 in
    [L9] Clamping Length 50 mm
    [L9] Clamping Hole Length 1.969 in
    [V] Adjustment Range 10 mm
    [V] Adjustment Range 0.3937 in
    Clamp Screw ID Drive Size10 mm
    Stop Screw ID Drive Size6 mm
    Torque Newton Meters135
    Weight Kilograms2.76
