Indexable Milling • Face Milling ISO Inserts • TPKN
TPKN Inserts
Material Number5427377
ISO Catalog IDTPKN2204PDRANSI Catalog IDTPKN2204PDR
List Price
$25.30/each
Discount
Your Price
/each
In StockThis item is no longer availableLonger Delivery
Material Pricing Group
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
- N Non-Ferrous
- S High-Temp Alloys
Sending to {{cadTool}} in progress...
Downloaded file will be available after import in the {{cadTool}} tool library.
MetricInch
| Material Number | 5427377 |
| ISO Catalog ID | TPKN2204PDR |
| ANSI Catalog ID | TPKN2204PDR |
| Grade | WK15CM |
| Cutting Edges per Insert | 3 |

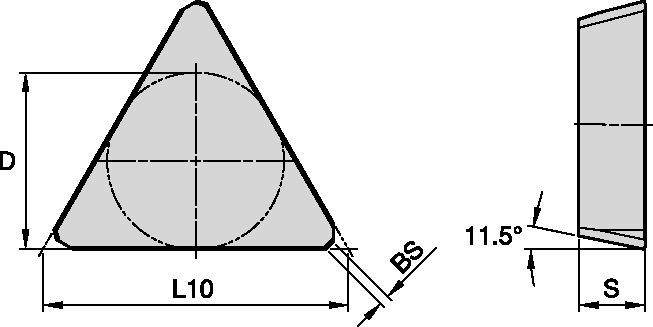

| [D] Insert IC Size | 12.7 mm |
| [D] Insert IC Size | 0.5 in |
| [L10] Insert Cutting Edge Length | 21.949 mm |
| [L10] Insert Cutting Edge Length | 0.8641 in |
| [S] Insert Thickness | 4.76 mm |
| [S] Insert Thickness | 0.1875 in |
| [BS] Corner Facet Length | 0.72 mm |
| [BS] Corner Facet Length | 0.0282 in |
| Average Chip Thickness [HM] | 0.18 mm |
| Average Chip Thickness [HM] | 0.0071 in |
Workpiece Materials
- Non-Ferrous
- High-Temp Alloys
