CPGT-3
Product Similar To:
CPGT-3
ISO/ANSI Carbide Inserts
Material Number6128260
ISO Catalog IDCPGT04T1043ANSI Catalog IDCPGT151213
List Price
$15.64/each
Discount
Your Price
/each
In StockThis item is no longer availableLonger Delivery
Material Pricing Group
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
Sending to {{cadTool}} in progress...
Downloaded file will be available after import in the {{cadTool}} tool library.
MetricInch

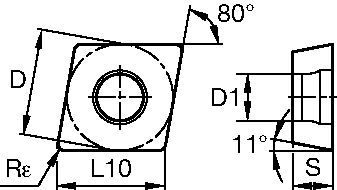

| Material Number | 6128260 |
| ISO Catalog ID | CPGT04T1043 |
| ANSI Catalog ID | CPGT151213 |
| Grade | WP35CT |
| [D] Insert IC Size | 4.75 mm |
| [D] Insert IC Size | 0.187 in |
| [L10] Insert Cutting Edge Length | 4.84 mm |
| [L10] Insert Cutting Edge Length | 0.1904 in |
| [S] Insert Thickness | 1.98 mm |
| [S] Insert Thickness | 0.0781 in |
| [Rε] Corner Radius | 0.4 mm |
| [Rε] Corner Radius | 0.016 in |
| [D1] Insert Hole Size | 2.135 mm |
| [D1] Insert Hole Size | 0.0841 in |
Grades
WP35CT
Coated carbide. MT-CVD/CVD — TiN-TiCN-Al2O3-TiOCN. Proven performance in roughing and heavy roughing operations on variety of steels and also stainless steel in wet or dry condition. Works equally well on surfaces with uneven stock. Interrupted, non-interrupted cuts.
Create Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
