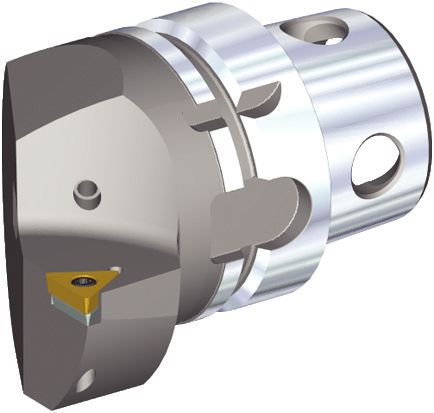

STFC 90°

Bridage S

Metric
Inch
Numéro de matériaux SAP 5552405
Réf. catalogue ISO KM4X63STFCL16
Réf. catalogue ANSI KM4X63STFCL16
[L1] Longueur d’outil 70 mm
[L1] Longueur d’outil 2.756 in
[F] Dimension F 43 mm
[F] Dimension F 1.693 in
[DM] Diamètre d’alésage minimum 86 mm
[DM] Diamètre d’alésage minimum 3.386 in
Plaquette étalon TC..16T308/TC..3252
Poids en kilogrammes 1.43
Poids Livres 3.15
Voir toutes les variantes de produits

Uses and application

  • Coolant — Through Coolant  100 bar (1500 psi)  MaximumCoolant — Through Coolant 100 bar (1500 psi) Maximum
  • Arrosage —  Arrosage interne  100 bar (1500 psi)  MaximumArrosage — Arrosage interne 100 bar (1500 psi) Maximum
  • Shank: KM4X™Shank: KM4X™
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
  • Queue —  KM-TS  ISO 26622Queue — KM-TS ISO 26622

Matériaux de pièce à usiner

P Acier
M Acier inoxydable
K Fonte
N Non ferreux
 S Alliages hautes températures
H Matériaux trempés
C Matériaux CFRP

Côté de la machine

loading...

Côté pièce à usiner

loading...

Pièces de rechange for STFC 90°

Spare Part
    PIECES DETACHEES PIECES DETACHEES
    PIECES DETACHEES
    Spare Part
      VIS ASSISE M5X0.5/M3 VIS ASSISE M5X0.5/M3
      VIS ASSISE M5X0.5/M3
      Spare Part
        VIS TORX M3.5X0.6 12-TX VIS TORX M3.5X0.6 12-TX
        VIS TORX M3.5X0.6 12-TX
        Spare Part
          CLE POUR BUSE D'ARROSAGE HSK 50A CLE POUR BUSE D'ARROSAGE HSK 50A
          CLE POUR BUSE D'ARROSAGE HSK 50A
          Spare Part
            KM4X63 COOLANT ASSEMBLY UNIT KM4X63 COOLANT ASSEMBLY UNIT
            KM4X63 COOLANT ASSEMBLY UNIT
