      CDJN-MN 93°

      Metric
      Inch
      Codice materiale SAP 3032544
      Codice catalogo ISO CDJNL2525M15MN7
      Codice catalogo ANSI CDJNL2525M15MN7
      Qualità WG

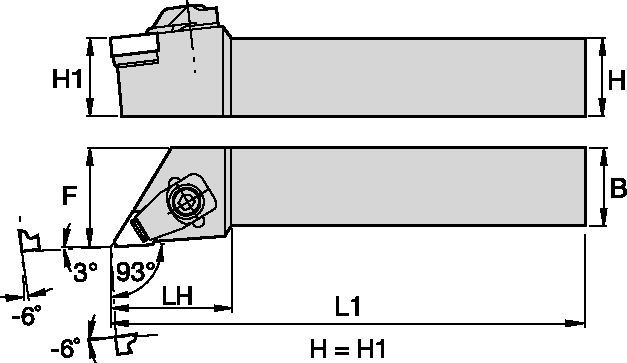

      [H] Altezza stelo 25.0000 mm
      [H] Altezza stelo .9843 in
      [B] Larghezza stelo 25.0000 mm
      [B] Larghezza stelo .9843 in
      [F] Dimensione F 32.0000 mm
      [F] Dimensione F 1.259 in
      [L1] Lunghezza utensile 150.0000 mm
      [L1] Lunghezza utensile 5.905 in
      [L2] Lunghezza testa 38.000 mm
      [L2] Lunghezza testa 1.496 in
      Inserto di riferimento DN.N150708
      Vite supporto - Dimensione chiave ID 2.5 mm
      Vite di bloccaggio - Dimensione chiave ID 4 mm
      See all Product Variants

      Uses and application

      • TurningTurning
      • ProfilingProfiling

      Parti di ricambio for CDJN-MN 93°

      Spare Part
        ACCESSORI UTENSILI ACCESSORI UTENSILI
        ACCESSORI UTENSILI
        Spare Part
          ACCESSORI UTENSILI ACCESSORI UTENSILI
          ACCESSORI UTENSILI
          Spare Part
            VITE VITE
            VITE
            Spare Part
              ELEMENTO DI BLOCCAGGIO ELEMENTO DI BLOCCAGGIO
              ELEMENTO DI BLOCCAGGIO
              Spare Part
                ELEMENTO DI BLOCCAGGIO ELEMENTO DI BLOCCAGGIO
                ELEMENTO DI BLOCCAGGIO
                Spare Part
                  SUPPORTO 55° SUPPORTO 55°
                  SUPPORTO 55°
