| SAP Material Number | 5697855 |
| ISO Catalog Number | DCKNL3225P12KC04 |
| ANSI Catalog Number | DCKNL3225P12KC04 |
| Grade | WG |

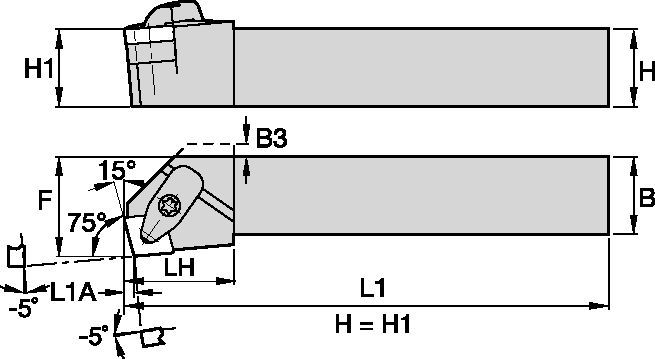

| [H] Shank Height | 32.0000 |
| [H] Shank Height | 1.260 |
| [B] Shank Width | 25.0000 |
| [B] Shank Width | .9840 |
| [F] F Dimension | 32.0000 |
| [F] F Dimension | 1.260 |
| [L1] Tool Length | 170.0000 |
| [L1] Tool Length | 6.693 |
| [LH] Head Length | 32.0000 |
| [LH] Head Length | 1.260 |
| [L1A] L1 A Dimension | 3.0900 |
| [L1A] L1 A Dimension | .1220 |
| Gage Insert | CN..120408 |
| Lock Pin ID Drive Size | 15 IP |
| Shim Screw ID Drive Size | 15 IP |
| Clamp Screw ID Drive Size | 15 IP |
Turning
Facing
