List price:
Discount: %
List price
$397.10 /each.
Your price::
Your price::
Replacement This item is not available
Replacement Product This item may be available through a distributor
      Contact us
      D-Clamping
      D-Clamping
      D-Clamping
      D-Clamping
      Scarica disegni CAD

      DDUN 93°

      D-Clamping

      Metric
      Inch
      SAP Material Number 5543454
      ISO Catalog Number KM4X63DDUNR15KC06
      ANSI Catalog Number KM4X63DDUNR15KC06

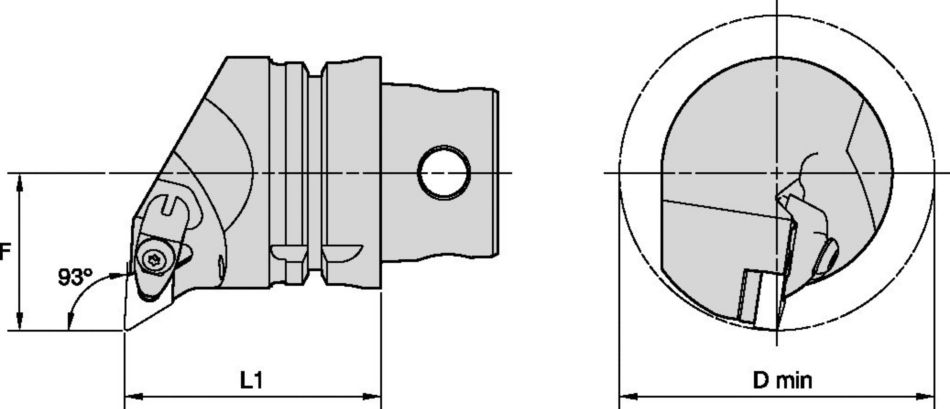

      [L1] Tool Length 70.0000
      [L1] Tool Length 2.756
      [F] F Dimension 43.0000
      [F] F Dimension 1.693
      [DM] Minimum Bore Diameter 86.0000
      [DM] Minimum Bore Diameter 3.386
      Gage Insert DN..150608/DN..442
      Weight Kilograms 1.41
      Weight Pounds 3.11
      See all Product Variants

      Uses and application

      • Shank: KM4X™Shank: KM4X™
      • Coolant — Through Coolant 100 bar (1500 psi) MaximumCoolant — Through Coolant 100 bar (1500 psi) Maximum
      • Refrigerante — Adduzione interna di refrigerante 100 bar (1500 psi) massimoRefrigerante — Adduzione interna di refrigerante 100 bar (1500 psi) massimo

      Workpiece Materials

      P Steel
      M Stainless Steel
      K Cast Iron
      N Non-Ferrous
      S High-Temp Alloys
      H Hardened Materials

      Parti di ricambio for DDUN 93°

      Spare Part
        SUPPORTO
        SUPPORTO
        Spare Part
          KM4X63 COOLANT ASSEMBLY UNIT
          KM4X63 COOLANT ASSEMBLY UNIT
          Spare Part
            ACCESSORI UTENSILI
            ACCESSORI UTENSILI
            Spare Part
              Slotted Spring Pin
              Slotted Spring Pin
              Spare Part
                SINGLE SCREW CLAMP HARDWARE CM234R
                SINGLE SCREW CLAMP HARDWARE CM234R
                Spare Part
                  VTE TORX IP15
                  VTE TORX IP15
