Frese a candela cilindriche • Medie • Sistema metrico

Download CAD Drawings

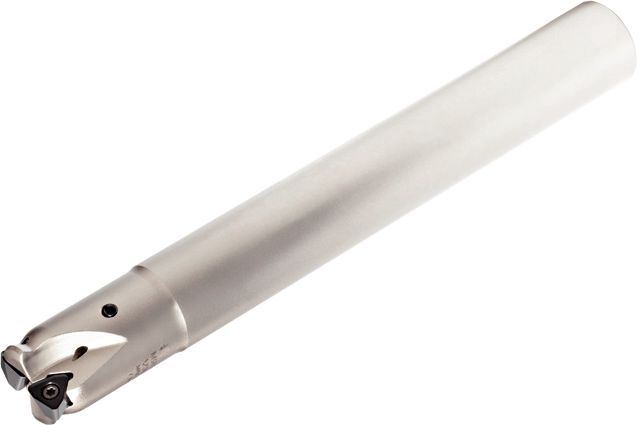

M370 • Stelo cilindrico • W008… • Sistema metrico

Name: M370 • Stelo cilindrico • W008… • Sistema metrico
SKU: 4056191

Frese a candela cilindriche • Medie • Sistema metrico

Metric

Inch

Codice materiale SAP	4056191
Codice catalogo ISO	M370D032Z04A32WO08L150
Codice catalogo ANSI	M370D032Z04A32WO08L150
[D1MAX] Diametro di taglio massimo	32.0000 mm
[D1MAX] Diametro di taglio massimo	1.260 in
[D1] Diametro di taglio effettivo	18.1000 mm
[D1] Diametro di taglio effettivo	.7100 in
[D] Dia adattatore / stelo / foro	32.0 mm
[D] Dia adattatore / stelo / foro	1.259 in
[L] Lunghezza complessiva	150.0000 mm
[L] Lunghezza complessiva	5.906 in
[LBX] Lunghezza massima del corpo	40.0000 mm
[LBX] Lunghezza massima del corpo	1.574 in
[AP1MAX] 1° profondità di taglio massima	1.2500 mm
[AP1MAX] 1° profondità di taglio massima	.0490 in
Numero di inserti	4
Max giri/min	38700
Adduzione refrigerante	Y
Peso in chilogrammi	0.84

See all Product Variants

Uses and application

Codolo — Cilindrico liscio
Profilatura 3D
Contornatura/fresatura a spallamento: Sgrossatura
Scanalatura: Testa piana
Spianatura
Fresatura in rampa: Grezzo
Fresatura di tasche
Fresatura a tuffo
Fresatura — Senza refrigerante

Workpiece Materials

P Acciaio

M Acciai inossidabili

K Ghisa

N Materiali non ferrosi

S Leghe resistenti al calore

H Materiali temprati

Features and benefits

Bilaterale, sei taglienti.

Elevato volume di truciolo asportato.

Prima scelta per applicazioni di sgrossatura.

Guida alla selezione degli inserti

	Light Machining		General Purpose		Heavy Machining
Material Group	Geometry	Grade	Geometry	Grade	Geometry	Grade
P1–P2	...MM	WP40PM	...MM	WP40PM	...MM	WP40PM
P3–P4	...MM	WP25PM	...MM	WP40PM	...MH	WP40PM
P5–P6	...MM	WP25PM	...MH	WP25PM	...MH	WP40PM
M1–M2	...MM	WP25PM	...MM	WS30PM	...MM	WP40PM
M3	...MM	WP25PM	...MM	WP25PM	...MM	WP40PM
K1–K2	...MH	WK15CM	...MH	WK15CM	...MH	WK15CM
K3	...MH	TN6520	...MH	TN6520	...MH	WK15CM
N1–N2	–	–	–	–	–	–
N3	–	–	–	–	–	–
S1–S2	...MM	WP25PM	...MM	WS30PM	...MM	WP40PM
S3	...MM	WS30PM	...MM	WS30PM	...MM	WP40PM
S4	...MM	WS30PM	...MM	WP40PM	...MM	WP40PM
H1	...MH	WP25PM	–	–	–	–

Avanzamenti iniziali consigliati [mm]

Light Machining

General Purpose

Heavy Machining

Insert Geometry	Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae)															Insert Geometry
	5 %			10 %			20 %			30 %			40 100 %
..MM	0,90	1,67	4,09	0,65	1,19	2,83	0,48	0,88	2,08	0,42	0,77	1,80	0,38	0,70	1,64	..MM
..MH	0,90	2,34	5,00	0,65	1,66	3,41	0,48	1,23	2,49	0,42	1,07	2,16	0,38	0,98	1,97	..MH

Recommended Starting Feeds [IPT]

Insert Geometry	Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae)															Insert Geometry
	5%			10%			20%			30%			40 100%
...MM	.035	.061	.150	.025	.044	.104	.019	.033	.076	.017	.028	.066	.015	.026	.061	...MM
...MH	.035	.092	.197	.025	.065	.134	.019	.048	.098	.017	.042	.085	.015	.038	.078	...MH

Light Machining

General Purpose

Heavy Machining

Material Group		TN6525			TN6540			WK15CM			WP25PM			WP35CM			WP40PM			WS30PM			WS40PM			WU35PM
P	1	1340	1045	925	1180	925	785	–	–	–	1295	1120	1060	1790	1555	1460	1165	1025	965	–	–	–	–	–	–	850	750	705
	2	1045	830	710	830	630	550	–	–	–	1080	940	785	1105	1000	905	985	845	710	–	–	–	–	–	–	720	620	520
	3	925	710	610	710	550	450	–	–	–	1000	845	690	1000	905	805	905	770	630	–	–	–	–	–	–	655	555	455
	4	770	550	475	590	430	355	–	–	–	890	725	590	750	690	630	805	670	535	–	–	–	–	–	–	590	490	390
	5	1025	770	650	785	590	490	–	–	–	725	670	590	1025	905	830	670	610	535	–	–	–	560	475	395	490	440	390
	6	670	535	430	535	395	335	–	–	–	650	490	395	630	535	430	590	450	355	–	–	–	490	360	260	425	325	260
M	1	630	395	260	430	260	200	–	–	–	805	710	650	805	725	610	770	670	610	890	785	725	690	560	460	555	490	440
	2	395	260	155	260	155	140	–	–	–	725	630	510	725	630	550	690	590	490	805	710	570	590	475	395	505	425	360
	3	415	260	180	275	155	140	–	–	–	550	475	370	570	510	450	510	450	355	610	535	415	475	360	280	375	325	260
K	1	905	805	725	725	670	590	1655	1520	1340	905	805	725	1165	1045	940	–	–	–	–	–	–	–	–	–	–	–	–
	2	710	630	590	570	510	450	1320	1165	1080	710	630	590	925	830	750	–	–	–	–	–	–	–	–	–	–	–	–
	3	590	535	475	510	475	415	1105	985	905	590	535	475	770	690	630	–	–	–	–	–	–	–	–	–	–	–	–
N	1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	2	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	3	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
S	1	–	–	–	155	120	95	–	–	–	155	140	95	–	–	–	155	140	120	180	155	120	130	115	80	110	95	80
	2	–	–	–	80	60	40	–	–	–	155	140	95	–	–	–	155	140	120	180	155	120	130	115	80	110	95	80
	3	–	–	–	235	140	95	–	–	–	200	155	95	–	–	–	200	155	120	215	180	120	165	130	80	145	110	80
	4	–	–	–	200	95	80	–	–	–	275	200	140	260	200	130	260	200	140	335	235	155	195	165	100	195	145	95
H	1	–	–	–	–	–	–	–	–	–	475	355	275	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	2	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	3	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–

Parti di ricambio for M370 • Stelo cilindrico • W008… • Sistema metrico

TORX PLUS SCREW M3 X 0.50 X 9 LONG

Hardware CHAVE TORX DT-9IP
