      Shrink Fit Toolholders General Purpose (GP)
      Shrink Fit Toolholders General Purpose (GP)
      Shrink Fit Toolholders General Purpose (GP)
      Shrink Fit Toolholders General Purpose (GP)
      Select the files you wish to request
      Download CAD Drawings
      Send to Fusion 360

      TT GP HPV MM-BTKV forma B/AD

      Shrink Fit Toolholders General Purpose (GP)

      Metric
      Inch
      Codice materiale SAP 3861327
      Codice catalogo ISO BTKV40BHPVTT025350
      Codice catalogo ANSI BTKV40BHPVTT025350

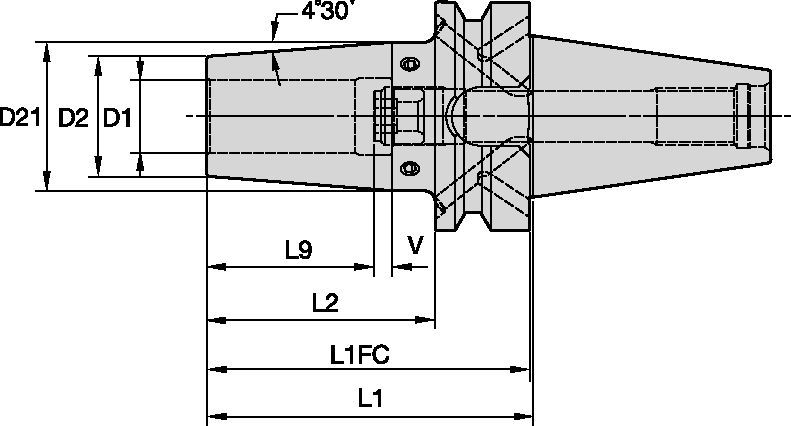

      [D1] Diametro adattatore / stelo / foro 6.3500 mm
      [D1] Diametro adattatore / stelo / foro .2500 in
      [D2] Diametro corpo 1 - Lato pezzo 21.0000 mm
      [D2] Diametro corpo 1 - Lato pezzo .8270 in
      [D21] Diametro corpo 2 - Lato pezzo 26.9000 mm
      [D21] Diametro corpo 2 - Lato pezzo 1.059 in
      [L1] Lunghezza spessore 88.9000 mm
      [L1] Lunghezza spessore 3.500 in
      Contatto frontale lunghezza spessore [L1FC] 87.8900 mm
      Contatto frontale lunghezza spessore [L1FC] 3.460 in
      [L2] Lunghezza utilizzabile 61.9000 mm
      [L2] Lunghezza utilizzabile 2.437 in
      [L9] Lunghezza di bloccaggio 26.0000 mm
      [L9] Lunghezza foro di bloccaggio 1.020 in
      [V] Gamma di regolazione 10.0000 mm
      [V] Gamma di regolazione .3937 in
      Vite di arresto - Dimensione chiave ID 2.5 mm
      Peso in chilogrammi 1.16
      See all Product Variants

      Uses and application

      • Equilibratura — G 2.5@ 20,000 giri/minEquilibratura — G 2.5@ 20,000 giri/min
      • Codolo — Cilindrico liscio ≤h6Codolo — Cilindrico liscio ≤h6
      • Codolo — Cilindrico Weldon® ≤h6Codolo — Cilindrico Weldon® ≤h6
      • Codolo — Cilindrico Whistle Notch ≤h6Codolo — Cilindrico Whistle Notch ≤h6
      • Codolo — SK BT contatto cono facciaCodolo — SK BT contatto cono faccia
      • Regolazione assiale — estremitàRegolazione assiale — estremità
      • Precisione — 3μm o menoPrecisione — 3μm o meno
      • Through Coolant: Radial: DrillingThrough Coolant: Radial: Drilling

      Features and benefits

      • Balanceable — fine tune with optional M6 set screws.

      • Suitable for carbide and HSS cutting tools (requirements below).

      Parti di ricambio for TT GP HPV MM-BTKV forma B/AD

      Spare Part
        TTSS05014M STOP SCREW TTSS05014M STOP SCREW
        TTSS05014M STOP SCREW
        Spare Part
          40 V FORM B COOLANT SCREWS - COATED 40 V FORM B COOLANT SCREWS - COATED
          40 V FORM B COOLANT SCREWS - COATED
