      Weldon® End Mills • Inch
      Weldon® End Mills • Inch
      Weldon® End Mills • Inch
      Weldon® End Mills • Inch

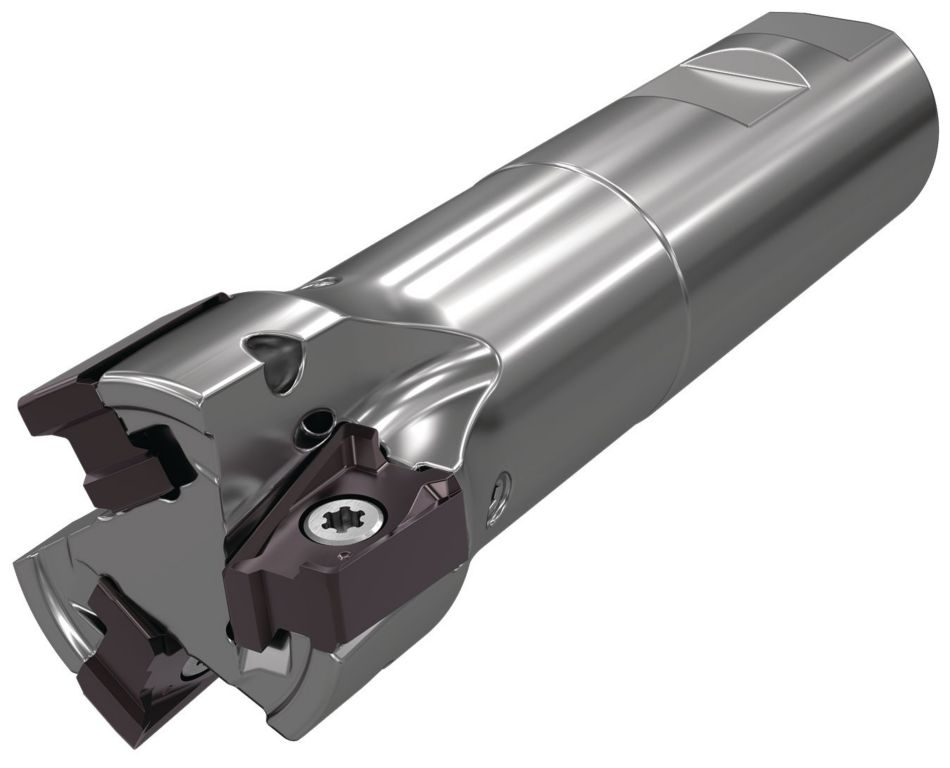

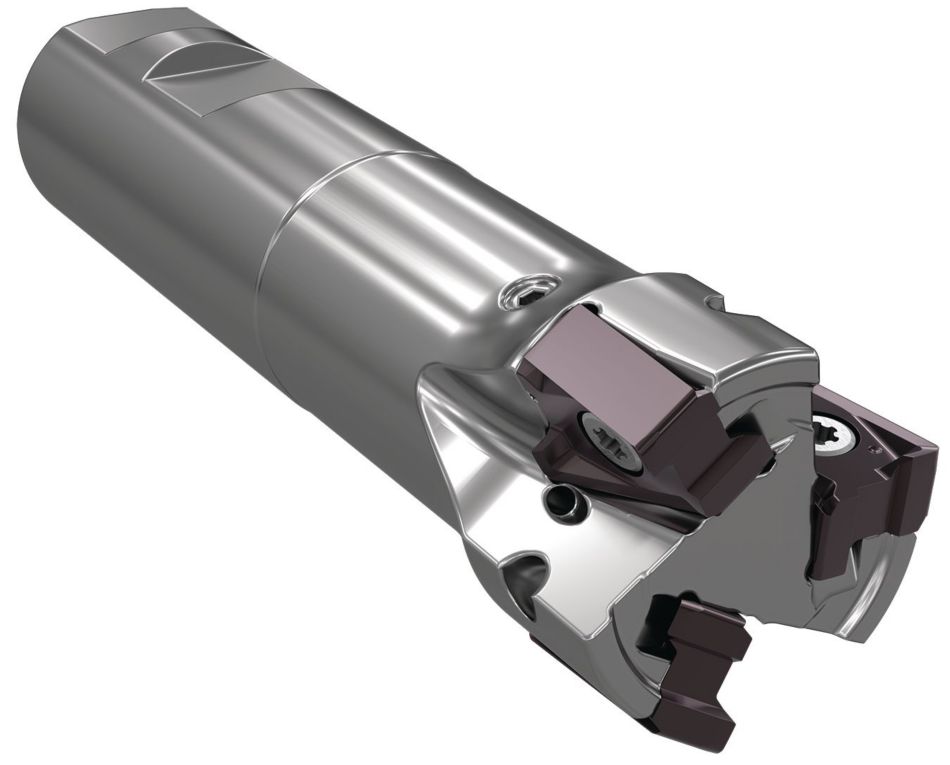

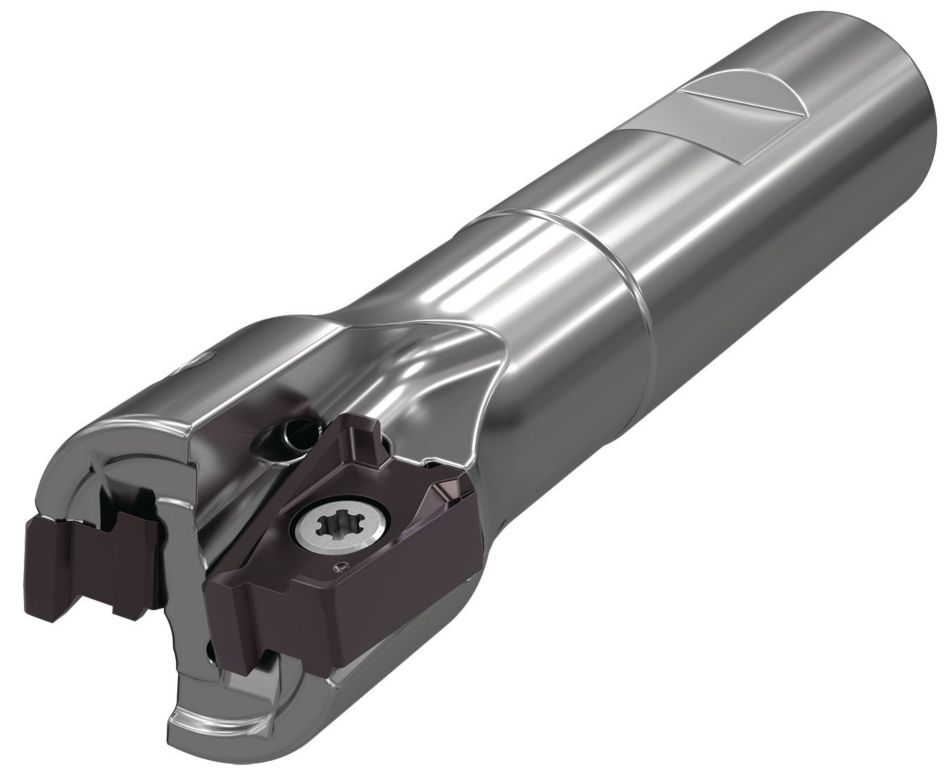

      VSM490-15 • Weldon® End Mills • Inch

      Weldon® End Mills • Inch

      SAP Material Number 5710592
      ISO Catalog Number VSM490D150Z04W125XN15
      ANSI Catalog Number VSM490D150Z04W125XN15

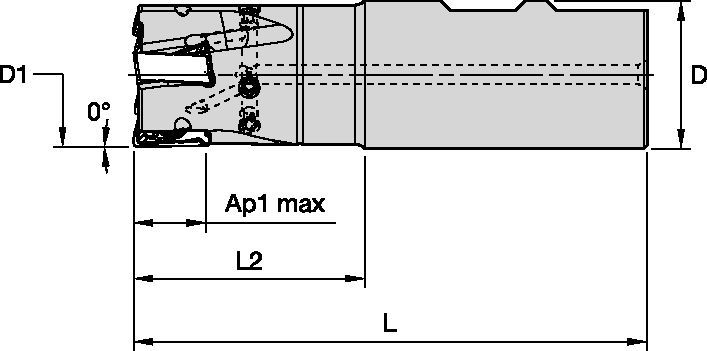

      [D1] Effective Cutting Diameter 38.1000
      [D1] Effective Cutting Diameter 1.500
      [D] Adapter / Shank / Bore Diameter 31.75
      [D] Adapter / Shank / Bore Diameter 1.25
      [L] Overall Length 115.0620
      [L] Overall Length 4.530
      [L2] Head Length 57.1500
      [L2] Head Length 2.250
      [AP1MAX] 1st Maximum Cutting Depth 15.0000
      [AP1MAX] 1st Maximum Cutting Depth .5910
      Number of Inserts 4
      Max RPM 19500
      Coolant Supply Y
      Weight Pounds 1.42
      See all Product Variants

      Uses and application

      • SpianaturaSpianatura
      • Contornatura/fresatura a spallamento: Testa pianaContornatura/fresatura a spallamento: Testa piana
      • Scanalatura: Testa pianaScanalatura: Testa piana
      • Fresatura di tascheFresatura di tasche
      • Fresatura — Senza refrigeranteFresatura — Senza refrigerante
      • Codolo —  Cilindrico  WeldonCodolo — Cilindrico Weldon

      Workpiece Materials

      P Steel
      M Stainless Steel
      K Cast Iron
      N Non-Ferrous
      S High-Temp Alloys
      H Hardened Materials

      Features and benefits

      • Superior wall and surface finish capabilities.

      • “Stepless” solution. True 0° to run precise
        applications in multiple axial passes.

      • Strong concept to run up to .590″ (15mm) depth of cut.

      • Effective internal coolant feature, reaching the cutting
        edge precisely.

      Parti di ricambio for VSM490-15 • Weldon® End Mills • Inch

      Spare Part
        TORX PLUS SCREW M4X10 -TXP15
        TORX PLUS SCREW M4X10 -TXP15
        Spare Part
          Spare Part
            Spare Part ANTI-SEIZE LUBRICANT
            Spare Part ANTI-SEIZE LUBRICANT
