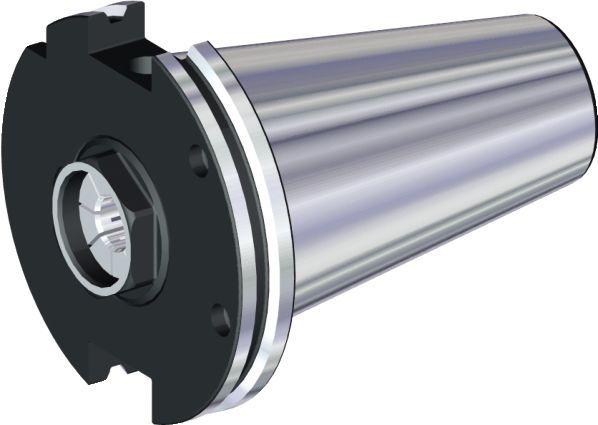

ER Single-Angle Collet Chucks Short
ER Single-Angle Collet Chucks Short
ER Single-Angle Collet Chucks Short
ER Single-Angle Collet Chucks Short

ER Short-DV AD型装置

ER Single-Angle Collet Chucks Short

Features and benefits

  • Grip (2:1 advantage).

Uses and application

  • 刀柄 — M24拉杆刀柄 — M24拉杆
  • 刀柄 — 圆柱 平面刀柄 — 圆柱 平面
  • 刀柄— 圆柱 Weldon刀柄— 圆柱 Weldon
  • 刀柄 — SK DV DIN 69871刀柄 — SK DV DIN 69871
  • 刀柄 — 圆柱 带有方头刀柄 — 圆柱 带有方头
  • 轴向调整 — 端面轴向调整 — 端面
  • 弹簧夹头 — ER DIN 6499弹簧夹头 — ER DIN 6499
  • Through Coolant: Radial: DrillingThrough Coolant: Radial: Drilling
  • 平衡 — G 6.3@ 30,000 min -1平衡 — G 6.3@ 30,000 min -1
ER Single-Angle Collet Chucks Short
Filters and Columns
Select Filters
Filters
Filters
Filters
View filters in
Metric
Inch
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Displaying 1- 2 of 2 results
Select Columns
Select Filters
Metric
Inch
Show
Metric
Inch
SAP 材料编号 ISO 目录编号 ANSI 目录编号 [CST] 弹簧夹头系列目录 [D11] 防松螺母直径 [D11] 防松螺母直径 [L1] 量规长度 [L1] 量规长度 [L9] 夹持长度 [L9] 夹持孔长度 [V] 调节范围 [V] 调节范围 扭矩目录牛米 止动螺钉 ID 扳手规格 重量（千克）
3479820 DV50SER32027M DV50SER32027M ER32 35.9000 1.410 27.0000 1.063 50.0000 1.970 17.0000 .6800 136 4 mm & 5/32 2.41
    List price:
    $225.31 /each
    Your price::
    3479821 DV50SER40027M DV50SER40027M ER40 46.0000 1.810 27.0000 1.063 57.0000 2.240 11.0000 .4400 176 4 mm & 5/32 2.24
      List price:
      $256.91 /each
      Your price::
      List price:
      Discount: %
      Your price::
      Replacement This item is no longer available
      Replacement Product Please contact customer service for assistance
