Cast Iron Milling Beast

M8090 is a fine pitch face milling series for rough, semi-finish and finish milling of a variety of cast and nodular irons at high-feed rates.

The M8090 face mill is designed with an 89-degree approach angle for rough and semi-finish milling applications in cast iron and nodular iron with the added flexibility of using carbide or ceramic inserts on the same cutter based on productivity needs.

The M8090-F finish mill is designed to achieve a surface finish <1.6 microns Ra in cast iron finish milling applications at high feeds.

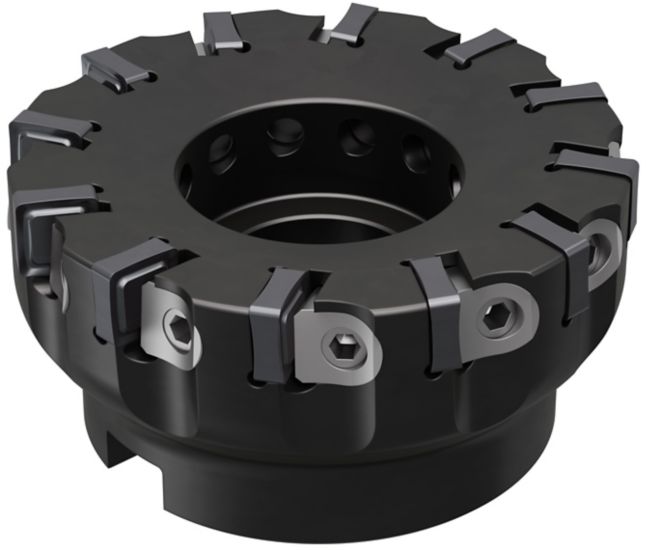

M8090 Series Face Mill (ISO Catalog # M8090D100Z12S32SN12 | MM # 6467715)

M8090 Face Mill

Rough and semi-finish milling of cast iron and nodular iron

  • 89-degree approach angle for machining close to fixture elements
  • Eight cutting edges on the insert for low cost per component
  • Wedge clamping system that easily indexes the insert and reduces setup times
  • Positive insert geometry

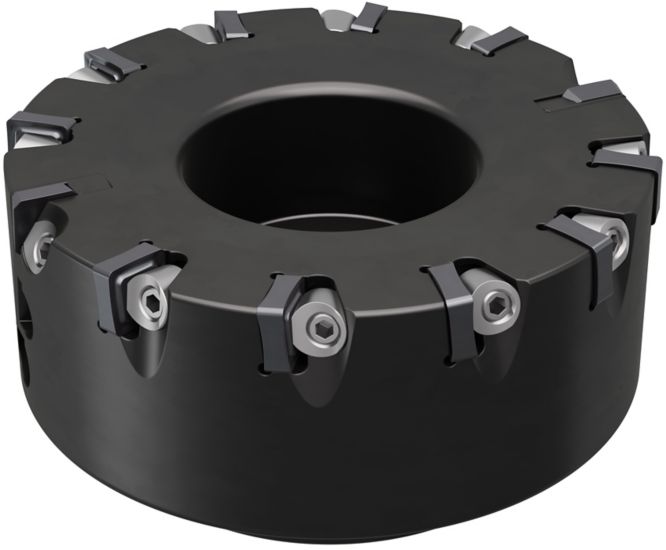

M8090-F Series Face Mill (ISO Catalog # M8090FD125Z12W2S40SN12 | MM # 6381961)

M8090-F Series Face Mill

Semi-finish and finish milling of cast iron and nodular iron

  • Fine-pitch cutter with fixed pocket for semi-finisher inserts and adjustable pockets for wiper inserts
  • Eight cutting edges per insert and four cutting edges on wiper insert
  • Wedge clamping system that easily indexes insert
  • Axial adjustable wiper pocket seats to set up axial run out with .005mm

Inserts are offered in carbide grades: WK15PM, ceramic grade WK25YM and PcBN grade WBK40U.

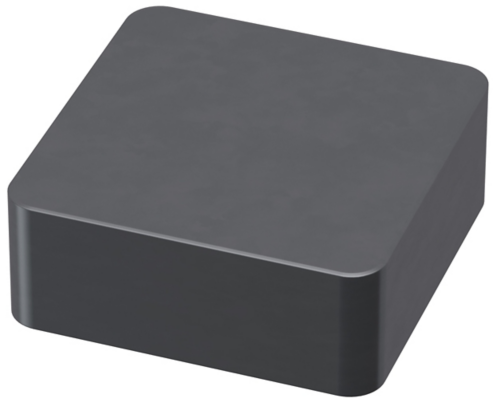

M8090 Series SNEN Ceramic Insert (ISO Catalog # SNEN120412SNHN |MM # 6880278)

SNEN Insert

Ceramic insert with eight effective cutting edges for cast iron applications

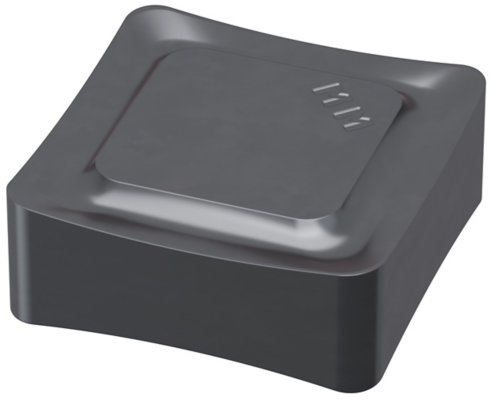

M8090 Series SNHF Roughing Insert (ISO Catalog # SNHF120412SNMM | MM # 6870510)

-MM Insert

Insert with eight effective cutting edges and a positive geometry to work on weak fixtures in cast iron applications

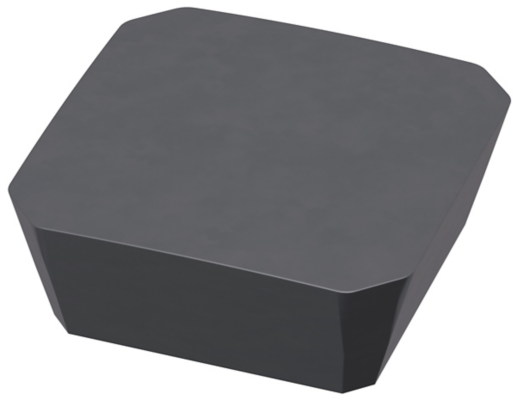

M8090-F Series SDEN Wiper Insert (ISO Catalog # SDEN1204PDEN4WC | MM # 6458851)

M8090-F Wiper Insert

Wiper insert with four effective cutting edges for cast iron finishing applications
