P 型夹持装置
P 型夹持装置
P 型夹持装置
P 型夹持装置

PCLN 95°

P 型夹持装置

Uses and application

  • 冷却方式－ 贯通式冷却 100 bar (1500 psi) 最大值冷却方式－ 贯通式冷却 100 bar (1500 psi) 最大值
  • Shank: KM4X™Shank: KM4X™
  • Coolant — Through Coolant 100 bar (1500 psi) MaximumCoolant — Through Coolant 100 bar (1500 psi) Maximum
P 型夹持装置
Filters and Columns
Select Filters
Filters
Filters
View filters in
Metric
Inch
keyFilters
工件材料
工件材料
  • P 钢 (8)
    • P0
      低碳钢，长切屑 C < .25%；<125 HB；<530 N/mm^2 UTS (8)
    • P1
      低碳钢、短切屑 C < .25%；<125 HB；<530 N/mm^2 UTS (8)
    • P2
      中碳钢和高碳钢 C < .25%；<220 HB；<25 HRC；>530 N/mm^2 UTS (8)
    • P3
      合金钢和工具钢 C > .25%；<330 HB；<35 HRC；600-850 N/mm^2 UTS (8)
    • P4
      合金钢和工具钢 C > .25%；350-420 HB；35-43 HRC；850-1400 N/mm^2 UTS (8)
    • P5
      铁素体、马氏体和 PH 不锈钢 <330 HB；<35 HRC；600-900 N/mm^2 UTS (8)
    • P6
      高强度铁素体、马氏体和 PH 不锈钢 350-450 HB；35-43 HRC；900-2400 N/mm^2 UTS (8)
  • M 不锈钢 (8)
    • M1
      奥氏体不锈钢 130-200 HB；<600 N/mm^2 UTS (8)
    • M2
      高强度奥氏体不锈钢和铸造不锈钢 150-230 HB；<25 HRC; >600 N/mm^2 UTS (8)
    • M3
      双相不锈钢 135-275 HB；<30 HRC; 500-1200 N/mm^2 UTS (8)
  • K 铸铁 (8)
    • K1
      灰口铸铁 120-290 HB；<32 HRC; 125-500 N/mm^2 UTS (8)
    • K2
      中低强度 CGI 和球墨铸铁 130-260 HB；<28 HRC; <600 N/mm^2 UTS (8)
    • K3
      高强度球墨铸铁和奥氏体球墨铸铁 180-350 HB；<43 HRC; >600 N/mm^2 UTS (8)
  • N 非铁金属材料 (8)
    • N1
      铝型材 (8)
    • N2
      低硅铝合金和镁合金 硅 < 12.2% (8)
    • N3
      高硅铝合金 硅 > 12.2% (8)
    • N4
      可机加工转位范围为 70 到 100 的铜基、黄铜基、锌基 (8)
    • N5
      尼龙、塑料、橡胶、酚醛塑料、树脂、玻璃纤维 (8)
    • N6
      碳、石墨复合材料、CFRP (8)
    • N7
      MMC (8)
  • S 高温合金 (8)
    • S1
      铁基耐热合金 160-260 HB；25-48 HRC；500-1200 N/mm^2 UTS (8)
    • S2
      钴基耐热合金 250-450 HB；25-48 HRC；1000-1450 N/mm^2 UTS (8)
    • S3
      镍基耐热合金 160-450 HB；<48 HRC; 600-1700 N/mm^2 UTS (8)
    • S4
      钛和钛合金 300-400 HB；33-43 HRC；900-1600 N/mm^2 UTS (8)
  • H 淬火材料 (8)
    • H1
      淬火材料 44-48 HRC (8)
    • H2
      淬火材料 48-55 HRC (8)
    • H3
      淬火材料 56-60 HRC (8)
    • H4
      淬火材料 >60 HRC (8)
应用
应用
  • Facing Facing (8)
  • ID Facing ID Facing (8)
  • Multiple Direction Cutting Multiple Direction Cutting (8)
  • Profiling Profiling (8)
  • TRN Boring TRN Boring (8)
  • Turning Turning (8)
切削条件
切削条件
  • Heavily Interrupted Cut (8)
  • Interrupted (8)
  • Lightly Interrupted Cut (8)
  • Smooth Cut (8)
  • Varying Depth of Cut (8)
每个刀片的切削刃
每个刀片的切削刃
  • 1.0 (8)
  • 2.0 (8)
  • 4.0 (8)
  • 8.0 (8)
每个刀片的切削刃 Min to 每个刀片的切削刃 Max
总长 [L]
总长 [L]
  • 4.921 in (2)
  • 5.513 in (4)
  • 6.694 in (2)
总长 [L] Min to 总长 [L] Max
总长 [L]
总长 [L]
  • 125.0 mm (2)
  • 140.0 mm (4)
  • 170.0 mm (2)
总长 [L] Min to 总长 [L] Max
cornerConfiguration
刀尖半径
刀尖半径
  • 0.004 in (8)
  • 0.008 in (8)
  • 0.016 in (8)
  • 0.031 in (8)
  • 0.047 in (8)
  • 0.062 in (8)
  • 0.063 in (8)
刀尖半径 Min to 刀尖半径 Max
刀尖半径
刀尖半径
  • 0.1 mm (8)
  • 0.2 mm (8)
  • 0.4 mm (8)
  • 0.8 mm (8)
  • 1.201 mm (8)
  • 1.576 mm (8)
  • 1.6 mm (8)
刀尖半径 Min to 刀尖半径 Max
application
最小切削深度
最小切削深度
最小进给
最小进给
切削刀具材质
切削刀具材质
  • 13E (8)
  • 241 (8)
  • CL4 (8)
  • CM2 (8)
  • CM3 (8)
  • CM4 (8)
  • CPX (8)
  • CW2 (8)
  • CW2015 (8)
  • CW5025 (8)
  • GX (8)
  • HK1500 (8)
  • HT2 (8)
  • HTX (8)
  • K060 (8)
  • K090 (8)
  • K1 (8)
  • K10M (8)
  • K10P (8)
  • K10U (8)
  • K15U (8)
  • K20K (8)
  • K21 (8)
  • K25M (8)
  • K25P (8)
  • K313 (8)
  • K420 (8)
  • K45 (8)
  • K68 (8)
  • KB1340 (8)
  • KB1345 (8)
  • KB1610 (8)
  • KB1625 (8)
  • KB1630 (8)
  • KB5610 (8)
  • KB5625 (8)
  • KB5630 (8)
  • KB9610 (8)
  • KB9640 (8)
  • KBH10 (8)
  • KBH10B (8)
  • KBH20 (8)
  • KBH20B (8)
  • KBK35 (8)
  • KC210 (8)
  • KC250 (8)
  • KC5010 (8)
  • KC5025 (8)
  • KC5410 (8)
  • KC5510 (8)
  • KC5525 (8)
  • KC710 (8)
  • KC720 (8)
  • KC722 (8)
  • KC730 (8)
  • KC7310 (8)
  • KC732 (8)
  • KC8050 (8)
  • KC810 (8)
  • KC850 (8)
  • KC9010 (8)
  • KC9025 (8)
  • KC910 (8)
  • KC9105 (8)
  • KC9110 (8)
  • KC9120 (8)
  • KC9125 (8)
  • KC9140 (8)
  • KC9145 (8)
  • KC9215 (8)
  • KC9225 (8)
  • KC9240 (8)
  • KC9240NEW (8)
  • KC9245 (8)
  • KC9315 (8)
  • KC9320 (8)
  • KC9325 (8)
  • KC935 (8)
  • KC950 (8)
  • KC990 (8)
  • KCK05 (8)
  • KCK05B (8)
  • KCK15 (8)
  • KCK15B (8)
  • KCK20 (8)
  • KCK20B (8)
  • KCM15 (8)
  • KCM15B (8)
  • KCM25 (8)
  • KCM25B (8)
  • KCM35 (8)
  • KCM35B (8)
  • KCP05 (8)
  • KCP05B (8)
  • KCP10 (8)
  • KCP10B (8)
  • KCP25 (8)
  • KCP25B (8)
  • KCP25C (8)
  • KCP30 (8)
  • KCP30B (8)
  • KCP40 (8)
  • KCP40B (8)
  • KCPK05 (8)
  • KCS10 (8)
  • KCS10B (8)
  • KCU10 (8)
  • KCU10B (8)
  • KCU25 (8)
  • KD050 (8)
  • KD081 (8)
  • KD100 (8)
  • KD120 (8)
  • KD1400 (8)
  • KD1405 (8)
  • KD1425 (8)
  • KM1 (8)
  • KMF (8)
  • KS15 (8)
  • KT1120 (8)
  • KT125 (8)
  • KT150 (8)
  • KT175 (8)
  • KT315 (8)
  • KT325 (8)
  • KU10T (8)
  • KU30T (8)
  • KY1310 (8)
  • KY1320 (8)
  • KY1540 (8)
  • KY1615 (8)
  • KY2000 (8)
  • KY2100 (8)
  • KY3000 (8)
  • KY3400 (8)
  • KY3500 (8)
  • KY4000 (8)
  • KY4300 (8)
  • KY4400 (8)
  • KYHK15B (8)
  • KYK10 (8)
  • KYK25 (8)
  • KYK35 (8)
  • KYS25 (8)
  • KYS30 (8)
  • NL200 (8)
  • NL250 (8)
  • NL300 (8)
  • NL400 (8)
  • NL920 (8)
  • P25 (8)
  • PB100 (8)
  • PB170 (8)
  • PB250 (8)
  • PB300 (8)
  • PS5 (8)
  • SP0819 (8)
  • SP3019 (8)
  • SP4019 (8)
  • THM (8)
  • THM-X (8)
  • THMF-X (8)
  • TN10P (8)
  • TN10U (8)
  • TN15M (8)
  • TN15U (8)
  • TN2000 (8)
  • TN20K (8)
  • TN20P (8)
  • TN30M (8)
  • TN30P (8)
  • TN4000 (8)
  • TN5015 (8)
  • TN5020 (8)
  • TN5105 (8)
  • TN5120 (8)
  • TN6010 (8)
  • TN6025 (8)
  • TN7005 (8)
  • TN7010 (8)
  • TN7015 (8)
  • TN7025 (8)
  • TN7035 (8)
  • TN7105 (8)
  • TN7110 (8)
  • TN7115 (8)
  • TN7125 (8)
  • TN7135 (8)
  • TN8025 (8)
  • TTI15 (8)
  • TTR (8)
  • TTS (8)
  • TTX (8)
  • WBH10C (8)
  • WBH10P (8)
  • WBH10U (8)
  • WBH20P (8)
  • WBH25P (8)
  • WBH25U (8)
  • WBH30P (8)
  • WBK40U (8)
  • WBK45U (8)
  • WDN00U (8)
  • WDN25U (8)
  • WK05CT (8)
  • WK15CT (8)
  • WK20CT (8)
  • WM15CT (8)
  • WM25CT (8)
  • WM35CT (8)
  • WP05CT (8)
  • WP15CT (8)
  • WP25CT (8)
  • WP35CT (8)
  • WS10PT (8)
  • WS25PT (8)
  • WU10HT (8)
  • WU10PT (8)
  • WU25PT (8)
  • X00511 (8)
  • X00580 (8)
  • X00581 (8)
  • X00582 (8)
  • X00583 (8)
  • X00584 (8)
  • X00585 (8)
  • X00586 (8)
  • X00591 (8)
  • X00592 (8)
  • X00593 (8)
  • X00594 (8)
  • X00596 (8)
  • X00597 (8)
  • X00599 (8)
刀具手式
刀具手式
  • L (4)
  • R (4)
修光刃刀片
修光刃刀片
  • N (8)
  • Y (8)
F 尺寸
F 尺寸
  • 17.0 mm (2)
  • 22.0 mm (2)
  • 27.0 mm (2)
  • 35.0 mm (2)
F 尺寸 Min to F 尺寸 Max
F 尺寸
F 尺寸
  • 0.669 in (2)
  • 0.866 in (2)
  • 1.063 in (2)
  • 1.379 in (2)
F 尺寸 Min to F 尺寸 Max
最小轴向凹槽直径
最小轴向凹槽直径
  • 32.0 mm (2)
  • 40.0 mm (2)
  • 50.0 mm (2)
  • 63.0 mm (2)
最小轴向凹槽直径 Min to 最小轴向凹槽直径 Max
最小轴向凹槽直径
最小轴向凹槽直径
  • 1.26 in (2)
  • 1.575 in (2)
  • 1.969 in (2)
  • 2.48 in (2)
最小轴向凹槽直径 Min to 最小轴向凹槽直径 Max
最大镗孔深度
最大镗孔深度
  • 3.477 in (2)
  • 4.42 in (2)
  • 4.49 in (2)
  • 5.671 in (2)
最大镗孔深度 Min to 最大镗孔深度 Max
最大镗孔深度
最大镗孔深度
  • 88.325 mm (2)
  • 112.275 mm (2)
  • 114.051 mm (2)
  • 144.05 mm (2)
最大镗孔深度 Min to 最大镗孔深度 Max
insertGeometry
切削刀具材料
切削刀具材料
  • B H (8)
  • B L (8)
  • C A (8)
  • C N (8)
  • D P (8)
  • H T (8)
  • H W (8)
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Displaying 1- 8 of 8 results
Select Columns
Select Filters
Metric
Inch
Show
Metric
Inch

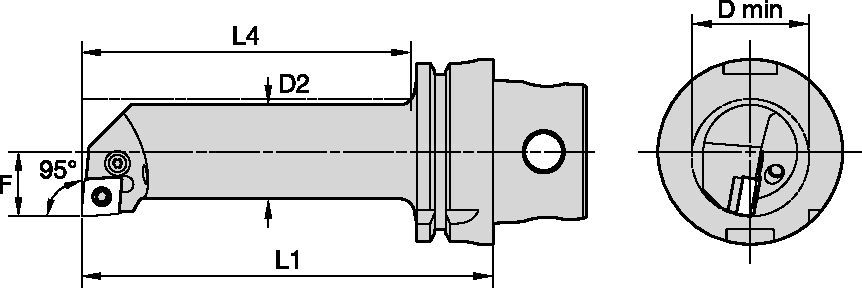

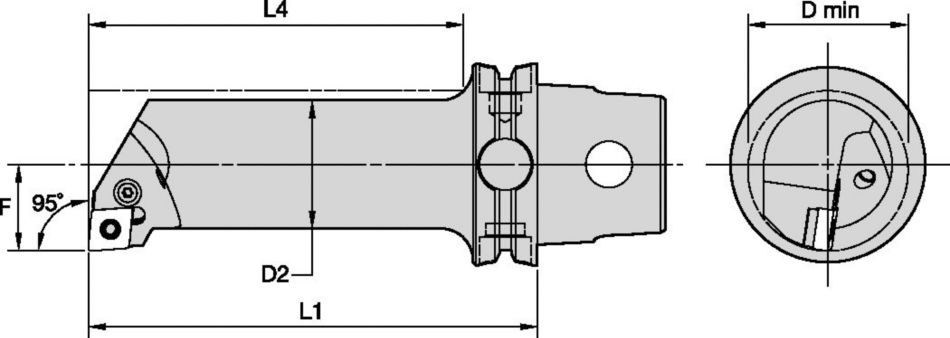

SAP 材料编号 ISO 目录编号 ANSI 目录编号 [L4] 最大镗削深度 [L4] 最大镗削深度 [D2] 工件侧钻体直径 1 [D2] 工件侧钻体直径 1 Gage 刀片 重量（磅） [DM] 最小镗孔直径 [DM] 最小镗孔直径 [L1] 刀具长度 [L1] 刀具长度 [F] F 尺寸 [F] F 尺寸 重量（千克）
5589480 KM4X63S25KPCLNL12 KM4X63S25KPCLNL12 88.33 3.477 25 .984 CN..120408/CN..432 2.44 32 1.26 125 4.921 17 .669 1.11
    List price:
    $652.04 /each
    Your price::
    5589481 KM4X63S25KPCLNR12 KM4X63S25KPCLNR12 88.33 3.477 25 .984 CN..120408/CN..432 2.45 32 1.26 125 4.921 17 .669 1.11
      List price:
      $652.04 /each
      Your price::
      5589462 KM4X63S32LPCLNL12 KM4X63S32LPCLNL12 112.27 4.42 32 1.26 CN..120408/CN..432 2.44 40 1.575 140 5.512 22 .866 1.11
        List price:
        $652.04 /each
        Your price::
        5589463 KM4X63S32LPCLNR12 KM4X63S32LPCLNR12 112.27 4.42 32 1.26 CN..120408/CN..432 3 40 1.575 140 5.512 22 .866 1.36
          List price:
          $652.04 /each
          Your price::
          5589474 KM4X63S40LPCLNL12 KM4X63S40LPCLNL12 114.05 4.49 40 1.575 CN..120408/CN..432 3.79 50 1.969 140 5.512 27 1.063 1.72
            List price:
            $652.04 /each
            Your price::
            5589475 KM4X63S40LPCLNR12 KM4X63S40LPCLNR12 114.05 4.49 40 1.575 CN..120408/CN..432 3.79 50 1.969 140 5.512 27 1.063 1.72
              List price:
              $652.04 /each
              Your price::
              5589468 KM4X63S50PPCLNL12 KM4X63S50PPCLNL12 144.05 5.671 50 1.969 CN..120408/CN..432 5.91 63 2.48 170 6.693 35 1.378 2.68
                List price:
                $652.04 /each
                Your price::
                5589469 KM4X63S50PPCLNR12 KM4X63S50PPCLNR12 144.05 5.671 50 1.969 CN..120408/CN..432 5.91 63 2.48 170 6.693 35 1.378 2.68
                  List price:
                  $652.04 /each
                  Your price::
