ABC

小孔镗杆

Metric
Inch
SAP 材料编号 2836656
ISO 目录编号 ABC1000R
ANSI 目录编号 ABC1000R
材质 WG

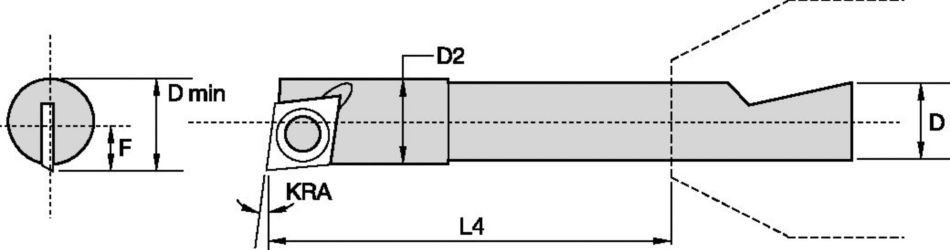

[KRA] 导程角 ANSI -7
[D]适配接头/刀柄/镗孔直径 3.96 mm
[D]适配接头/刀柄/镗孔直径 .156 in
[DM] 最小镗孔直径 4.57 mm
[DM] 最小镗孔直径 .18 in
[D2] 刀头直径 4.16 mm
[D2] 刀头直径 .164 in
[F] F 尺寸 2.41 mm
[F] F 尺寸 .095 in
[L4] 最大镗削深度 25.4 mm
[L4] 最大镗削深度 1 in
Gage 刀片 CD..120605
刀片螺钉 ID 扳手规格 T6
查看所有产品变体

工件材料

P
M 不锈钢
K 铸铁
N 非铁材质

机床侧

loading...

工件侧

loading...

备件 for ABC

Spare Part
    HARDWARE SCREW HARDWARE SCREW
    HARDWARE SCREW
    Spare Part
      HARDWARE HARDWARE
      HARDWARE
