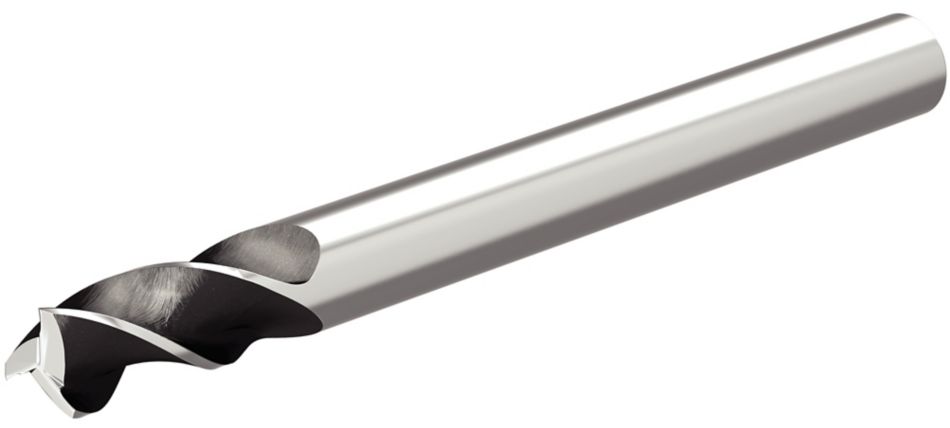

      ALUFLASH • Series 3A09 • Square End • 3 Flute • Regular Length • Cylindrical Shank • Inch

      ALUFLASH™ Series 3A09 • Square End • 3 Flute • Regular Length • Cylindrical Shank • Inch

      SAP 材料编号 6853366
      ISO 目录编号 3A09E19009SZT
      ANSI 目录编号 3A09E19009SZT
      材质 UNCOATED
      机床侧适配接头样式 Straight-Cylindrical
      [D1] 有效的切削直径 19.0500 mm
      [D1] 有效的切削直径 .7500 in
      [D]适配接头/刀柄/镗孔直径 19.05 mm
      [D]适配接头/刀柄/镗孔直径 .75 in
      [AP1MAX] 第一个最大切深 41.2750 mm
      [AP1MAX] 第一个最大切深 1.625 in
      [L] 总长 101.6000 mm
      [L] 总长 4.000 in
      [Z] 排屑槽数量 3
      See all Product Variants

      Uses and application

      • 坡铣: 毛坯坡铣: 毛坯
      • 槽铣: 方头立铣槽铣: 方头立铣
      • DrillingDrilling
      • Trochoidal MillingTrochoidal Milling
      • 侧铣/方肩铣削: 方头立铣侧铣/方肩铣削: 方头立铣
      • 螺旋铣削螺旋铣削
      • 插铣插铣

      Workpiece Materials

      N 非铁材质


      • UNCOATED
        N 非铁材质
