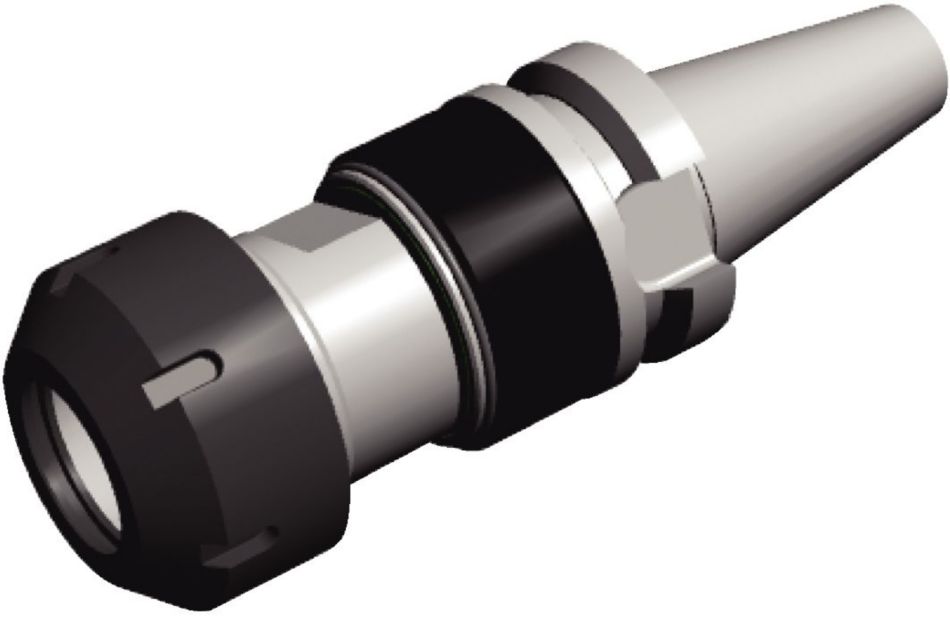

BT Synchro Plus • 公制

BT Synchro Plus™

Metric
Inch
SAP 材料编号 5525689
ISO 目录编号 BT30BSYTER20085M
ANSI 目录编号 BT30BSYTER20085M
[CST] 弹簧夹头系列目录 ER20
[L1] 量规长度 90.1 mm
[L1] 量规长度 3.547 in
[D2] 工件侧钻体直径 1 34 mm
[D2] 工件侧钻体直径 1 1.339 in
[L9] 夹持长度 45 mm
[L9] 夹持孔长度 1.772 in
扭矩(牛顿米) 32.000-40
[D11] 防松螺母直径 34 mm
[D11] 防松螺母直径 1.339 in
扭矩(英尺磅) 23.0000-29
See all Product Variants

备件 for BT Synchro Plus • 公制

Spare Part
    ER20INTERNAL COOLANT LOCKNUT - FORM B ER20INTERNAL COOLANT LOCKNUT - FORM B
    ER20INTERNAL COOLANT LOCKNUT - FORM B
    Spare Part
      Adjusting screw for size 1 D 6 & 7mm Adjusting screw for size 1 D 6 & 7mm
      Adjusting screw for size 1 D 6 & 7mm
      Spare Part
        Adjusting screw for size 1 D 8 & 9mm Adjusting screw for size 1 D 8 & 9mm
        Adjusting screw for size 1 D 8 & 9mm
        Spare Part
          Adjusting screw for size 1 D 10mm Adjusting screw for size 1 D 10mm
          Adjusting screw for size 1 D 10mm
