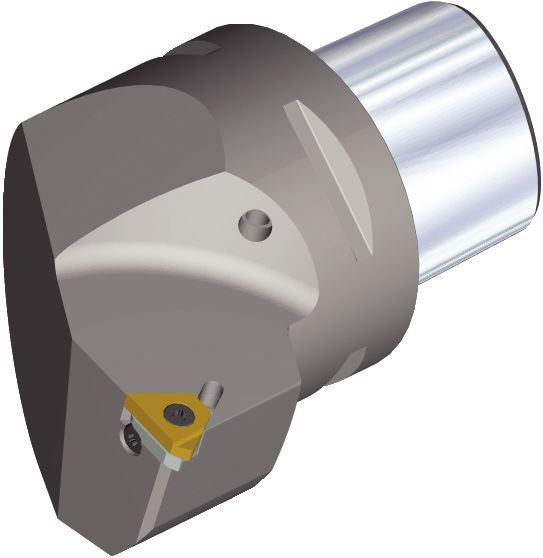

LSE 90°

切削装置 • LT 螺纹加工刀具

Metric
Inch
SAP 材料编号 4100715
ISO 目录编号 PSC63LSER16N
ANSI 目录编号 PSC63LSER16N
[L1] 刀具长度 65 mm
[L1] 刀具长度 2.559 in
[F] F 尺寸 45 mm
[F] F 尺寸 1.771 in
[DM] 最小镗孔直径 90 mm
[DM] 最小镗孔直径 3.543 in
Gage 刀片 LT16NR
重量(千克) 1.5
查看所有产品变体

Uses and application

  • 制造商规格: ISO 26623制造商规格: ISO 26623
  • Coolant - Through Coolant 1200 psiCoolant - Through Coolant 1200 psi
  • Shank - PSCShank - PSC
  • Coolant: Through Coolant 80 bar MaximumCoolant: Through Coolant 80 bar Maximum

工件材料

P
M 不锈钢
K 铸铁
N 非铁材质
S 高温合金
H 淬火材料

机床侧

loading...

工件侧

loading...

备件 for LSE 90°

Spare Part
    CARBIDE SHIM *SMYI3 K9 CARBIDE SHIM *SMYI3 K9
    CARBIDE SHIM *SMYI3 K9
    Spare Part
      SCREW SHIM SCREW SHIM
      SCREW SHIM
      Spare Part
        TAPERED HEAD SCREW TORX TAPERED HEAD SCREW TORX
        TAPERED HEAD SCREW TORX
