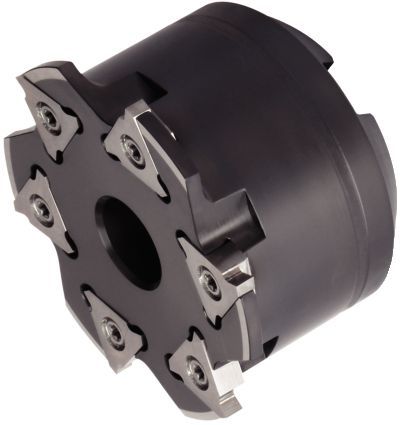

M94 • 套式铣刀

套式铣刀

Metric
Inch
SAP 材料编号 2022621
ISO 目录编号 12290911600
ANSI 目录编号 12290911600
材质 W
[D1] 有效的切削直径 63 mm
[D1] 有效的切削直径 2.48 in
[D]适配接头/刀柄/镗孔直径 22 mm
[D]适配接头/刀柄/镗孔直径 .8661 in
[DM] 最小镗孔直径 85 mm
MIL_D_MIN_I 3.346 in
[D6] 保护区孔直径 55 mm
[D6] 保护区孔直径 2.165 in
[L] 总长 40 mm
[L] 总长 1.575 in
[WM] 最小凹槽宽度 2.73 mm
MIL_CTLG_INS_W_MIN_I .1074 in
[WMAX] 最大凹槽宽度 4.26 mm
MIL_CTLG_INS_W_MAX_I .1677 in
刀片数量 6
Gage 刀片 TNAX1604ZZ.
冷却液供应 N
重量(千克) 0.7
查看所有产品变体

Uses and application

  • 槽铣: 侧铣槽铣: 侧铣
  • 铣削 —  侧铣和端面铣铣削 — 侧铣和端面铣

工件材料

P
M 不锈钢
K 铸铁
N 非铁材质

Features and benefits

  • 每个刀片有三个切削刃。

  • 切向安装刀片。

  • 浅切槽及槽铣加工。

机床侧

loading...

工件侧

loading...

备件 for M94 • 套式铣刀

Spare Part
    Spare Part ANTI-SEIZE LUBRICANT Spare Part ANTI-SEIZE LUBRICANT
    Spare Part ANTI-SEIZE LUBRICANT
    Spare Part
      INSERT SCREW INSERT SCREW
      INSERT SCREW
      Spare Part
        Spare Part TORX DRIVER Spare Part TORX DRIVER
        Spare Part TORX DRIVER
