      凸缘安装座
      凸缘安装座
      凸缘安装座
      凸缘安装座
      下载CAD图纸

      NCM-SF • 凸缘安装座 • KM Micro™ 夹持装置

      凸缘安装座

      Metric
      Inch
      SAP 材料编号 1925741
      ISO 目录编号 KM12NCMSF1522
      ANSI 目录编号 KM12NCMSF1522

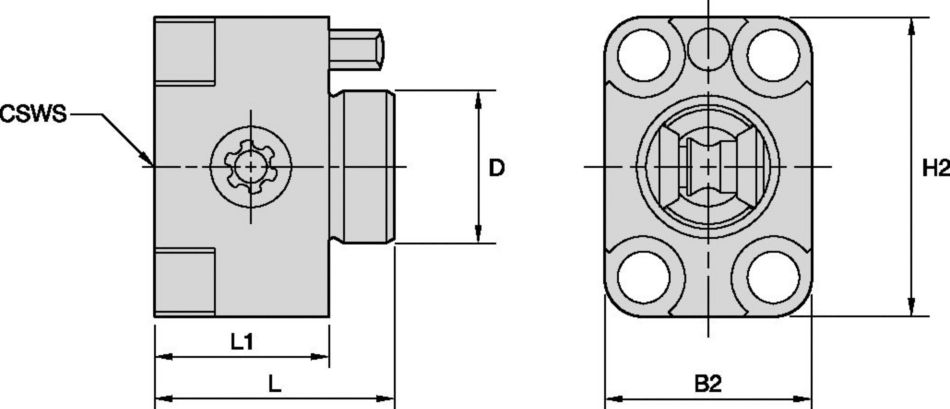

      [CSWS] 工件侧系统规格 KM12
      [B2] 总宽度 15.7500 mm
      [B2] 总宽度 .6201 in
      [D]适配接头/刀柄/镗孔直径 10.0 mm
      [D]适配接头/刀柄/镗孔直径 .3937 in
      [H2] 总高度 21.5000 mm
      [H2] 总高度 .8465 in
      [L] 总长 18.0000 mm
      [L] 总长 .7087 in
      [L1] 量规长度 14.0000 mm
      [L1] 量规长度 .5512 in
      致动螺钉 ID 扳手规格 25 IP
      扭矩目录牛米 7-8
      See all Product Variants

      备件 for NCM-SF • 凸缘安装座 • KM Micro™ 夹持装置

      Spare Part
        KM MICRO 12 MAINTENANCE PACKAGE KM MICRO 12 MAINTENANCE PACKAGE
        KM MICRO 12 MAINTENANCE PACKAGE
