      P-夹持
      P-夹持
      P-夹持
      P-夹持
      下载CAD图纸

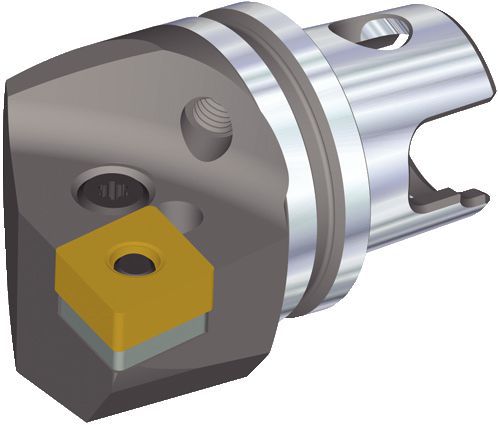

      PCLN 95° - KM32TS 切削装置 (P-夹持)

      P-夹持

      Metric
      Inch
      SAP 材料编号 1624632
      ISO 目录编号 KM32TSPCLNR12
      ANSI 目录编号 KM32TSPCLNR12

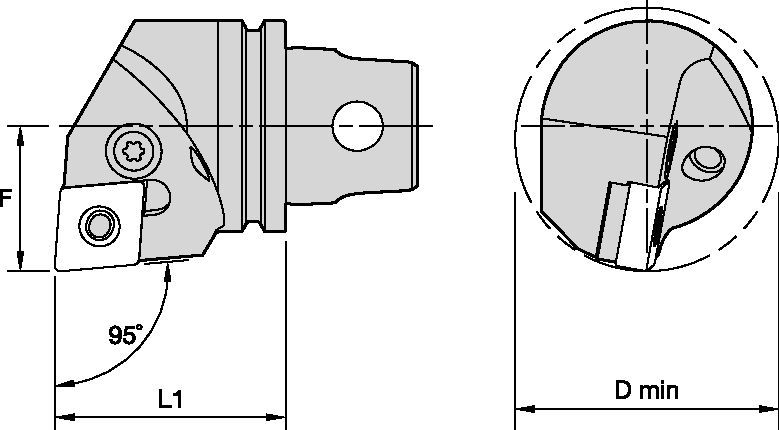

      [L1] 刀具长度 35.0000 mm
      [L1] 刀具长度 1.378 in
      [F] F 尺寸 22.0000 mm
      [F] F 尺寸 .8661 in
      [DM] 最小镗孔直径 40.0000 mm
      [DM] 最小镗孔直径 1.575 in
      Gage 刀片 CN..120408/CN..432
      重量（千克） 0.18
      重量（磅） 0.40
      See all Product Variants

      Uses and application

      • 刀柄 — KM－TS ISO 26622刀柄 — KM－TS ISO 26622
      • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
      • Coolant — Through Coolant 100 bar (1500 psi) MaximumCoolant — Through Coolant 100 bar (1500 psi) Maximum
      • 冷却方式－ 贯通式冷却 100 bar (1500 psi) 最大值冷却方式－ 贯通式冷却 100 bar (1500 psi) 最大值

      Workpiece Materials

      P 钢
      M 不锈钢
      K 铸铁
      N 非铁材质
      S 高温合金
      H 淬火材料

      备件 for PCLN 95° - KM32TS 切削装置 (P-夹持)

      Spare Part
        PLASTIC PUNCH 515.018 PLASTIC PUNCH 515.018
        PLASTIC PUNCH 515.018
        Spare Part
          SHIM 512.112 SHIM 512.112
          SHIM 512.112
          Spare Part
            SHIM PIN TOGGLE LEVER 513.023 SHIM PIN TOGGLE LEVER 513.023
            SHIM PIN TOGGLE LEVER 513.023
            Spare Part
              CLAMPING SCREW M8X1 514.123 CLAMPING SCREW M8X1 514.123
              CLAMPING SCREW M8X1 514.123
              Spare Part
                LEVER 601 511.023 LEVER 601 511.023
                LEVER 601 511.023
