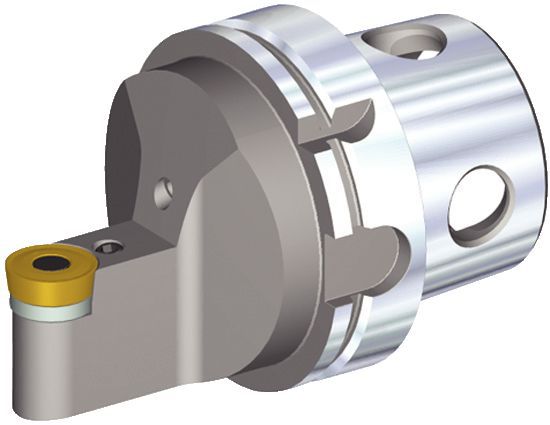

PRDCN

P-夹持

Metric
Inch
SAP 材料编号 5337750
ISO 目录编号 KM4X100PRDCN20
ANSI 目录编号 KM4X100PRDCN20
[L1] 刀具长度 100 mm
[L1] 刀具长度 3.937 in
[F] F 尺寸 10 mm
[F] F 尺寸 .394 in
[CD] 切深 40.15 mm
[CD] 切深 1.581 in
Gage 刀片 RCMT2006M0
重量(千克) 3.63
重量(磅) 8
查看所有产品变体

Uses and application

  • Coolant — Through Coolant  100 bar (1500 psi)  MaximumCoolant — Through Coolant 100 bar (1500 psi) Maximum
  • 冷却方式- 贯通式冷却  100 bar (1500 psi)  最大值冷却方式- 贯通式冷却 100 bar (1500 psi) 最大值
  • Shank: KM4X™Shank: KM4X™

工件材料

P
M 不锈钢
K 铸铁
N 非铁材质
S 高温合金
H 淬火材料
C CFRP 材料

机床侧

loading...

工件侧

loading...

备件 for PRDCN

Spare Part
    FIX PERFECT PIN FIX PERFECT PIN
    FIX PERFECT PIN
    Spare Part
      SET SCREW DIN 915 M8X20-45H SET SCREW DIN 915 M8X20-45H
      SET SCREW DIN 915 M8X20-45H
      Spare Part
        SHIM SHIM
        SHIM
