      P-Clamping
      P-Clamping
      P-Clamping
      P-Clamping

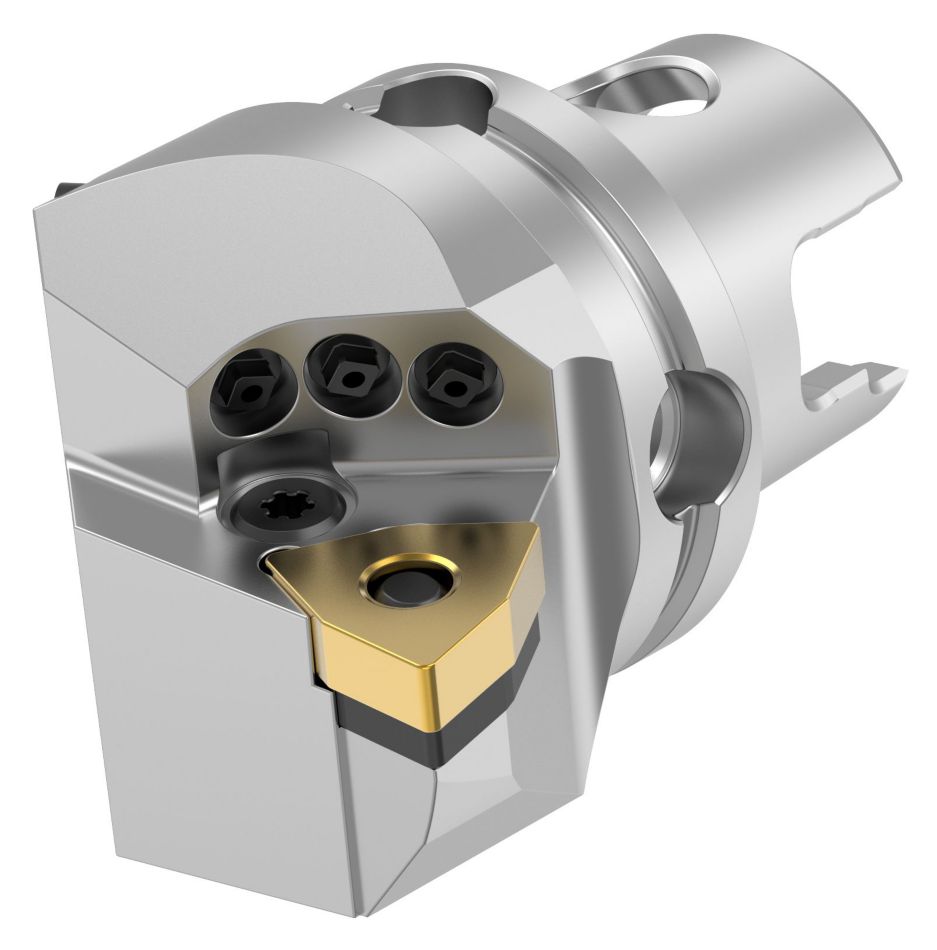

      PWLN 95° • HPC

      P-Clamping

      Metric
      Inch
      SAP Material Number 6250370
      ISO Catalog Number KM40TSPWLNR08HPC
      ANSI Catalog Number KM40TSPWLNR08HPC
      [L1] Tool Length 40.0000
      [L1] Tool Length 1.575
      [F] F Dimension 27.0000
      [F] F Dimension 1.063
      [DM] Minimum Bore Diameter 50.0000
      [DM] Minimum Bore Diameter 1.969
      Gage Insert WN..080408/WN..432
      Weight Kilograms 0.35
      Weight Pounds 0.78
      See all Product Variants

      Uses and application

      • 刀柄 —  KM-TS  ISO 26622刀柄 — KM-TS ISO 26622
      • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
      • Multi Coolant TurningMulti Coolant Turning
      • Coolant — Through Coolant  100 bar (1500 psi)  MaximumCoolant — Through Coolant 100 bar (1500 psi) Maximum
      • 冷却方式- 贯通式冷却  100 bar (1500 psi)  最大值冷却方式- 贯通式冷却 100 bar (1500 psi) 最大值

      Workpiece Materials

      P Steel
      M Stainless Steel
      K Cast Iron
      N Non-Ferrous
      S High-Temp Alloys
      H Hardened Materials

      备件 for PWLN 95° • HPC

      Spare Part
        CLAMPING SCREW M8X1 514.123
        CLAMPING SCREW M8X1 514.123
        Spare Part
          LEVER 601 511.023
          LEVER 601 511.023
          Spare Part
            SPARE PART 513.023
            SPARE PART 513.023
            Spare Part
              SHIM 512.135
              SHIM 512.135
              Spare Part
                WRENCH FRO COOLANT NOZZLES
                WRENCH FRO COOLANT NOZZLES
                Spare Part
                  WRENCH 15IP
                  WRENCH 15IP
                  Spare Part
                    PLASTIC PUNCH 515.018
                    PLASTIC PUNCH 515.018
                    Spare Part
                      QPM COOLANT PLUG PMP08361
                      QPM COOLANT PLUG PMP08361
                      Spare Part
                        QPM HPC NOZZLE NZLM4060140
                        QPM HPC NOZZLE NZLM4060140
