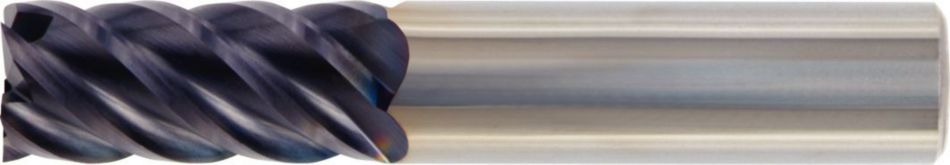

High-Performance Solid Carbide End Mills • Finishing Series 4C05 • Lists 4C05 4C15 4C45
Series 4C05 • Lists 4C05 4C15 4C45
Series 4C05 • Lists 4C05 4C15 4C45
物料号2863941
公制样本编号4C0503001英制样本编号4C0503001
牌价
/每个
折扣
您的价格
/每个
有库存这个产品不再供应较长交货期
物料定价组
出售时采用的包装 0调整以满足最小包装尺寸。
最小数量： 0调整以达到最低订单数量。
坡铣： 毛坯
刀尖类型： 方头立铣
侧铣/方肩铣削： 方头立铣
螺旋角： 45°
Tool Dimensions: Flute Configuration: 5
Sending to {{cadTool}} in progress...
Downloaded file will be available after import in the {{cadTool}} tool library.
MetricInch
| 物料号 | 2863941 |
| 公制样本编号 | 4C0503001 |
| 英制样本编号 | 4C0503001 |
| 材质 | UNCOATED |
| 机床侧适配接头样式 | Straight-Cylindrical |
| [Z] 排屑槽数量 | 5 |
| [D1] 有效的切削直径 | 3.175 mm |
| [D1] 有效的切削直径 | 0.125 in |
| [D]适配接头/刀柄/镗孔直径 | 3.175 mm |
| [D]适配接头/刀柄/镗孔直径 | 0.125 in |
| [AP1MAX] 第一个最大切深 | 12.7 mm |
| [AP1MAX] 第一个最大切深 | 0.5 in |
| [L] 总长 | 38.1 mm |
| [L] 总长 | 1.5 in |
Uses and application
Features and benefits
- Center cutting.
- Standard items listed. Additional styles and coatings made to order.
通过创建解决方案计算速度和进给
创建解决方案后，只需选择进给和速度图标，我们的系统将提供建议。您可以通过添加您的机床和参数来定制信息，或者使用滑块进行调整。
应用数据
Series 4C03 • List 4C03 4C43
 |  | |||||||||||||||||||||
| Uncoated | TiCN | TiAlN | ||||||||||||||||||||
| A | 切削速度 | 切削速度 | 切削速度 | D1 | ||||||||||||||||||
| SFM | SFM | SFM | frac. | 1/8 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 | 5/8 | 3/4 | 1 | ||||||||||
| 材料 分组 | ap | ae | 最小值 | 最大值 | 最小值 | 最大值 | 最小值 | 最大值 | dec. | .1250 | .1880 | .2500 | .3130 | .3750 | .5000 | .6250 | .7500 | 1.000 | ||||
| P | 1 | 1 x D | 0.4 x D | 200 | – | 260 | 400 | – | 520 | 500 | – | 650 | Fz | .0009 | .0014 | .0018 | .0023 | .0027 | .0035 | .0039 | .0043 | .0050 |
| 2 | 1 x D | 0.4 x D | 180 | – | 250 | 360 | – | 500 | 450 | – | 625 | Fz | .0009 | .0014 | .0018 | .0023 | .0027 | .0035 | .0039 | .0043 | .0050 | |
| 3 | 1 x D | 0.4 x D | 160 | – | 210 | 320 | – | 420 | 400 | – | 525 | Fz | .0007 | .0011 | .0015 | .0020 | .0023 | .0029 | .0034 | .0038 | .0046 | |
| 4 | 1 x D | 0.2 x D | – | – | – | 240 | – | 380 | 300 | – | 475 | Fz | .0007 | .0010 | .0014 | .0018 | .0020 | .0026 | .0030 | .0033 | .0039 | |
| 5 | 1 x D | 0.4 x D | – | – | – | 160 | – | 260 | 200 | – | 325 | Fz | .0006 | .0009 | .0012 | .0016 | .0018 | .0023 | .0027 | .0030 | .0036 | |
| 6 | 1 x D | 0.2 x D | – | – | – | 120 | – | 180 | 150 | – | 225 | Fz | .0005 | .0008 | .0010 | .0013 | .0015 | .0019 | .0022 | .0024 | .0028 | |
| M | 1 | 1 x D | 0.4 x D | 100 | – | 130 | 200 | – | 265 | 260 | – | 330 | Fz | .0007 | .0011 | .0015 | .0020 | .0023 | .0029 | .0034 | .0038 | .0046 |
| 2 | 1 x D | 0.4 x D | – | – | – | 160 | – | 210 | 200 | – | 260 | Fz | .0006 | .0009 | .0012 | .0016 | .0018 | .0023 | .0027 | .0030 | .0036 | |
| 3 | 1 x D | 0.4 x D | – | – | – | 160 | – | 210 | 200 | – | 260 | Fz | .0005 | .0008 | .0010 | .0013 | .0015 | .0019 | .0022 | .0024 | .0028 | |
| K | 1 | 1 x D | 0.4 x D | 150 | – | 200 | 300 | – | 420 | 390 | – | 520 | Fz | .0009 | .0014 | .0018 | .0023 | .0027 | .0035 | .0039 | .0043 | .0050 |
| 2 | 1 x D | 0.4 x D | – | – | – | 300 | – | 370 | 360 | – | 460 | Fz | .0007 | .0011 | .0015 | .0020 | .0023 | .0029 | .0034 | .0038 | .0046 | |
| 3 | 1 x D | 0.4 x D | – | – | – | 265 | – | 345 | 330 | – | 430 | Fz | .0006 | .0009 | .0012 | .0016 | .0018 | .0023 | .0027 | .0030 | .0036 | |
| S | 1 | 1 x D | 0.2 x D | – | – | – | 120 | – | 220 | 150 | – | 275 | Fz | .0007 | .0011 | .0015 | .0020 | .0023 | .0029 | .0034 | .0038 | .0046 |
| 2 | 1 x D | 0.2 x D | – | – | – | 50 | – | 100 | 70 | – | 130 | Fz | .0004 | .0006 | .0008 | .0010 | .0012 | .0016 | .0018 | .0020 | .0025 | |
| 3 | 1 x D | 0.3 x D | – | – | – | 130 | – | 208 | 160 | – | 260 | Fz | .0006 | .0009 | .0012 | .0016 | .0018 | .0023 | .0027 | .0030 | .0036 | |
| 4 | 1 x D | 0.3 x D | – | – | – | 120 | – | 170 | 150 | – | 210 | Fz | .0005 | .0008 | .0011 | .0014 | .0017 | .0022 | .0025 | .0028 | .0033 | |
| H | 1 | 1 x D | 0.2 x D | – | – | – | 210 | – | 360 | 260 | – | 450 | Fz | .0007 | .0010 | .0014 | .0018 | .0020 | .0026 | .0030 | .0033 | .0039 |
Series 4C05 • List 4C15
|  | |||||||||||||||||||||
| Uncoated | TiCN | TiAlN | ||||||||||||||||||||
| A | 切削速度 | 切削速度 | 切削速度 | D1 | ||||||||||||||||||
| SFM | SFM | SFM | frac. | 1/8 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 | 5/8 | 3/4 | 1 | ||||||||||
| 材料 分组 | ap | ae | 最小值 | 最大值 | 最小值 | 最大值 | 最小值 | 最大值 | dec. | .1250 | .1880 | .2500 | .3130 | .3750 | .5000 | .6250 | .7500 | 1.000 | ||||
| P | 1 | 1.5 x D | 0.15 x D | 200 | – | 260 | 400 | – | 520 | 500 | – | 650 | Fz | .0009 | .0014 | .0018 | .0023 | .0027 | .0035 | .0039 | .0043 | .0050 |
| 2 | 1.5 x D | 0.15 x D | 180 | – | 250 | 360 | – | 500 | 450 | – | 625 | Fz | .0009 | .0014 | .0018 | .0023 | .0027 | .0035 | .0039 | .0043 | .0050 | |
| 3 | 1.5 x D | 0.1 x D | 160 | – | 210 | 320 | – | 420 | 400 | – | 525 | Fz | .0007 | .0011 | .0015 | .0020 | .0023 | .0029 | .0034 | .0038 | .0046 | |
| 4 | 1.5 x D | 0.1 x D | – | – | – | 240 | – | 380 | 300 | – | 475 | Fz | .0007 | .0010 | .0014 | .0018 | .0020 | .0026 | .0030 | .0033 | .0039 | |
| 5 | 1.5 x D | 0.1 x D | – | – | – | 160 | – | 260 | 200 | – | 325 | Fz | .0006 | .0009 | .0012 | .0016 | .0018 | .0023 | .0027 | .0030 | .0036 | |
| 6 | 1.5 x D | 0.1 x D | – | – | – | 120 | – | 180 | 150 | – | 225 | Fz | .0005 | .0008 | .0010 | .0013 | .0015 | .0019 | .0022 | .0024 | .0028 | |
| M | 1 | 1.5 x D | 0.15 x D | 100 | – | 130 | 200 | – | 265 | 260 | – | 330 | Fz | .0007 | .0011 | .0015 | .0020 | .0023 | .0029 | .0034 | .0038 | .0046 |
| 2 | 1.5 x D | 0.1 x D | – | – | – | 160 | – | 210 | 200 | – | 260 | Fz | .0006 | .0009 | .0012 | .0016 | .0018 | .0023 | .0027 | .0030 | .0036 | |
| 3 | 1.5 x D | 0.1 x D | – | – | – | 160 | – | 210 | 200 | – | 260 | Fz | .0005 | .0008 | .0010 | .0013 | .0015 | .0019 | .0022 | .0024 | .0028 | |
| K | 1 | 1.5 x D | 0.15 x D | 150 | – | 200 | 300 | – | 420 | 390 | – | 520 | Fz | .0009 | .0014 | .0018 | .0023 | .0027 | .0035 | .0039 | .0043 | .0050 |
| 2 | 1.5 x D | 0.15 x D | – | – | – | 300 | – | 370 | 360 | – | 460 | Fz | .0007 | .0011 | .0015 | .0020 | .0023 | .0029 | .0034 | .0038 | .0046 | |
| 3 | 1.5 x D | 0.1 x D | – | – | – | 265 | – | 345 | 330 | – | 430 | Fz | .0006 | .0009 | .0012 | .0016 | .0018 | .0023 | .0027 | .0030 | .0036 | |
| S | 1 | 1.5 x D | 0.1 x D | – | – | – | 120 | – | 220 | 150 | – | 275 | Fz | .0007 | .0011 | .0015 | .0020 | .0023 | .0029 | .0034 | .0038 | .0046 |
| 2 | 1.5 x D | 0.1 x D | – | – | – | 50 | – | 100 | 70 | – | 130 | Fz | .0004 | .0006 | .0008 | .0010 | .0012 | .0016 | .0018 | .0020 | .0025 | |
| 3 | 1.5 x D | 0.15 x D | – | – | – | 130 | – | 208 | 160 | – | 260 | Fz | .0006 | .0009 | .0012 | .0016 | .0018 | .0023 | .0027 | .0030 | .0036 | |
| 4 | 1.5 x D | 0.15 x D | – | – | – | 120 | – | 170 | 150 | – | 210 | Fz | .0005 | .0008 | .0011 | .0014 | .0017 | .0022 | .0025 | .0028 | .0033 | |
| H | 1 | 1.5 x D | 0.1 x D | – | – | – | 210 | – | 360 | 260 | – | 450 | Fz | .0007 | .0010 | .0014 | .0018 | .0020 | .0026 | .0030 | .0033 | .0039 |
