      SAFE-LOCK™ Heavy-Duty Shrink Fit Toolholders
      SAFE-LOCK™ Heavy-Duty Shrink Fit Toolholders
      SAFE-LOCK™ Heavy-Duty Shrink Fit Toolholders
      SAFE-LOCK™ Heavy-Duty Shrink Fit Toolholders
      下载CAD图纸
      SDS
      Send to Fusion 360

      TT SF HPV HSK100 Form A Heavy Duty • Safe-Lock

      SAFE-LOCK™ Heavy-Duty Shrink Fit Toolholders

      Metric
      Inch
      SAP 材料编号 5090231
      ISO 目录编号 HSK100ASFHDTT150551
      ANSI 目录编号 HSK100ASFHDTT150551

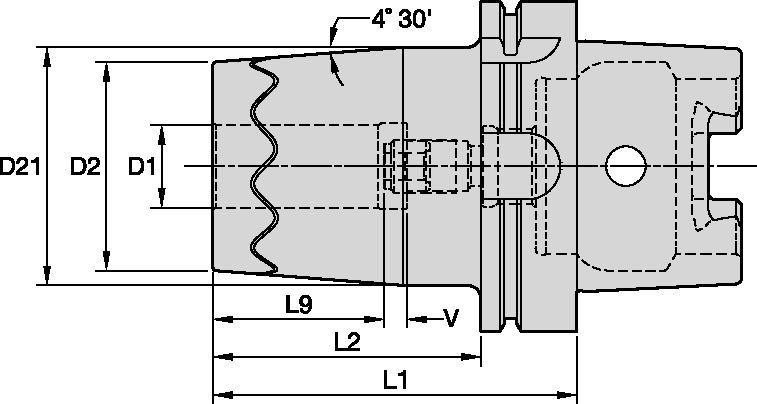

      [D1] 适配接头/刀柄/镗孔直径 38.1000 mm
      [D1] 适配接头/刀柄/镗孔直径 1.500 in
      [D2] 工件侧钻体直径 1 82.0000 mm
      [D2] 工件侧钻体直径 1 3.228 in
      [D21] 工件侧钻体直径 2 94.0000 mm
      [D21] 工件侧钻体直径 2 3.700 in
      [L1] 量规长度 140.0000 mm
      [L1] 量规长度 5.511 in
      [L2] 可用长度 111.0000 mm
      [L2] 可用长度 4.370 in
      [L9] 夹持长度 77.0000 mm
      [L9] 夹持孔长度 3.031 in
      [V] 调节范围 10.0000 mm
      [V] 调节范围 .3937 in
      重量（千克） 6.42
      See all Product Variants

      Features and benefits



      • SAFE-LOCK™, innovative and unique.

      • Ultra short and heavy-duty design.

      • Suitable for carbide and HSS cutting tools.

      • Need ≥ 20 kW shrink unit.

      备件 for TT SF HPV HSK100 Form A Heavy Duty • Safe-Lock

      Spare Part
        STOP SCREW TTSS16014M STOP SCREW TTSS16014M
        STOP SCREW TTSS16014M
