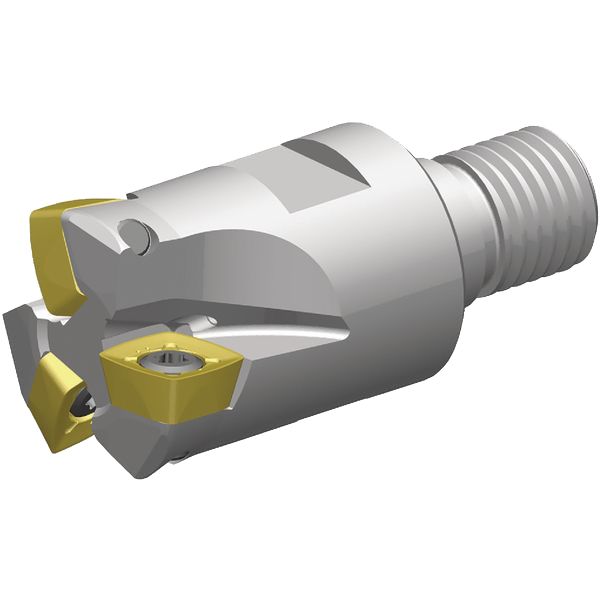

VXF™-12 • 螺口式立铣刀 • 公制

Name: VXF™-12 • 螺口式立铣刀 • 公制
SKU: 6596723
Rating: 0 (0 reviews)

Screw-On 立铣刀 • 公制

Metric

Inch

SAP 材料编号	6596723
ISO 目录编号	VXF032Z03M16XD12
ANSI 目录编号	VXF032Z03M16XD12
[D1] 有效的切削直径	13.875 mm
[D1] 有效的切削直径	.5463 in
[D]适配接头/刀柄/镗孔直径	29 mm
[D]适配接头/刀柄/镗孔直径	1.141 in
[L2] 刀头长度	43 mm
[L2] 刀头长度	1.692 in
[G3X] 外部连接螺纹尺寸	M16
[AP1MAX] 第一个最大切深	2.5 mm
[AP1MAX] 第一个最大切深	.0985 in
[D1MAX] 最大切削直径	32 mm
[D1MAX] 最大切削直径	1.259 in
冷却液供应	Y
[DPM] 机床侧定位孔直径	16.988 mm
[DPM] 机床侧定位孔直径	.6688 in
最大坡铣角度	1.8
最大 RPM	31500
刀片数量	3
[WF] 平面宽度	23.95 mm
[WF] 平面宽度	.9429 in
重量（千克）	0.19

See all Product Variants

Uses and application

刀座
100018357
螺旋铣削
坡铣：毛坯
刀柄 — 旋入式
Inclined Square End Mill
插铣
Counter Boring
Spiral Circular

Workpiece Materials

P 钢

M 不锈钢

K 铸铁

N 非铁材质

S 高温合金

H 淬火材料

刀片选择指南

	Light Machining		General Purpose		Heavy Machining
Material Group	Geometry	Grade	Geometry	Grade	Geometry	Grade
P1–P2	XDPT-MM	WP25PM	XDPT-MM	WS40PM	XDPT-MH	WP40PM
P3–P4	XDPT-MM	WP25PM	XDPT-MM	WS40PM	XDPT-MH	WP40PM
P5–P6	XDPT-MM	WP25PM	XDPT-MM	WS40PM	XDPT-MH	WP40PM
M1–M2	XDPT-MM	WS40PM	XDPT-MM	WS40PM	XDPT-MH	WP40PM
M3	XDPT-MM	WS40PM	XDPT-MM	WS40PM	XDPT-MH	WP40PM
S1–S2	XDPT-MM	WP25PM	XDPT-MM	WS40PM	XDPT-MH	WP40PM
S3	XDPT-MM	WS40PM	XDPT-MM	WS40PM	XDPT-MH	WP40PM
S4	XDPT-MM	WS40PM	XDPT-MM	WS40PM	XDPT-MH	WP40PM

Light Machining

General Purpose

Heavy Machining

Insert Geometry	Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae)															Insert Geometry
	5 %			10 %			20 %			30 %			40–100 %
.E..MM	0,43	1,39	2,20	0,31	0,99	1,56	0,23	0,74	1,15	0,20	0,64	1,00	0,19	0,59	0,92	.E..MM
.S..MH	0,62	1,57	2,41	0,45	1,12	1,70	0,33	0,84	1,26	0,29	0,73	1,10	0,27	0,67	1,00	.S..MH

Insert Geometry	Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae)															Insert Geometry
	5 %			10 %			20 %			30 %			40–100 %
.E..MM	0,49	1,59	2,52	0,35	1,13	1,78	0,26	0,84	1,31	0,23	0,73	1,14	0,21	0,67	1,04	.E..MM
.S..MH	0,70	1,80	2,76	0,51	1,28	1,94	0,38	0,95	1,44	0,33	0,83	1,25	0,30	0,76	1,14	.S..MH

Insert Geometry	Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae)															Insert Geometry
	5 %			10 %			20 %			30 %			40–100 %
.E..MM	0,36	1,15	1,81	0,26	0,83	1,29	0,19	0,62	0,96	0,17	0,54	0,83	0,15	0,49	0,76	.E..MM
.S..MH	0,51	1,30	1,99	0,37	0,93	1,41	0,28	0,70	1,05	0,24	0,61	0,91	0,22	0,55	0,83	.S..MH

Insert Geometry	Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae)															Insert Geometry
	5%			10%			20%			30%			40–100%
.E..MM	.018	.051	.094	.013	.035	.059	.009	.025	.042	.008	.022	.037	.007	.020	.033	.E..MM
.S..MH	.032	.070	.118	.023	.046	.071	.017	.033	.050	.014	.029	.043	.013	.026	.039	.S..MH

Insert Geometry	Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae)															Insert Geometry
	5%			10%			20%			30%			40–100%
.E..MM	.020	.058	.109	.014	.039	.067	.010	.028	.047	.009	.025	.041	.008	.022	.037	.E..MM
.S..MH	.036	.080	.141	.025	.052	.080	.019	.037	.056	.016	.032	.048	.015	.029	.043	.S..MH

Light Machining

General Purpose

Heavy Machining

Insert Geometry	Recommended Starting Feed per Tooth (Fz) in Relation to % of Radial Engagement (ae)															Insert Geometry
	5%			10%			20%			30%			40–100%
.E..MM	.015	.043	.076	.011	.029	.050	.008	.022	.036	.007	.019	.031	.006	.017	.028	.E..MM
.S..MH	.027	.058	.093	.019	.039	.059	.014	.028	.042	.012	.024	.036	.011	.022	.033	.S..MH

建议的初始速度 [米/分钟]*

Material Group		WP25PM			WP40PM			WS40PM
P	1	395	340	325	355	310	295	–	–	–
	2	330	290	240	300	260	215	–	–	–
	3	305	260	210	275	235	190	–	–	–
	4	270	220	180	245	205	160	–	–	–
	5	220	205	180	205	185	160	205	175	145
	6	200	150	120	180	140	110	180	130	95
M	1	245	215	200	235	205	185	250	205	170
	2	220	190	155	210	180	150	215	175	145
	3	170	145	115	155	140	110	175	130	100
S	1	50	40	30	50	40	35	50	40	30
	2	50	40	30	50	40	35	50	40	30
	3	60	50	30	60	50	35	60	50	30
	4	85	60	40	80	60	40	70	60	35

Recommended Starting Speeds [SFM]*

Material Group		WP25PM			WP40PM			WS40PM
P	1	1295	1115	1065	1165	1015	970	–	–	–
	2	1085	950	785	985	855	705	–	–	–
	3	1000	855	690	900	770	625	–	–	–
	4	885	720	590	805	675	525	–	–	–
	5	720	675	590	675	605	525	675	575	475
	6	655	490	395	590	460	360	590	425	310
M	1	805	705	655	770	675	605	820	675	560
	2	720	625	510	690	590	490	705	575	475
	3	560	475	375	510	460	360	575	425	330
S	1	165	130	100	165	130	115	165	130	100
	2	165	130	100	165	130	115	165	130	100
	3	195	165	100	195	165	115	195	165	100
	4	280	195	130	260	195	130	230	195	115

备件 for VXF™-12 • 螺口式立铣刀 • 公制

Spare Part ANTI-SEIZE LUBRICANT

TORX WRENCH TX20

INSERT SCREW
