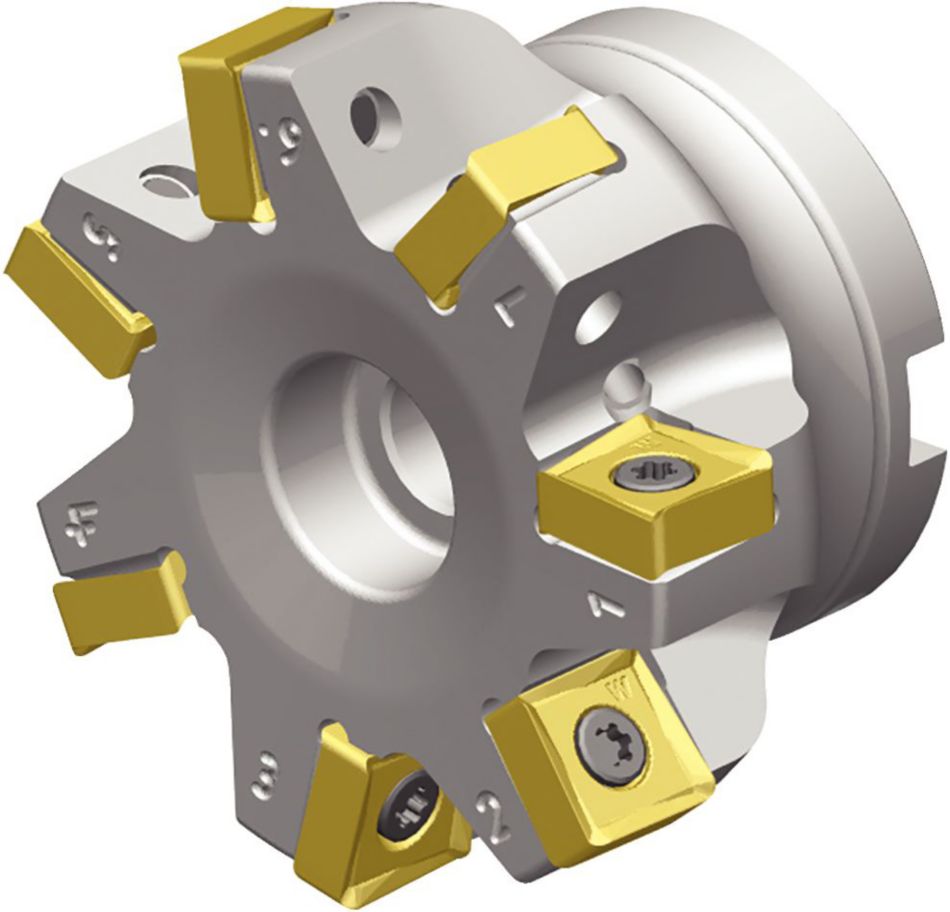

VSM890™-12 • Shell Mills • Inch

Name: VSM890™-12 • Shell Mills • Inch
SKU: 6596157
Rating: 0 (0 reviews)

Shell Mills • Inch

Metric

Inch

SAP Material Number	6596157
ISO Catalog Number	VSM890D600Z16S200SN12
ANSI Catalog Number	VSM890D600Z16S200SN12
[D1] Effective Cutting Diameter	152.4 mm
[D1] Effective Cutting Diameter	6 in
[D] Adapter / Shank / Bore Diameter	50.8 mm
[D] Adapter / Shank / Bore Diameter	2 in
[D6] Hub Diameter	123.825 mm
[D6] Hub Diameter	4.875 in
[L] Overall Length	60.452 mm
[L] Overall Length	2.38 in
[AP1MAX] 1st Maximum Cutting Depth	9.8 mm
[AP1MAX] 1st Maximum Cutting Depth	.3872 in
Number of Inserts	16
Max RPM	12500
Coolant Supply	Y
Weight Pounds	9.64

모든 제품 변형 보기

사용 및 응용 분야

100018357
슬로팅: 스퀘어 엔드
밀링 — 내부 쿨런트
사이드 밀링/숄더 밀링: 스퀘어 엔드
38295

공작물 재료

P Steel

M Stainless Steel

K Cast Iron

N Non-Ferrous

S High-Temp Alloys

H Hardened Materials

특징 및 장점

True 0° wall and stepping down capability.

Optimized chip gash design for proper chip evacuation.

User-friendly pocket numbering system.

Cutter bodies with internal coolant supply.

Less bur creation on the workpiece.

기계 측면

로드 중...

공작물 측면

로드 중...

인서트 선택 가이드

	Light Machining		General Purpose		Heavy Machining
Material Group	Geometry	Grade	Geometry	Grade	Geometry	Grade
P1–P2	SNHX-ML	WS40PM	SNHX-MM	WP40PM	SNHX-MM	WP40PM
P3–P4	SNHX-ML	WS40PM	SNHX-MM	WP40PM	SNHX-MM	WP40PM
P5–P6	SNHX-ML	WP25PM	SNHX-MM	WP40PM	SNHX-MM	WP40PM
M1–M2	SNHX-ML	WS40PM	SNHX-ML	WS40PM	SNHX-MM	WS40PM
M3	SNHX-ML	WS40PM	SNHX-ML	WS40PM	SNHX-MM	WS40PM
K1–K2	SNHX-MM	WK15CM	SNHX-MM	WK15CM	SNHX-MM	WK15CM
K3	SNHX-MM	WK15CM	SNHX-MM	WK15CM	SNHX-MM	WK15CM
N1–N2	SNHX-ALP	WN25PM	SNHX-ALP	WN25PM	SNHX-ALP	WN25PM
N3	SNHX-ALP	WN25PM	SNHX-ALP	WN25PM	SNHX-ALP	WN25PM
S1–S2	SNHX-ML	WP25PM	SNHX-ML	WS40PM	SNHX-MM	WS40PM
S3	SNHX-ML	WS40PM	SNHX-ML	WS40PM	SNHX-MM	WS40PM
S4	SNHX-ML	WS40PM	SNHX-ML	WS40PM	SNHX-MM	WS40PM
H1	SNHX-MM	WU10PM	SNHX-MM	WU10PM	–	–

권장 초기 이송[mm]

	Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae)
Insert Geometry	5%			10%			20%			30%			40–100%			Insert Geometry
.E..ALP	0,12	0,28	0,43	0,08	0,20	0,31	0,06	0,15	0,23	0,06	0,13	0,20	0,05	0,12	0,18	.E..ALP
.E..ML	0,17	0,32	0,60	0,13	0,23	0,44	0,09	0,18	0,33	0,08	0,15	0,28	0,08	0,14	0,26	.E..ML
.S..MM	0,23	0,36	0,82	0,17	0,26	0,59	0,13	0,20	0,44	0,11	0,17	0,38	0,10	0,16	0,35	.S..MM

Light Machining

General Purpose

Heavy Machining

권장 초기 이송[IPT]

	Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae)
Insert Geometry	5%			10%			20%			30%			40–100%			Insert Geometry
.E..ALP	.005	.010	.015	.003	.007	.011	.003	.005	.008	.002	.005	.007	.002	.004	.006	.E..ALP
.E..ML	.007	.012	.023	.005	.009	.017	.004	.007	.012	.003	.006	.011	.003	.005	.010	.E..ML
.S..MM	.009	.014	.032	.007	.010	.023	.005	.008	.017	.004	.007	.015	.004	.006	.014	.S..MM

Light Machining

General Purpose

Heavy Machining

권장 시작 속도[m/min]*

Material Group		WK15CM			WN25PM			WP25PM			WP35CM			WP40PM			WS40PM			WU10PM
P	1	–	–	–	–	–	–	330	285	270	455	395	370	295	260	245	–	–	–	–	–	–
	2	–	–	–	–	–	–	275	240	200	280	255	230	250	215	180	–	–	–	–	–	–
	3	–	–	–	–	–	–	255	215	175	255	230	205	230	195	160	–	–	–	–	–	–
	4	–	–	–	–	–	–	225	185	150	190	175	160	205	170	135	–	–	–	–	–	–
	5	–	–	–	–	–	–	185	170	150	260	230	210	170	155	135	170	145	120	–	–	–
	6	–	–	–	–	–	–	165	125	100	160	135	110	150	115	90	150	110	80	–	–	–
M	1	–	–	–	–	–	–	205	180	165	205	185	155	195	170	155	210	170	140	–	–	–
	2	–	–	–	–	–	–	185	160	130	185	160	140	175	150	125	180	145	120	–	–	–
	3	–	–	–	–	–	–	140	120	95	145	130	115	130	115	90	145	110	85	–	–	–
K	1	420	385	340	–	–	–	230	205	185	295	265	240	–	–	–	–	–	–	295	265	240
	2	335	295	275	–	–	–	180	160	150	235	210	190	–	–	–	–	–	–	230	205	190
	3	280	250	230	–	–	–	150	135	120	195	175	160	–	–	–	–	–	–	195	175	160
N	1	–	–	–	1075	945	875	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	2	–	–	–	945	875	760	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	3	–	–	–	945	875	760	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
S	1	–	–	–	–	–	–	40	35	25	–	–	–	–	–	–	40	35	25	–	–	–
	2	–	–	–	–	–	–	40	35	25	–	–	–	–	–	–	40	35	25	–	–	–
	3	–	–	–	–	–	–	50	40	25	–	–	–	–	–	–	50	40	25	–	–	–
	4	–	–	–	–	–	–	70	50	35	–	–	–	–	–	–	60	50	30	–	–	–
H	1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	160	130	90

권장 초기 속도[SFM]*

Material Group		WK15CM			WN25PM			WP25PM			WP35CM			WP40PM			WS40PM			WU10PM
P	1	–	–	–	–	–	–	1085	935	885	1490	1295	1210	970	855	805	–	–	–	–	–	–
	2	–	–	–	–	–	–	900	785	655	915	835	750	820	705	590	–	–	–	–	–	–
	3	–	–	–	–	–	–	835	705	575	835	750	670	755	640	525	–	–	–	–	–	–
	4	–	–	–	–	–	–	740	605	490	620	570	520	675	560	445	–	–	–	–	–	–
	5	–	–	–	–	–	–	605	560	490	850	750	685	560	510	445	560	475	395	–	–	–
	6	–	–	–	–	–	–	540	410	330	520	440	360	490	375	295	490	360	260	–	–	–
M	1	–	–	–	–	–	–	675	590	540	670	605	505	640	560	510	690	560	460	–	–	–
	2	–	–	–	–	–	–	605	525	425	605	520	455	575	490	410	590	475	395	–	–	–
	3	–	–	–	–	–	–	460	395	310	475	425	375	425	375	295	475	360	280	–	–	–
K	1	1380	1265	1115	–	–	–	755	675	605	965	865	785	–	–	–	–	–	–	970	870	785
	2	1100	970	900	–	–	–	590	525	490	770	685	620	–	–	–	–	–	–	755	675	625
	3	920	820	755	–	–	–	490	445	395	635	570	520	–	–	–	–	–	–	640	575	525
N	1	–	–	–	3525	3100	2870	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	2	–	–	–	3100	2870	2495	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	3	–	–	–	3100	2870	2495	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
S	1	–	–	–	–	–	–	130	115	80	–	–	–	130	115	100	130	115	80	–	–	–
	2	–	–	–	–	–	–	130	115	80	–	–	–	130	115	100	130	115	80	–	–	–
	3	–	–	–	–	–	–	165	130	80	–	–	–	165	130	100	165	130	80	–	–	–
	4	–	–	–	–	–	–	230	165	115	215	160	105	215	165	115	195	165	100	–	–	–
H	1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	525	425	295

예비 부품 for VSM890™-12 • Shell Mills • Inch

Spare Part ANTI-SEIZE LUBRICANT

TORX PLUS DRIVE WRENCH

COOLANT SCREW ASSEMBLY - 1-14 UNS

SCREW TORX PLUS M4X10-TXP15
