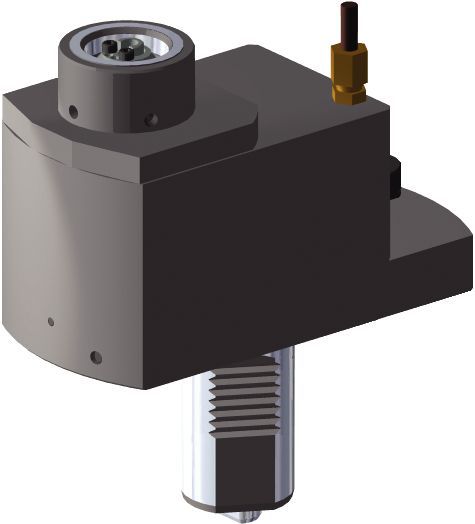

      Mazak™ • Herramienta a motor axial • KM™ • MMC 016
      Mazak™ • Herramienta a motor axial • KM™ • MMC 016
      Mazak™ • Herramienta a motor axial • KM™ • MMC 016
      Mazak™ • Herramienta a motor axial • KM™ • MMC 016

      Herramienta a motor axial • KM™ • TACU016KM40DA60908120, TACU016KM40DA60908125

      Mazak™ • Herramienta a motor axial • KM™ • MMC 016

      Metric
      Inch
      SAP Material Number 6401903
      ISO Catalog Number TACU016KM40DA60908125
      ANSI Catalog Number TACU016KM40DA60908125
      [CSWS] System Size Workpiece Side KM40
      Machine Mount Code 016
      [B1] Front Clearance 84.0000
      [B1] Front Clearance 3.307
      [B2] Overall Width 168.0000
      [B2] Overall Width 6.615
      [D] Adapter / Shank / Bore Diameter 40.0
      [D] Adapter / Shank / Bore Diameter 1.575
      [F] F Dimension 50.0000
      [F] F Dimension 1.969
      [H2] Overall Height 78.0000
      [H2] Overall Height 3.071
      [L] Overall Length 191.0000
      [L] Overall Length 7.520
      [L1] Gage Length 112.5000
      [L1] Gage Length 4.429
      Torque Machine Spindle Nm 50.000
      Coolant Pressure Bar 70.0
      Coolant Pressure PSI 1000.0
      Coolant Delivery I/E
      [CS1] Coolant Supply Exit Size G 1/8
      Max RPM 6000
      Weight Kilograms 6.94
      Torque Catalog Newton Meters 12-16
      Torque Catalog Foot Pounds 9-12
      See all Product Variants

      Features and benefits

      Machine Series:
      • Quick Turn Nexus 200, 250 M, MY (12 Station Turret)

      • Quick Turn Nexus 200, 250 MS, MSY (12 Station Turret)

      • Super Quadrex 200, 250 M (12 Station Turret)

      • Super Quick Turn 200, 250, M, MY (12 Station Turret)

      • Super Quick Turn 200, 250, MS, MSY (12 Station Turret)

      Recambios for Herramienta a motor axial • KM™ • TACU016KM40DA60908120, TACU016KM40DA60908125

      Spare Part
        KM40PKG3L
        KM40PKG3L
        Spare Part
          PARTES REFACC. ACC. NO CARBURO
          PARTES REFACC. ACC. NO CARBURO
