M370 • Shell Mills • iC08 • Medium • Inch

Name: M370 • Shell Mills • iC08 • Medium • Inch
SKU: 4047662

Shell Mills • Medium • Inch

Metric

Inch

Número de material SAP	4047662
Número de catálogo ISO	M370D200Z07S075WO08
Número de catálogo ANSI	M370D200Z07S075WO08

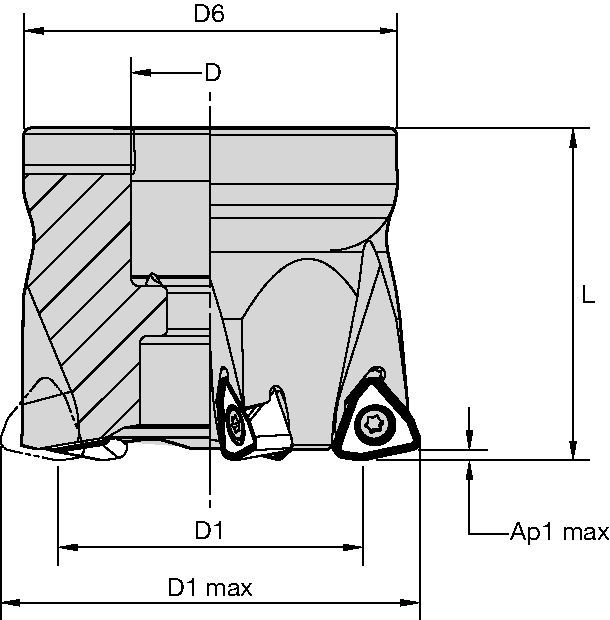

Diámetro de corte máximo [D1MAX]	50.8000 mm
Diámetro de corte máximo [D1MAX]	2.000 in
Diámetro de corte efectivo [D1]	36.8000 mm
Diámetro de corte efectivo [D1]	1.450 in
Adaptador/Mango/Diá int [D]	19.05 mm
Adaptador/Mango/Diá int [D]	.75 in
Diámetro de núcleo [D6]	44.0000 mm
Diámetro de núcleo [D6]	1.732 in
Longitud total [L]	40.0000 mm
Longitud total [L]	1.575 in
1.ª profundidad de corte máxima [AP1MAX]	1.2500 mm
1.ª profundidad de corte máxima [AP1MAX]	.0490 in
Número de plaquitas	7
Ángulo de vaciado máximo	0.830
RPM máx.	29000
Suministro de refrigerante	Y
Peso en kilogramos	0.38
Peso en libras	0.83

See all Product Variants

Uses and application

Fresado — lateral y planeado
Perfilado 3D
Fresado lateral/Fresado en escuadra: Desbaste
Ranurado: Placa cuadrada
Planeado
Rectificado en rampa: Material en bruto
Mecanizado de alojamientos
Fresado helicoidal
Vaciado
Fresado — Con refrigeración interna

Workpiece Materials

P Acero

M Acero inoxidable

K Fundición

N Materiales no ferrosos

S Aleaciones de alta temperatura

H Materiales endurecidos

Features and benefits

Double-sided, six cutting edges.

Highest metal removal rates.

First choice for roughing applications.

Guía para la selección de plaquitas

	Light Machining		General Purpose		Heavy Machining
Material Group	Geometry	Grade	Geometry	Grade	Geometry	Grade
P1–P2	...MM	WP40PM	...MM	WP40PM	...MM	WP40PM
P3–P4	...MM	WP25PM	...MM	WP40PM	...MH	WP40PM
P5–P6	...MM	WP25PM	...MH	WP25PM	...MH	WP40PM
M1–M2	...MM	WP25PM	...MM	WS30PM	...MM	WP40PM
M3	...MM	WP25PM	...MM	WP25PM	...MM	WP40PM
K1–K2	...MH	WK15CM	...MH	WK15CM	...MH	WK15CM
K3	...MH	TN6520	...MH	TN6520	...MH	WK15CM
N1–N2	–	–	–	–	–	–
N3	–	–	–	–	–	–
S1–S2	...MM	WP25PM	...MM	WS30PM	...MM	WP40PM
S3	...MM	WS30PM	...MM	WS30PM	...MM	WP40PM
S4	...MM	WS30PM	...MM	WP40PM	...MM	WP40PM
H1	...MH	WP25PM	–	–	–	–

Avances iniciales recomendados [mm]

Light Machining

General Purpose

Heavy Machining

Insert Geometry	Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae)															Insert Geometry
	5 %			10 %			20 %			30 %			40 100 %
..MM	0,90	1,67	4,09	0,65	1,19	2,83	0,48	0,88	2,08	0,42	0,77	1,80	0,38	0,70	1,64	..MM
..MH	0,90	2,34	5,00	0,65	1,66	3,41	0,48	1,23	2,49	0,42	1,07	2,16	0,38	0,98	1,97	..MH

Recommended Starting Feeds [IPT]

Insert Geometry	Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae)															Insert Geometry
	5%			10%			20%			30%			40 100%
...MM	.035	.061	.150	.025	.044	.104	.019	.033	.076	.017	.028	.066	.015	.026	.061	...MM
...MH	.035	.092	.197	.025	.065	.134	.019	.048	.098	.017	.042	.085	.015	.038	.078	...MH

Light Machining

General Purpose

Heavy Machining

Material Group		TN6525			TN6540			WK15CM			WP25PM			WP35CM			WP40PM			WS30PM			WS40PM			WU35PM
P	1	1340	1045	925	1180	925	785	–	–	–	1295	1120	1060	1790	1555	1460	1165	1025	965	–	–	–	–	–	–	850	750	705
	2	1045	830	710	830	630	550	–	–	–	1080	940	785	1105	1000	905	985	845	710	–	–	–	–	–	–	720	620	520
	3	925	710	610	710	550	450	–	–	–	1000	845	690	1000	905	805	905	770	630	–	–	–	–	–	–	655	555	455
	4	770	550	475	590	430	355	–	–	–	890	725	590	750	690	630	805	670	535	–	–	–	–	–	–	590	490	390
	5	1025	770	650	785	590	490	–	–	–	725	670	590	1025	905	830	670	610	535	–	–	–	560	475	395	490	440	390
	6	670	535	430	535	395	335	–	–	–	650	490	395	630	535	430	590	450	355	–	–	–	490	360	260	425	325	260
M	1	630	395	260	430	260	200	–	–	–	805	710	650	805	725	610	770	670	610	890	785	725	690	560	460	555	490	440
	2	395	260	155	260	155	140	–	–	–	725	630	510	725	630	550	690	590	490	805	710	570	590	475	395	505	425	360
	3	415	260	180	275	155	140	–	–	–	550	475	370	570	510	450	510	450	355	610	535	415	475	360	280	375	325	260
K	1	905	805	725	725	670	590	1655	1520	1340	905	805	725	1165	1045	940	–	–	–	–	–	–	–	–	–	–	–	–
	2	710	630	590	570	510	450	1320	1165	1080	710	630	590	925	830	750	–	–	–	–	–	–	–	–	–	–	–	–
	3	590	535	475	510	475	415	1105	985	905	590	535	475	770	690	630	–	–	–	–	–	–	–	–	–	–	–	–
N	1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	2	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	3	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
S	1	–	–	–	155	120	95	–	–	–	155	140	95	–	–	–	155	140	120	180	155	120	130	115	80	110	95	80
	2	–	–	–	80	60	40	–	–	–	155	140	95	–	–	–	155	140	120	180	155	120	130	115	80	110	95	80
	3	–	–	–	235	140	95	–	–	–	200	155	95	–	–	–	200	155	120	215	180	120	165	130	80	145	110	80
	4	–	–	–	200	95	80	–	–	–	275	200	140	260	200	130	260	200	140	335	235	155	195	165	100	195	145	95
H	1	–	–	–	–	–	–	–	–	–	475	355	275	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	2	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	3	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–

Recambios for M370 • Shell Mills • iC08 • Medium • Inch

Hardware CHAVE TORX DT-9IP

TORX PLUS SCREW M3 X 0.50 X 9 LONG

REFACCIONES *10 PZAS/PQTE*

SHCS W/COOLANT GROOVE

TORX PLUS SCREW (M4x0.7x11,5 -6G) T15P
