M8065HD • Shell Mills • Heavy-Duty Face Milling

Download CAD Drawings SDS

M8065HD • 26° • Shell Mills • Inch

Name: M8065HD • 26° • Shell Mills • Inch
SKU: 6921247

M8065HD • Shell Mills • Heavy-Duty Face Milling

Metric

Inch

Número de material SAP	6921247
Número de catálogo ISO	M8065HU600Z11S200SN15
Número de catálogo ANSI	M8065HU600Z11S200SN15

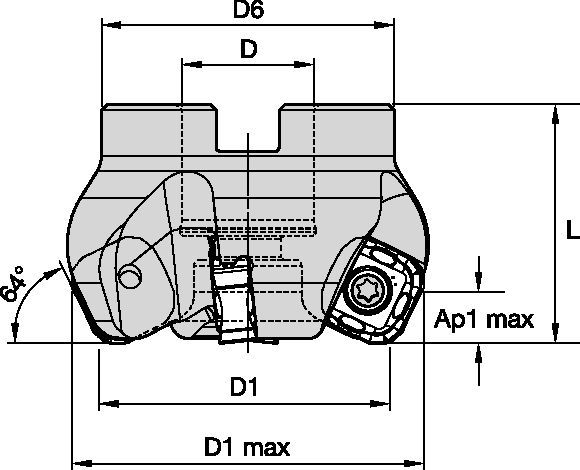

Diámetro de corte efectivo [D1]	152.4000 mm
Diámetro de corte efectivo [D1]	6.000 in
Diámetro de corte máximo [D1MAX]	161.2392 mm
Diámetro de corte máximo [D1MAX]	6.348 in
Adaptador/Mango/Diá int [D]	50.8 mm
Adaptador/Mango/Diá int [D]	2.0 in
Diámetro de núcleo [D6]	123.8250 mm
Diámetro de núcleo [D6]	4.875 in
Longitud total [L]	60.4520 mm
Longitud total [L]	2.380 in
Longitud de calibre [L1]	60.4520 mm
Longitud de calibre [L1]	2.380 in
1.ª profundidad de corte máxima [AP1MAX]	9.0000 mm
1.ª profundidad de corte máxima [AP1MAX]	.3543 in
Número de plaquitas	11
Suministro de refrigerante	N
Peso en libras	9.99

See all Product Variants

Uses and application

Planeado
Fresado lateral/Fresado en escuadra: Bisel simplificado

Workpiece Materials

P Acero

M Acero inoxidable

K Fundición

S Aleaciones de alta temperatura

Guía para la selección de plaquitas

	Light Machining		General Purpose		Heavy Machining
Material Group	Geometry	Grade	Geometry	Grade	Geometry	Grade
P1–P2	.S..MM	WP35CM	.S..MM	WP35CM	.S..MM	WU20PM
P3–P4	.S..MM	WP35CM	.S..MM	WP35CM	.S..MM	WU20PM
P5–P6	.S..MM	WP35CM	.S..MM	WP35CM	.S..MM	WP35CM
M1–M2	.S..MM	WU20PM	.S..MM	WU20PM	.S..MM	WU20PM
M3	.S..MM	WP35CM	.S..MM	WP35CM	.S..MM	WP35CM
K1–K2	.S..MM	WK15CM	.S..MM	WK15CM	.S..MM	WU20PM
K3	.S..MM	WU20PM	.S..MM	WU20PM	.S..MM	WK15CM
N1–N2	.S..MM	WU20PM	.S..MM	WU20PM	.S..MM	WU20PM
N3	.S..MM	WU20PM	.S..MM	WU20PM	.S..MM	WU20PM
S1–S2	.S..MM	WU20PM	.S..MM	WU20PM	.S..MM	WU20PM
S3	.S..MM	WU20PM	.S..MM	WU20PM	.S..MM	WU20PM
S4	.S..MM	WP35CM	.S..MM	WU20PM	.S..MM	WU20PM

Light Machining

General Purpose

Heavy Machining

Insert Geometry	Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae)															Insert Geometry
	5%			10%			20%			30%			40–100%
.S..MM	0,22	0,65	1,07	0,16	0,47	0,77	0,12	0,35	0,58	0,10	0,31	0,50	0,10	0,28	0,46	.S..MM

Light Machining

General Purpose

Heavy Machining

Insert Geometry	Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae)															Insert Geometry
	5%			10%			20%			30%			40-100%
.S..MM	.008	.026	.042	.006	.018	.030	.005	.014	.023	.004	.012	.020	.004	.011	.018	.S..MM

Material Group		WP35CM			WK15CM			WU20PM
P	1	455	395	370	—	—	—	330	290	270
	2	280	255	230	—	—	—	275	250	200
	3	255	230	205	—	—	—	255	220	175
	4	190	175	160	—	—	—	225	190	150
	5	260	230	210	—	—	—	185	175	150
	6	160	135	—	—	—	—	165	130	100
M	1	205	185	155	—	—	—	205	180	165
	2	185	160	140	—	—	—	185	160	130
	3	145	130	115	—	—	—	140	120	95
K	1	295	265	240	420	385	340	250	220	185
	2	235	210	190	335	295	275	200	180	150
	3	195	175	160	280	250	230	180	150	120
N	1	—	—	—	—	—	—	550	470	400
	2	—	—	—	—	—	—	550	470	400
	3	—	—	—	—	—	—	400	350	300
S	1	—	—	—	—	—	—	40	35	25
	2	—	—	—	—	—	—	40	35	25
	3	—	—	—	—	—	—	50	40	25
	4	—	—	—	—	—	—	70	50	35
H	1	—	—	—	—	—	—	110	80	70

Material Group		WP35CM			WK15CM			WU20PM
P	1	1490	1300	1210	—	—	—	1080	950	890
	2	920	840	750	—	—	—	900	820	660
	3	840	750	670	—	—	—	840	720	570
	4	620	570	520	—	—	—	740	620	490
	5	850	750	690	—	—	—	610	570	490
	6	520	440	—	—	—	—	540	430	330
M	1	670	610	510	—	—	—	670	590	540
	2	610	520	460	—	—	—	610	520	430
	3	480	430	380	—	—	—	460	390	310
K	1	970	870	790	1380	1260	1120	820	720	610
	2	770	690	620	1100	970	900	660	590	490
	3	640	570	520	920	820	750	590	490	390
N	1	—	—	—	—	—	—	1800	1540	1310
	2	—	—	—	—	—	—	1800	1540	1310
	3	—	—	—	—	—	—	1310	1150	980
S	1	—	—	—	—	—	—	130	110	80
	2	—	—	—	—	—	—	130	110	80
	3	—	—	—	—	—	—	160	130	80
	4	—	—	—	—	—	—	230	160	110
H	1	—	—	—	—	—	—	360	260	230

Recambios for M8065HD • 26° • Shell Mills • Inch

PORTA HERRAMIENTAS Y PARTES PARA ESTILO

Insert Screw M4.5 X 0,75 X 14 LG

DESTORNILLADOR TX20 170.026

Spare Part ANTI-SEIZE LUBRICANT
