| Nr materiału | 6904854 |

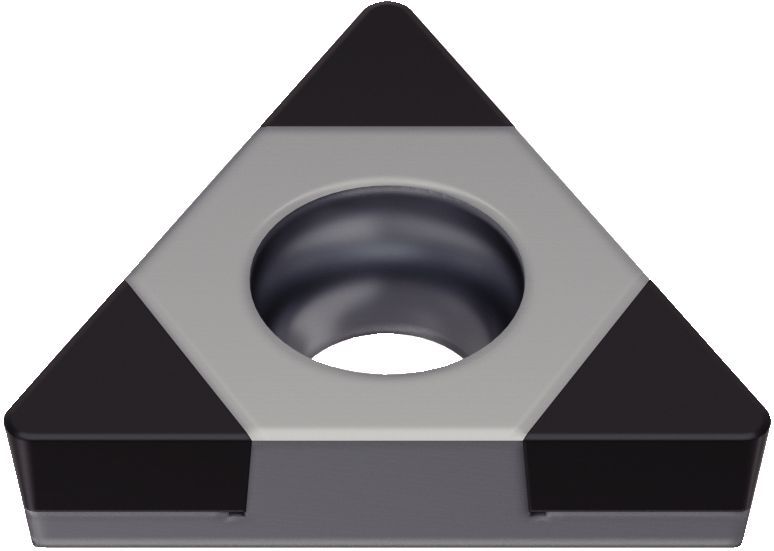

| Nr katalogowy ISO | TCGW110208S01015MT |
| Nr katalogowy ASI | TCGW2152S0415MT |
| Grade | WBH20P |
| [D] Insert IC Size | 6.35 mm |
| [D] Insert IC Size | 0.25 in |
| [L10] Insert Cutting Edge Length | 11 mm |
| [L10] Insert Cutting Edge Length | 0.433 in |
| [S] Insert Thickness | 2.401 mm |
| [S] Insert Thickness | 0.0945 in |
| [Rε] Corner Radius | 0.8 mm |
| [Rε] Corner Radius | 0.031 in |
| [D1] Insert Hole Size | 2.8 mm |
| [D1] Insert Hole Size | 0.11 in |
Gatunki
WBH20P
A PVD-AlTiN coating over a low-content, CBN tip brazed onto a carbide insert. Designed for roughing to finishing of hardened steels (>45 HRC). Use on bearing steel, hot and cold work tool steels, high-speed steels, die steels, case-hardened steels, carburized and nitrided irons, and some hard coatings.
