| Nr materiału | 2021310 |

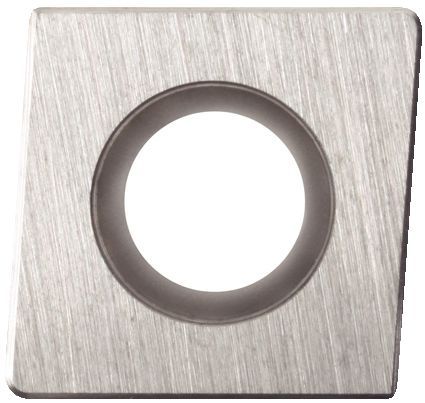

| Nr katalogowy ISO | MDHW120408 |
| Nr katalogowy ANSI | MDHW120408 |
| Grade | TN5515 |
| Cutting Edges per Insert | 2 |
| [D] Insert IC Size | 12.7 mm |
| [D] Insert IC Size | 0.5 in |
| [D1] Insert Hole Size | 5.5 mm |
| [D1] Insert Hole Size | 0.2165 in |
| [L10] Insert Cutting Edge Length | 12.731 mm |
| [L10] Insert Cutting Edge Length | 0.5012 in |
| [M] Gage Dimension | 2.583 mm |
| [M] Gage Dimension | 0.1017 in |
| [S] Insert Thickness | 4.76 mm |
| [S] Insert Thickness | 0.1875 in |
| [Rε] Corner Radius | 0.8 mm |
| [Rε] Corner Radius | 0.031 in |
Gatunki
TN5515
Coated carbide grade TN5515 has an MT-CVD-TiN-TiCN-Al203 coating. Engineered for a
balanced toughness and wear ratio. Ideal for light to medium machining of all cast irons.
Złóż nowe rozwiązanie aby obliczyc parametry posuwu i prędkości
Po złóżeniu rozwiązania wybierz ikonę "Posuwy i prędkości" a system pokaże rekomendowane wartości. Możesz doprecyzować wyniki dodając maszynę i jej specyfikacje lub zmień wartości początkowe Używając suwaki.
| TN7525 | TN7535 | TN450 | TTM | TTR | |||||||||||||
| Frez | Typ płytki | VDI 3323 | hm* (mm) | ||||||||||||||
| M900 | MDHX 09T308 | – | 0,06 | 0,08 | 0,10 | 0,06 | 0,08 | 0,10 | 0,06 | 0,08 | 0,10 | 0,06 | 0,08 | 0,10 | 0,06 | 0,08 | 0,10 |
| M900 | MDHW 120408 | – | 0,08 | 0,10 | 0,12 | 0,08 | 0,10 | 0,12 | 0,08 | 0,10 | 0,12 | 0,08 | 0,10 | 0,12 | 0,08 | 0,10 | 0,12 |
| Grupa materiałowa | vc (m/min) | ||||||||||||||||
| P | 1 | 330 | 250 | 210 | 280 | 215 | 185 | 250 | 215 | 200 | 170 | 150 | 140 | 135 | 120 | 110 | |
| 2 | 250 | 195 | 170 | 190 | 150 | 130 | 180 | 150 | 140 | 120 | 100 | 90 | 95 | 80 | 70 | ||
| 3 | 210 | 160 | 145 | 160 | 120 | 110 | 150 | 130 | 120 | 100 | 80 | 70 | 80 | 65 | 55 | ||
| 4 | 215 | 170 | 145 | 165 | 130 | 110 | 160 | 140 | 130 | 110 | 85 | 80 | 90 | 70 | 65 | ||
| 5 | 185 | 130 | 115 | 140 | 100 | 85 | 130 | 110 | 100 | 85 | 70 | 60 | 70 | 55 | 50 | ||
| 6 | 240 | 185 | 150 | 185 | 140 | 115 | 180 | 150 | 140 | 120 | 100 | 90 | 95 | 80 | 70 | ||
| 7 | 185 | 145 | 120 | 140 | 110 | 90 | 140 | 120 | 110 | 90 | 80 | 70 | 70 | 65 | 55 | ||
| 8 | 160 | 120 | 105 | 120 | 90 | 80 | 120 | 100 | 90 | 80 | 60 | 55 | 65 | 50 | 45 | ||
| 9 | 145 | 105 | 90 | 110 | 80 | 70 | 100 | 70 | 60 | 70 | 50 | 40 | 55 | 40 | 30 | ||
| 10 | 185 | 145 | 130 | 140 | 110 | 100 | 160 | 135 | 120 | 110 | 85 | 80 | 90 | 70 | 65 | ||
| 11 | 120 | 95 | 80 | 90 | 70 | 60 | 100 | 70 | 55 | 70 | 50 | 40 | 55 | 40 | 30 | ||
| 12 | 235 | 175 | 150 | 180 | 135 | 115 | 170 | 150 | 140 | 115 | 90 | 85 | 90 | 70 | 70 | ||
| 13.1 | 205 | 145 | 120 | 155 | 110 | 90 | 140 | 120 | 110 | 100 | 80 | 70 | 80 | 65 | 55 | ||
| 13.2 | 100 | 70 | 60 | 80 | 55 | 45 | 70 | 60 | 55 | 50 | 40 | 35 | 40 | 30 | 30 | ||
| TN7525 | TN7535 | TN450 | TTM | TTR | |||||||||||||
| Frez | Typ płytki | VDI 3323 | hm* (mm) | ||||||||||||||
| M900 | MDHX 09T308 | – | 0,06 | 0,08 | 0,10 | 0,06 | 0,08 | 0,10 | 0,06 | 0,08 | 0,10 | 0,06 | 0,08 | 0,10 | 0,06 | 0,08 | 0,10 |
| M900 | MDHW 120408 | – | 0,08 | 0,10 | 0,12 | 0,08 | 0,10 | 0,12 | 0,08 | 0,10 | 0,12 | 0,08 | 0,10 | 0,12 | 0,08 | 0,10 | 0,12 |
| Grupa materiałowa | vc (m/min) | ||||||||||||||||
| M | 14.1 | 240 | 200 | 160 | 220 | 180 | 160 | 150 | 90 | 80 | 120 | 80 | 70 | 100 | 70 | 50 | |
| 14.2 | 190 | 160 | 135 | 180 | 150 | 135 | 130 | 80 | 70 | 90 | 60 | 55 | 80 | 50 | 40 | ||
| 14.3 | 140 | 120 | 100 | 130 | 110 | 100 | 100 | 65 | 55 | 65 | 50 | 40 | 60 | 40 | 30 | ||
| 14.4 | 120 | 100 | 80 | 110 | 90 | 80 | 75 | 45 | 40 | 60 | 40 | 35 | 50 | 35 | 25 | ||
| TN5515 | THM | |||||||
| Frez | Typ płytki | VDI 3323 | hm* (mm) | |||||
| M900 | MDHX09T308 | – | 0,08 | 0,10 | 0,12 | 0,08 | 0,10 | 0,12 |
| M900 | MDHW120408 | – | 0,10 | 0,12 | 0,14 | 0,10 | 0,12 | 0,14 |
| Grupa materiałowa | vc (m/min) | |||||||
| K | 15 | 295 | 215 | 185 | 135 | 100 | 85 | |
| 16 | 225 | 170 | 145 | 100 | 80 | 70 | ||
| 17 | 250 | 185 | 150 | 120 | 90 | 75 | ||
| 18 | 185 | 110 | 80 | 85 | 60 | 40 | ||
| 19 | 255 | 150 | 120 | 120 | 75 | 50 | ||
| 20 | 195 | 125 | 90 | 95 | 60 | 40 | ||
| THM | |||||
| Frez | Typ płytki | VDI 3323 | hm* (mm) | ||
| M900 | MDHX09T308 | – | 0,08 | 0,10 | 0,12 |
| M900 | MDHW120408 | – | 0,10 | 0,12 | 0,14 |
| Grupa materiałowa | vc (m/min) | ||||
| N | 21 | 1000 | 750 | 600 | |
| 22 | 500 | 360 | 300 | ||
| 23 | 1000 | 750 | 600 | ||
| 24 | 800 | 600 | 500 | ||
| 25 | 500 | 350 | 250 | ||
| 27 | 400 | 250 | 180 | ||
| 28 | 300 | 180 | 120 | ||
| TN5515 | THM | |||||||
| Frez | Typ płytki | VDI 3323 | hm* (mm) | |||||
| M900 | MDHX09T308 | – | 0,05 | 0,08 | 0,10 | 0,06 | 0,08 | 0,10 |
| M900 | MDHW120408 | – | 0,07 | 0,10 | 0,12 | 0,08 | 0,10 | 0,12 |
| Grupa materiałowa | vc (m/min) | |||||||
| S | 31 | 48 | 36 | 30 | 36 | 28 | 24 | |
| 32 | 40 | 30 | 25 | 30 | 23 | 20 | ||
| 33 | 32 | 24 | 20 | 24 | 19 | 16 | ||
| 34 | 26 | 19 | 14 | 20 | 15 | 12 | ||
| 35 | 26 | 19 | 14 | 20 | 15 | 12 | ||
| 36 | – | – | – | 80 | 50 | 40 | ||
| 37 | – | – | – | 70 | 46 | 35 | ||
