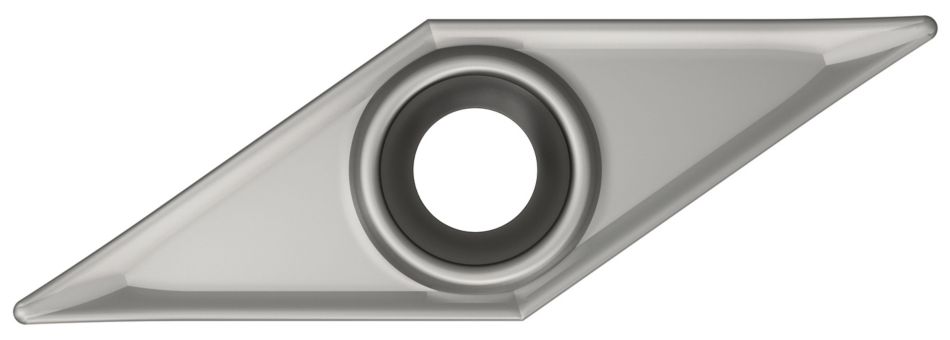

VBGT-AL • Inserts for Aluminum
WIDIA™ Inserts • VBGT-AL • Machining Aluminum
Features and benefits
- High positive rake on the nose and CE, less cutting forces.
Uses and application
Turning
Facing
Chamfering
Profiling
Boring
100788769
Workpiece Materials
N
Non-Ferrous
Filters and Columns
Filters
Filters
Filters
View filters in
Metric
Inch
Workpiece Material
Workpiece Material
-
N Non-Ferrous Materials (2)
-
N1Wrought Aluminum(2)
-
N2Low-Silicon Aluminum Alloys and Magnesium Alloys Si <12.2%(2)
-
N4Copper, Brass, Zinc-based on machinability index range of 70-100(2)
-
N5Nylon, Plastics, Rubbers, Phenolics, Resins, Fiberglass(2)
-
N7MMC's(2)
-
Applications
Applications
-
Boring (2)
-
Facing (2)
-
Profiling (2)
-
Turning (2)
Cutting Condition
Cutting Condition
-
Lightly Interrupted Cut (2)
-
Smooth Cut (2)
Corner Radius
Corner Radius
-
0.016 in (1)
-
0.031 in (1)
to
Corner Radius
Corner Radius
-
0.4 mm (1)
-
0.8 mm (1)
to
Application
Minimum Depth of Cut
Minimum Depth of Cut
Minimum Feed
Minimum Feed
Drilling Condition
Drilling Condition
-
Lightly Interrupted Cut (2)
-
Smooth Cut (2)
Insert Geometry
Cutting Edge Length
Cutting Edge Length
-
16.45 mm (1)
-
16.6 mm (1)
to
Cutting Edge Length
Cutting Edge Length
-
0.648 in (1)
-
0.654 in (1)
to
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Displaying
1- 2
of 2 results
Metric
Inch
Show
Metric
Inch
| SAP Material Number | ISO Catalog Number | ANSI Catalog Number | Grade | [D] Insert IC Size | [D] Insert IC Size | [L10] Insert Cutting Edge Length | [L10] Insert Cutting Edge Length | [S] Insert Thickness | [S] Insert Thickness | [Rε] Corner Radius | [Rε] Corner Radius | [D1] Insert Hole Size | [D1] Insert Hole Size | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6846596 | VBGT160404AL | VBGT331AL | WU10HT | 9.5250 | .3750 | 16.6060 | .6538 | 4.7600 | .1875 | 0.4000 | .0156 | 4.4000 | .1732 |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
List price:
C$37.65
/each
Your price:
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 6846597 | VBGT160408AL | VBGT332AL | WU10HT | 9.5250 | .3750 | 16.4610 | .6481 | 4.7620 | .1875 | 0.8000 | .0312 | 4.4000 | .1732 |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
List price:
C$37.65
/each
Your price:
Qty
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
List price:
Discount: %
Replacement
This item is no longer available
Replacement Product Please contact customer service for assistance
Replacement Product Please contact customer service for assistance
Qty
Sold in pkg. of
Grades
-
WU10HT
A hard, low binder content, unalloyed WC/Co fine-grained uncoated grade. Exceptional edge wear resistance combined with very high strength for machining titanium, cast irons, austenitic stainless steels, non-ferrous metals, non-metals, and most high-temperature alloys. Superior thermal deformation and depth-of-cut notch resistance. The grain structure is well controlled for minimal pits and flaws, which contributes to long, reliable service.
N Non-Ferrous
