4-Edged, 90° Shoulder Mills

VSM490 is a 4-edged, double-sided roughing shoulder mill with embedded finishing capabilities. This shoulder mill, with four insert geometries to cover applications in every material group (steel, cast iron, stainless steel, titanium, aluminum) produces a best-in-class wall finish in axial step-down jobs.

WIDIA All-Star-Logo CMYK png

VSM490 is an All-Star tool.

Order tools with same-day shipping with All-Star! Learn more about All-Star.

Four insert geometries for all material groups in shoulder milling applications

-ALP

VSM490-10 AL Geometry Insert

For non-ferrous materials.

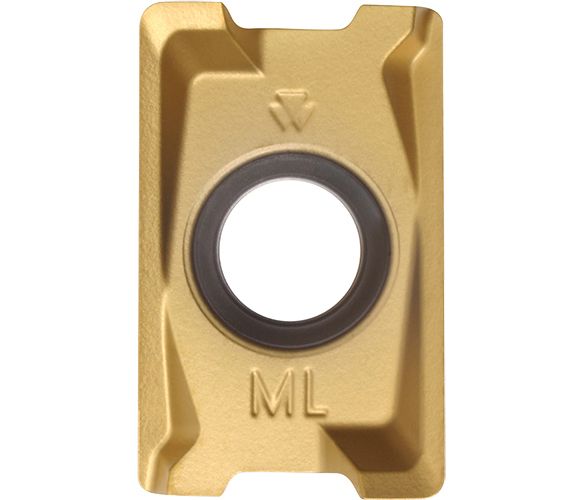

-ML

NX part: m_art_template

First choice for stainless steel, light machining, and finishing jobs.

-MM

NX part: m_art_template

First choice for general purpose in all material groups.

-MH

NX part: Cutter_template

First choice for HPC roughing cast iron. Strongest edge protection with additional margins.




VSM490-10 Features

  • Ap1 max = 10mm
  • Screw-on end mills: 16-32mm
  • Cylindrical end mills:16-25mm
  • Shell mills: 40-125mm
  • Weldon end mills: 16-32mm
  • Perfect fit for taper 40 spindles



VSM490-15 Features

  • Ap1 max = 15mm
  • Screw-on end mills: 25-35mm
  • Cylindrical end mills:16-32mm
  • Shell mills: 40-160mm
  • Weldon end mills: 25-40mm
  • Perfect fit for taper 50 spindles
Select Filters
Filters
Filters
Filters
View filters in
Metric
Inch
Key Filters
Workpiece Material
Workpiece Material
  • P Steel (210)
    • P0
      Low-Carbon Steels, Long Chipping C < .25%; <125 HB; <530 N/mm^2 UTS
      (197)
    • P1
      Low-Carbon Steels, Short Chipping C < .25%; <125 HB; <530 N/mm^2 UTS
      (210)
    • P2
      Medium and High Carbon Steels C < .25%; <220 HB; <25 HRC; >530 N/mm^2 UTS
      (210)
    • P3
      Alloy Steels & Tool Steels C > .25%; <330 HB; <35 HRC; 600-850 N/mm^2 UTS
      (210)
    • P4
      Alloy Steels & Tool Steels C > .25%; 350-420 HB; 35-43 HRC; 850-1400 N/mm^2 UTS
      (210)
    • P5
      Ferritic, Martensitic, and PH Stainless Steels <330 HB; <35 HRC; 600-900 N/mm^2 UTS
      (210)
    • P6
      High Strength Ferritic, Martensitic, and PH Stainless Steels 350-450 HB; 35-43 HRC; 900-2400 N/mm^2 UTS
      (210)
  • M Stainless Steel (210)
    • M1
      Austenitic Stainless Steel 130-200 HB; <600 N/mm^2 UTS
      (210)
    • M2
      High Strength Austenitic Stainless and Cast Stainless Steels 150-230 HB; <25 HRC; >600 N/mm^2 UTS
      (210)
    • M3
      Duplex Stainless Steel 135-275 HB; <30 HRC; 500-1200 N/mm^2 UTS
      (210)
  • K Cast Iron (196)
    • K1
      Gray Cast Iron 120-290 HB; <32 HRC; 125-500 N/mm^2 UTS
      (196)
    • K2
      Low and Medium Strength CGI and Ductile Irons 130-260 HB; <28 HRC; <600 N/mm^2 UTS
      (196)
    • K3
      High Strength Ductile and Austempered Ductile Iron 180-350 HB; <43 HRC; >600 N/mm^2 UTS
      (196)
  • N Non-Ferrous Materials (163)
    • N1
      Wrought Aluminum
      (163)
    • N2
      Low-Silicon Aluminum Alloys and Magnesium Alloys Si <12.2%
      (163)
    • N3
      High-Silicon Aluminum Alloys Si >12.2%
      (163)
  • S High-Temp Alloys (210)
    • S1
      Iron-Based, Heat-Resistant Alloys 160-260 HB; 25-48 HRC; 500-1200 N/mm^2 UTS
      (202)
    • S2
      Cobalt-Based, Heat-Resistant Alloys 250-450 HB; 25-48 HRC; 1000-1450 N/mm^2 UTS
      (202)
    • S3
      Nickel-Based, Heat Resistant Alloys 160-450 HB; <48 HRC; 600-1700 N/mm^2 UTS
      (202)
    • S4
      Titanium and Titanium Alloys 300-400 HB; 33-43 HRC; 900-1600 N/mm^2 UTS
      (210)
  • H Hardened Materials (168)
    • H1
      Hardened Materials 44-48 HRC
      (168)
Select All Star
  • CN (75)
  • DE (150)
  • GB (33)
  • IN (23)
  • SG (58)
  • US (52)
Applications
Applications
  • Face Milling Face Milling (75)
  • Pocket Pocket (22)
  • Shoulder Bottom Shoulder Shoulder Bottom Shoulder (53)
  • Shoulder Milling Shoulder Milling (75)
  • Shoulder Roughing Shoulder Roughing (75)
  • Shoulder Square End Shoulder Square End (75)
  • Slot Milling Slot Milling (22)
  • Slot Square End Slot Square End (22)
Cutting Diameter
Cutting Diameter
  • 0.625 in (3)
  • 0.63 in (4)
  • 0.709 in (1)
  • 0.75 in (5)
  • 0.787 in (6)
  • 0.866 in (1)
  • 0.984 in (12)
  • 1.0 in (10)
  • 1.102 in (1)
  • 1.25 in (11)
  • 1.26 in (15)
  • 1.379 in (1)
  • 1.5 in (9)
  • 1.575 in (6)
  • 1.969 in (6)
  • 2.0 in (5)
  • 2.48 in (6)
  • 2.5 in (6)
  • 3.0 in (5)
  • 3.15 in (10)
  • 3.938 in (6)
  • 4.0 in (4)
  • 4.921 in (6)
  • 5.0 in (4)
  • 6.0 in (1)
  • 6.299 in (2)
Cutting Diameter Min to Cutting Diameter Max
Cutting Diameter
Cutting Diameter
  • 15.875 mm (3)
  • 16.0 mm (4)
  • 18.0 mm (1)
  • 19.05 mm (5)
  • 20.0 mm (6)
  • 22.0 mm (1)
  • 25.0 mm (12)
  • 25.401 mm (10)
  • 28.0 mm (1)
  • 31.75 mm (11)
  • 32.0 mm (15)
  • 35.0 mm (1)
  • 38.1 mm (9)
  • 40.0 mm (6)
  • 50.0 mm (6)
  • 50.801 mm (5)
  • 63.0 mm (6)
  • 63.5 mm (6)
  • 76.2 mm (5)
  • 80.0 mm (10)
  • 100.0 mm (6)
  • 101.601 mm (4)
  • 125.0 mm (6)
  • 127.0 mm (4)
  • 152.4 mm (1)
  • 160.0 mm (2)
Cutting Diameter Min to Cutting Diameter Max
Cutting Length
Cutting Length
  • 10.0 mm (91)
  • 15.0 mm (53)
  • 15.5 mm (2)
Cutting Length Min to Cutting Length Max
Cutting Length
Cutting Length
  • 0.394 in (91)
  • 0.591 in (53)
  • 0.61 in (2)
Cutting Length Min to Cutting Length Max
Reach
Reach
  • 0.845 in (1)
  • 0.85 in (1)
  • 0.9 in (1)
  • 0.984 in (12)
  • 1.0 in (1)
  • 1.102 in (7)
  • 1.22 in (4)
  • 1.25 in (4)
  • 1.26 in (7)
  • 1.47 in (3)
  • 1.575 in (27)
  • 1.577 in (9)
  • 1.6 in (5)
  • 1.693 in (5)
  • 1.72 in (2)
  • 1.75 in (9)
  • 1.901 in (2)
  • 1.929 in (2)
  • 1.969 in (20)
  • 2.0 in (5)
  • 2.221 in (1)
  • 2.244 in (1)
  • 2.25 in (4)
  • 2.38 in (5)
  • 2.48 in (8)
Reach Min to Reach Max
Reach
Reach
  • 21.451 mm (1)
  • 21.6 mm (1)
  • 22.85 mm (1)
  • 25.0 mm (12)
  • 25.401 mm (1)
  • 28.0 mm (7)
  • 31.0 mm (4)
  • 31.75 mm (4)
  • 32.0 mm (7)
  • 37.35 mm (3)
  • 40.0 mm (27)
  • 40.051 mm (9)
  • 40.651 mm (5)
  • 43.0 mm (5)
  • 43.7 mm (2)
  • 44.45 mm (9)
  • 48.25 mm (2)
  • 49.0 mm (2)
  • 50.0 mm (20)
  • 50.801 mm (5)
  • 56.401 mm (1)
  • 57.0 mm (1)
  • 57.151 mm (4)
  • 60.45 mm (5)
  • 63.0 mm (8)
Reach Min to Reach Max
Tool Cutting Edge Angle
Tool Cutting Edge Angle
  • 90.0 (146)
Tool Cutting Edge Angle Min to Tool Cutting Edge Angle Max
Connection Style
Connection Style
  • A-Socket Head Cap Screw (68)
  • B-Cutter Retention Screw (1)
  • SHCS or RetScrw Or BoltCircle (1)
  • Screw-On Connection (9)
  • Straight-Cylindrical (40)
  • Weldon (27)
Number of Flutes
Number of Flutes
  • 10 (6)
  • 11 (2)
  • 12 (6)
  • 14 (2)
  • 2 (19)
  • 3 (24)
  • 4 (27)
  • 5 (21)
  • 6 (10)
  • 7 (11)
  • 8 (9)
  • 9 (9)
Internal Coolant Capability
Internal Coolant Capability
Corner configuration
Corner Radius
Corner Radius
  • 0.016 in (160)
  • 0.031 in (192)
  • 0.047 in (158)
  • 0.063 in (160)
  • 0.079 in (59)
Corner Radius Min to Corner Radius Max
Corner Radius
Corner Radius
  • 0.4 mm (160)
  • 0.8 mm (192)
  • 1.201 mm (158)
  • 1.6 mm (160)
  • 2.0 mm (59)
Corner Radius Min to Corner Radius Max
Application
Grade Of Cutting Tool
Grade Of Cutting Tool
  • WK15CM (156)
  • WK15PM (156)
  • WN25PM (150)
  • WP25PM (166)
  • WP35CM (154)
  • WP40PM (160)
  • WS40PM (159)
  • WU10PM (93)
  • WU35PM (64)
Hand Of Tool
Hand Of Tool
  • R (146)
Wiper Insert
Wiper Insert
  • N (90)
Front-End
Neck Diameter
Neck Diameter
  • 0.61 in (1)
  • 0.728 in (5)
  • 0.768 in (3)
  • 0.929 in (1)
  • 0.965 in (8)
  • 0.98 in (3)
  • 0.984 in (1)
  • 1.22 in (3)
  • 1.228 in (2)
  • 1.24 in (1)
Neck Diameter Min to Neck Diameter Max
Neck Diameter
Neck Diameter
  • 15.5 mm (1)
  • 18.5 mm (5)
  • 19.5 mm (3)
  • 23.6 mm (1)
  • 24.5 mm (8)
  • 24.901 mm (3)
  • 25.0 mm (1)
  • 31.0 mm (3)
  • 31.201 mm (2)
  • 31.5 mm (1)
Neck Diameter Min to Neck Diameter Max
Center Cutting
Center Cutting
Insert Geometry
Shape
Shape
  • X-RECTANGLE MILL 4 90 (90)
Cutting Edge Length
Cutting Edge Length
  • 10.8 mm (16)
  • 10.826 mm (16)
  • 15.3 mm (58)
Cutting Edge Length Min to Cutting Edge Length Max
Cutting Edge Length
Cutting Edge Length
  • 0.425 in (16)
  • 0.426 in (16)
  • 0.602 in (58)
Cutting Edge Length Min to Cutting Edge Length Max
Chip Breaker CBMD
Chip Breaker CBMD
  • ALP (4)
  • MH (14)
  • ML (20)
  • MM (52)
Cutting Tool Material
Cutting Tool Material
  • H W (90)
Tolerance Class
Tolerance Class
  • G (46)
  • P (44)
Back-End
Connection Type
Connection Type
  • CYLINDRICAL (67)
  • SCREW-ON (9)
  • SHELL MILL (70)
Back-End Diameter
Back-End Diameter
  • 12.701 mm (1)
  • 13.0 mm (1)
  • 15.875 mm (3)
  • 16.0 mm (9)
  • 18.0 mm (1)
  • 19.05 mm (23)
  • 20.0 mm (8)
  • 21.0 mm (2)
  • 22.0 mm (12)
  • 25.0 mm (15)
  • 25.401 mm (21)
  • 27.0 mm (6)
  • 29.0 mm (5)
  • 31.75 mm (12)
  • 32.0 mm (10)
  • 38.1 mm (10)
  • 40.0 mm (5)
  • 50.801 mm (2)
Back-End Diameter Min to Back-End Diameter Max
Back-End Diameter
Back-End Diameter
  • 0.5 in (1)
  • 0.512 in (1)
  • 0.625 in (3)
  • 0.63 in (9)
  • 0.709 in (1)
  • 0.75 in (23)
  • 0.787 in (8)
  • 0.828 in (2)
  • 0.866 in (12)
  • 0.984 in (15)
  • 1.0 in (21)
  • 1.063 in (6)
  • 1.143 in (5)
  • 1.25 in (12)
  • 1.26 in (10)
  • 1.5 in (10)
  • 1.575 in (5)
  • 2.0 in (2)
Back-End Diameter Min to Back-End Diameter Max
No filters matching ""
Narrow by category:
View Products in
Metric
Inch

ORIGINAL PRODUCT

VSM490-15 • Shell Mills • Inch VSM490-15 • Shell Mills • Inch

Shell Mills • Inch
(13 Products)
  • Face MillingFace Milling
  • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
  • Slotting: Square EndSlotting: Square End
  • PocketingPocketing
  • Milling - Through CoolantMilling - Through Coolant
  • Milling - Side and FaceMilling - Side and Face
View Products
SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice [D1] Effective Cutting Diameter [D1] Effective Cutting Diameter [D] Adapter / Shank / Bore Diameter [D] Adapter / Shank / Bore Diameter [D6] Hub Diameter [D6] Hub Diameter [L] Overall Length [L] Overall Length [AP1MAX] 1st Maximum Cutting Depth [AP1MAX] 1st Maximum Cutting Depth Number of Inserts Max RPM Coolant Supply Weight Pounds
5710593 VSM490D150Z05S050XN15 VSM490D150Z05S050XN15   38.1000 1.500 12.7 .5 36.1000 1.420 40.0050 1.575 15.0000 .5910 5 19500 Y 0.43
    List price:
    C$577.19 /each
    Your price:
    5710594 VSM490D200Z05S075XN15 VSM490D200Z05S075XN15   50.8000 2.000 19.05 .75 44.4500 1.750 40.0050 1.575 15.0000 .5910 5 16100 Y 0.78
      List price:
      C$621.23 /each
      Your price:
      5710595 VSM490D200Z06S075XN15 VSM490D200Z06S075XN15   50.8000 2.000 19.05 .75 44.4500 1.750 40.0050 1.575 15.0000 .5910 6 16100 Y 0.77
        List price:
        C$683.37 /each
        Your price:
        5710598 VSM490D300Z07S100XN15 VSM490D300Z07S100XN15   76.2000 3.000 25.4 1.0 55.6260 2.190 44.4500 1.750 15.0000 .5910 7 12700 Y 1.83
          List price:
          C$821.33 /each
          Your price:
          5873106 VSM490D400Z08S150XN15 VSM490D400Z08S150XN15   101.6000 4.000 38.1 1.5 85.8500 3.380 50.8000 2.000 15.0000 .5910 8 10800 Y 3.26
            List price:
            C$1,013.01 /each
            Your price:
            5873109 VSM490D600Z10S200XN15 VSM490D600Z10S200XN15   152.4000 6.000 50.8 2.0 123.8250 4.875 60.4500 2.380 15.0000 .5910 10 8600 Y 10.45
              List price:
              C$1,472.87 /each
              Your price:
              List price:
              Discount: %
              Your price:
              Replacement This item is no longer available
              Replacement Product Please contact customer service for assistance

              ORIGINAL PRODUCT

              VSM490-15 • Weldon® End Mills • Inch VSM490-15 • Weldon® End Mills • Inch

              Weldon® End Mills • Inch
              (5 Products)
              • Face MillingFace Milling
              • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
              • Slotting: Square EndSlotting: Square End
              • PocketingPocketing
              • Milling - Through CoolantMilling - Through Coolant
              • Shank - Cylindrical WeldonShank - Cylindrical Weldon
              View Products
              SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice [D1] Effective Cutting Diameter [D1] Effective Cutting Diameter [D] Adapter / Shank / Bore Diameter [D] Adapter / Shank / Bore Diameter [L] Overall Length [L] Overall Length [L2] Head Length [L2] Head Length [AP1MAX] 1st Maximum Cutting Depth [AP1MAX] 1st Maximum Cutting Depth Number of Inserts Max RPM Coolant Supply Weight Pounds
              5873069 VSM490D100Z02W075XN15 VSM490D100Z02W075XN15   25.4000 1.000 19.05 .75 96.0000 3.780 44.4500 1.750 15.0000 .5910 2 26300 Y 0.40
                List price:
                C$427.20 /each
                Your price:
                5710590 VSM490D100Z02W100XN15 VSM490D100Z02W100XN15   25.4000 1.000 25.4 1.0 102.3600 4.030 44.4500 1.750 15.0000 .5910 2 26300 Y 0.70
                  List price:
                  C$419.03 /each
                  Your price:
                  5710591 VSM490D125Z03W100XN15 VSM490D125Z03W100XN15   31.7500 1.250 25.4 1.0 115.0600 4.530 57.1500 2.250 15.0000 .5910 3 22100 Y 0.88
                    List price:
                    C$445.15 /each
                    Your price:
                    5873070 VSM490D150Z03W125XN15 VSM490D150Z03W125XN15   38.1000 1.500 31.75 1.25 115.0620 4.530 57.0000 2.250 15.0000 .5910 3 19500 Y 1.41
                      List price:
                      C$509.50 /each
                      Your price:
                      5710592 VSM490D150Z04W125XN15 VSM490D150Z04W125XN15   38.1000 1.500 31.75 1.25 115.0620 4.530 57.1500 2.250 15.0000 .5910 4 19500 Y 1.42
                        List price:
                        C$536.33 /each
                        Your price:
                        List price:
                        Discount: %
                        Your price:
                        Replacement This item is no longer available
                        Replacement Product Please contact customer service for assistance

                        ORIGINAL PRODUCT

                        VSM490™-15 • Shell Mills • Metric VSM490™-15 • Shell Mills • Metric

                        Shell Mills • Metric
                        (16 Products)
                        • Face MillingFace Milling
                        • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
                        • Slotting: Square EndSlotting: Square End
                        • PocketingPocketing
                        • Milling - Through CoolantMilling - Through Coolant
                        • Milling - Side and FaceMilling - Side and Face
                        View Products
                        SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice [D1] Effective Cutting Diameter [D1] Effective Cutting Diameter [D] Adapter / Shank / Bore Diameter [D] Adapter / Shank / Bore Diameter [D6] Hub Diameter [D6] Hub Diameter [L] Overall Length [L] Overall Length [AP1MAX] 1st Maximum Cutting Depth [AP1MAX] 1st Maximum Cutting Depth Number of Inserts Max RPM Coolant Supply Weight Kilograms
                        5710289 VSM490D040Z04S16XN15 VSM490D040Z04S16XN15   40.0000 1.575 16.0 .63 37.0000 1.457 40.0000 1.580 15.0000 .5910 4 18800 Y 0.20
                          List price:
                          C$654.44 /each
                          Your price:
                          5710521 VSM490D050Z05S22XN15 VSM490D050Z05S22XN15   50.0000 1.969 22.0 .867 42.0000 1.654 40.0000 1.580 15.0000 .5910 5 16300 Y 0.28
                            List price:
                            C$733.46 /each
                            Your price:
                            5710523 VSM490D063Z06S22XN15 VSM490D063Z06S22XN15   63.0000 2.480 22.0 .867 50.0000 1.969 40.0000 1.575 15.0000 .5910 6 14200 Y 0.49
                              List price:
                              C$867.33 /each
                              Your price:
                              5710524 VSM490D063Z07S22XN15 VSM490D063Z07S22XN15   63.0000 2.480 22.0 .867 50.0000 1.969 40.0000 1.575 15.0000 .5910 7 14200 Y 0.48
                                List price:
                                C$950.07 /each
                                Your price:
                                5710525 VSM490D080Z07S27XN15 VSM490D080Z07S27XN15   80.0000 3.150 27.0 1.064 60.0000 2.362 50.0000 1.969 15.0000 .5910 7 12300 Y 1.03
                                  List price:
                                  C$1,009.56 /each
                                  Your price:
                                  5710526 VSM490D100Z08S32XN15 VSM490D100Z08S32XN15   100.0000 3.937 32.0 1.26 80.0000 3.150 50.0000 1.969 15.0000 .5910 8 10900 Y 1.61
                                    List price:
                                    C$1,169.46 /each
                                    Your price:
                                    List price:
                                    Discount: %
                                    Your price:
                                    Replacement This item is no longer available
                                    Replacement Product Please contact customer service for assistance

                                    ORIGINAL PRODUCT

                                    VSM490™-15 • Weldon® End Mills • Metric VSM490™-15 • Weldon® End Mills • Metric

                                    Weldon® End Mills • Metric
                                    (3 Products)
                                    • PocketingPocketing
                                    • Face MillingFace Milling
                                    • Slotting: Square EndSlotting: Square End
                                    • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
                                    • Shank - Cylindrical WeldonShank - Cylindrical Weldon
                                    • Milling - Through CoolantMilling - Through Coolant
                                    View Products
                                    SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice [D1] Effective Cutting Diameter [D1] Effective Cutting Diameter [D] Adapter / Shank / Bore Diameter [D] Adapter / Shank / Bore Diameter [L] Overall Length [L] Overall Length [L2] Head Length [L2] Head Length [AP1MAX] 1st Maximum Cutting Depth [AP1MAX] 1st Maximum Cutting Depth Number of Inserts Max RPM Coolant Supply Weight Kilograms
                                    5710285 VSM490D025Z02B25XN15 VSM490D025Z02B25XN15   25.0000 .9840 25.0 .984 89.0000 3.500 32.0000 1.260 15.0000 .5910 2 26700 Y 0.28
                                      List price:
                                      C$435.06 /each
                                      Your price:
                                      5710286 VSM490D032Z03B32XN15 VSM490D032Z03B32XN15   32.0000 1.260 32.0 1.26 111.0000 4.370 50.0000 1.970 15.0000 .5910 3 22000 Y 0.58
                                        List price:
                                        C$498.26 /each
                                        Your price:
                                        5873215 VSM490D040Z03B32XN15 VSM490D040Z03B32XN15   40.0000 1.575 32.0 1.26 111.0000 4.370 50.0000 1.969 15.0000 .5910 3 18800 Y 0.65
                                          List price:
                                          C$534.53 /each
                                          Your price:
