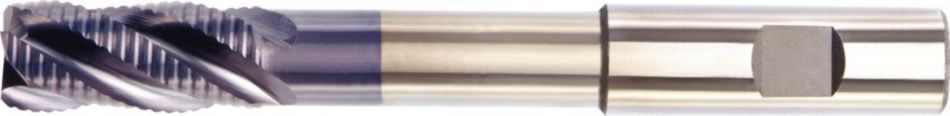

    HSS Roughers • Series 6TNR • Chamfer • Neck • Weldon® • Inch

    Series 6TNR

    Material Number2836081

    ISO Catalog IDTF6TNR19007ANSI Catalog IDTF6TNR19007

    HSS 6TNR Chamfer - Neck Weldon Shank - Inch - 2836087 - TF6TNR19007 - WIDIA
    HSS 6TNR Chamfer - Neck Weldon Shank - Inch - 2836087 - TF6TNR19007 - WIDIA
    HSS 6TNR Chamfer - Neck Weldon Shank - Inch - 2836087 - TF6TNR19007 - WIDIA
    Open expanded view
    HSS 6TNR Chamfer - Neck Weldon Shank - Inch - 2836087 - TF6TNR19007 - WIDIA
    HSS 6TNR Chamfer - Neck Weldon Shank - Inch - 2836087 - TF6TNR19007 - WIDIA
    Generic representation
    List Price
    /each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Ramping: BlankRamping: Blank
    • Slotting: Square EndSlotting: Square End
    • Corner Style: Corner ChamferCorner Style: Corner Chamfer
    • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
    • 3849138491
    • 3850338503
    • Tool Dimensions: Flute Configuration: X (variable)Tool Dimensions: Flute Configuration: X (variable)
    This export format is not yet supported for this category.

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

    Drawings for 2836081
    Metric
    Inch
    Material Number2836081
    ISO Catalog IDTF6TNR19007
    ANSI Catalog IDTF6TNR19007
    CoatingTiAlN
    Adapter Style Machine SideWeldon
    [L3] Usable Length101.6 mm
    [L3] Usable Length4 in
    [BCH] Corner Chamfer Width 1.2 mm
    [BCH] Corner Chamfer Width 0.047 in
    [D3] Neck Diameter 17.907 mm
    [D3] Neck Diameter 0.705 in
    [Z] Number of Flutes4
    [D1] Effective Cutting Diameter19.05 mm
    [D1] Effective Cutting Diameter0.75 in
    [D] Adapter / Shank / Bore Diameter19.05 mm
    [D] Adapter / Shank / Bore Diameter0.75 in
    [AP1MAX] 1st Maximum Cutting Depth41.275 mm
    [AP1MAX] 1st Maximum Cutting Depth1.625 in
    [L] Overall Length 158.75 mm
    [L] Overall Length 6.25 in
    See all Product Variants

    Uses and application

    • Ramping: BlankRamping: Blank
    • Slotting: Square EndSlotting: Square End
    • Corner Style: Corner ChamferCorner Style: Corner Chamfer
    • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
    • 3849138491
    • 3850338503
    • Tool Dimensions: Flute Configuration: X (variable)Tool Dimensions: Flute Configuration: X (variable)

    Features and benefits

    • Center cutting.
    • Chamfered profile.
    • Standard items listed. Additional styles and coatings made-to-order.
