    Retention Knobs

    Retention Knobs

    Material Number1026730

    ISO Catalog IDRK32114ANSI Catalog IDRK32114

    Retention Knob 1026730 - Kennametal
    Retention Knob 1026730 - Kennametal
    Open expanded view
    Retention Knob 1026730 - Kennametal
    Generic representation
    List Price
    C$45.47/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
      This export format is not yet supported for this category.

      Sending to {{cadTool}} in progress...

      Downloaded file will be available after import in the {{cadTool}} tool library.

      Metric
      Inch
      Material Number1026730
      ISO Catalog IDRK32114
      ANSI Catalog IDRK32114

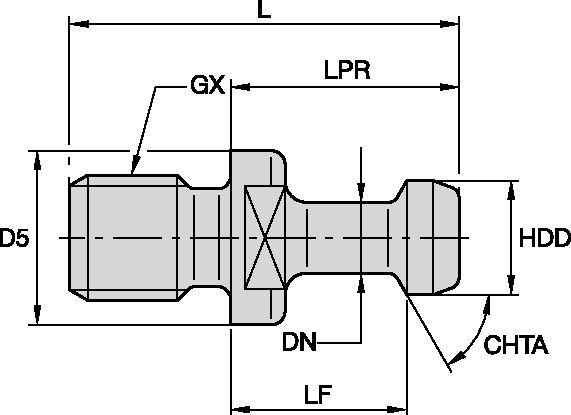

      Half Taper Angle [CHTA]45
      [D5] Body Diameter Machine Side22.936 mm
      [D5] Body Diameter Machine Side0.903 in
      [D3] Neck Diameter 9.957 mm
      [D3] Neck Diameter 0.392 in
      [GX] Connection Thread Size External5/8 - 11
      [HDD] Head Diameter 14.935 mm
      [HDD] Head Diameter 0.588 in
      [L] Overall Length 53.975 mm
      [L] Overall Length 2.125 in
      [LF] Functional Length 25.146 mm
      [LF] Functional Length 0.99 in
      [LPR] Protruding Length 32.156 mm
      [LPR] Protruding Length 1.266 in
      See all Product Variants
